The SQ Guide is a Digital Implant Guide System Optimized for The SQ Implant Fixture

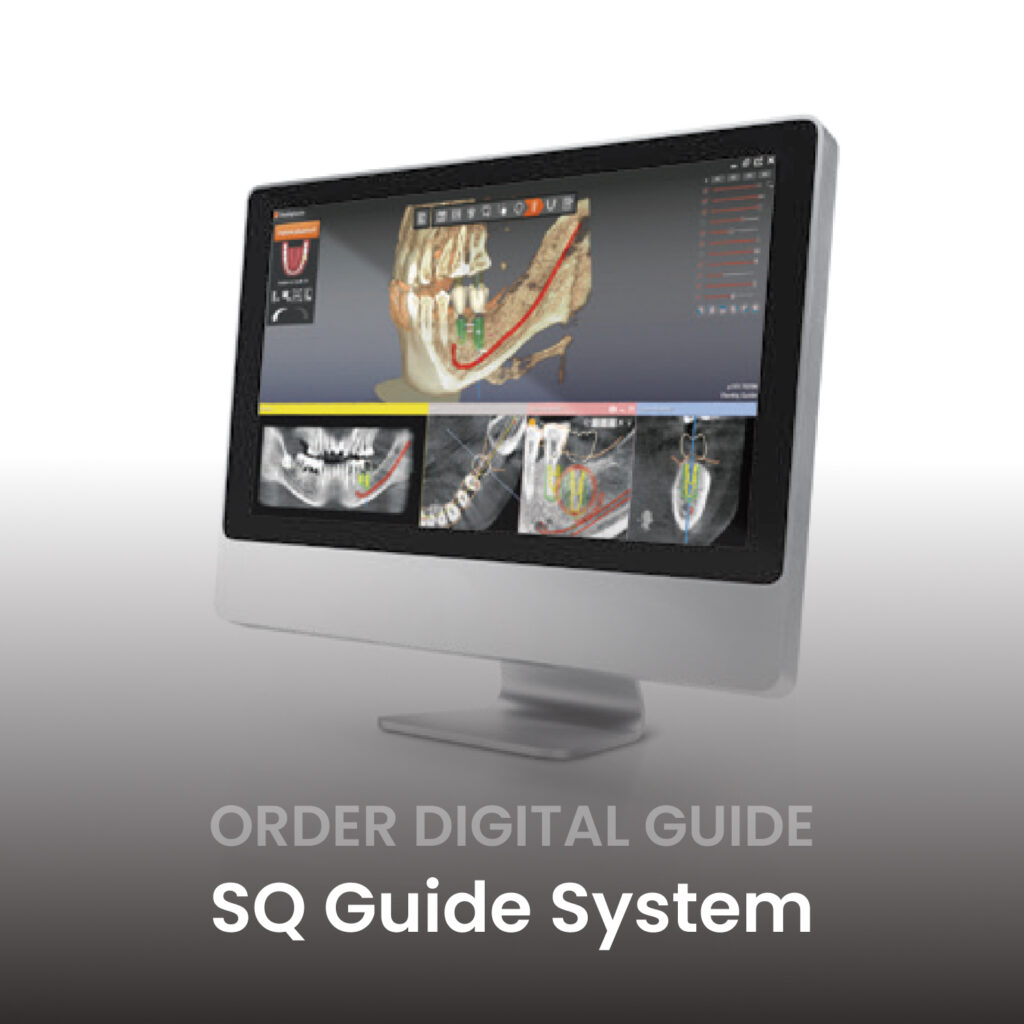

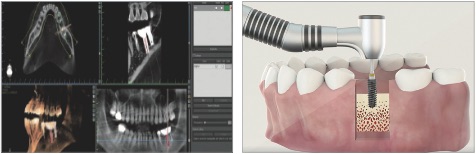

Place the implant in the correct position by virtually doing the implant placement through the software

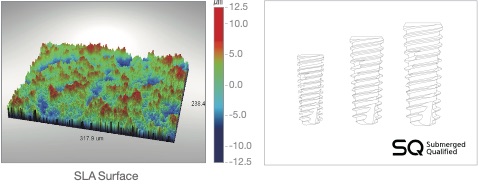

Computer guided implant placement for the SQ Implant that has the advanced SLA surface

SQ GUIDE is available with Dentiq Guide S/W or Implant Studio S/W

Chair-side production is possible with DENTIS Implant and sleeve library

Irrigation function added to prevent bone loss and bone heating

Using a metal sleeve helps prevent contamination of the surgical site by guide resin, which may occur during drilling

With the initial drill (F Ø3.5 STEP Drill), you can drill without slipping because of the side cutting function

Drilling can be performed with precision as the lower end of the trailing drill is anchored in the previously drilled site, while the upper end, or guide hole, is securely stabilized by the sleeve around the drill’s barrel

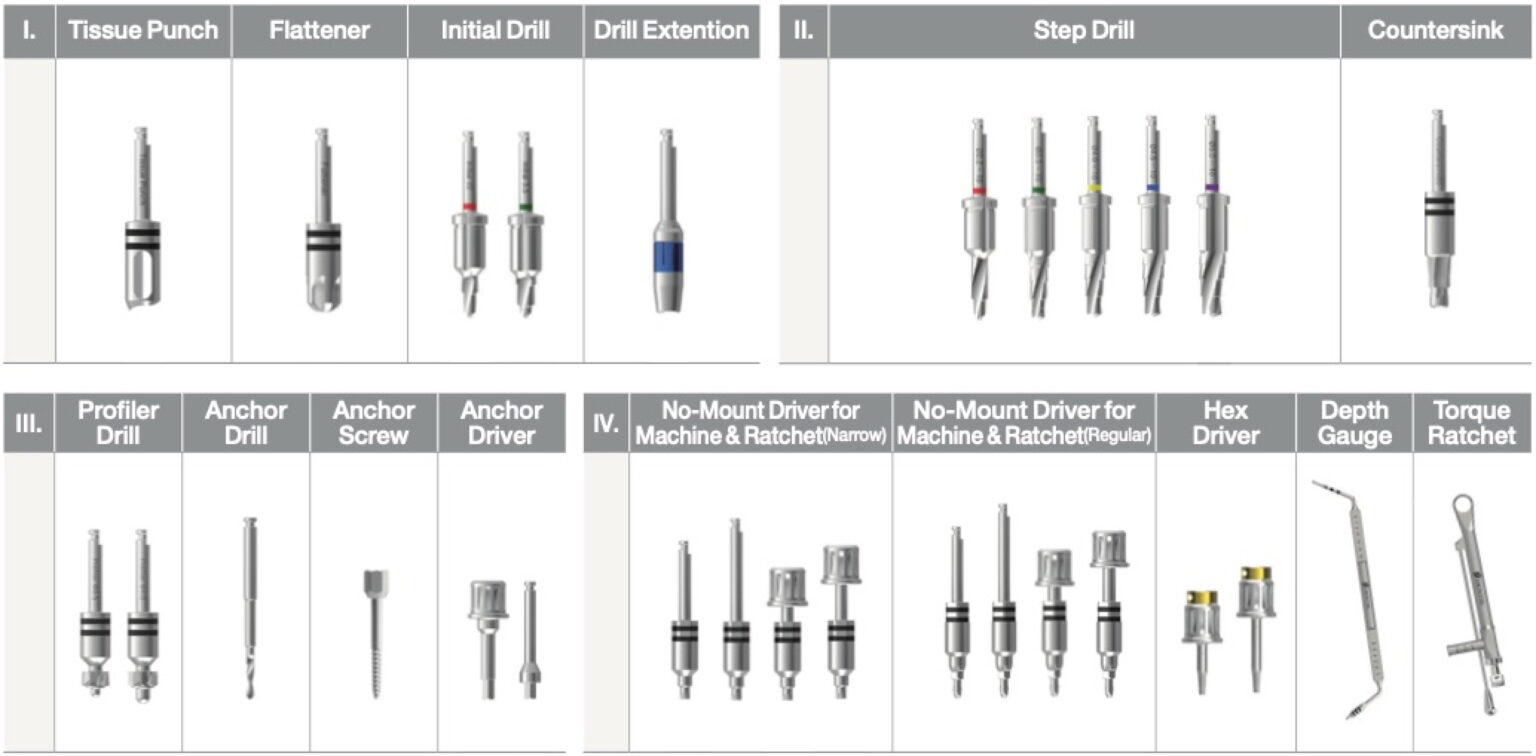

By adopting the multi-stage drill, the number of drills can be minimized and the operation can be performed quickly.

Prevents excessive installation torque when widening cortical bone (especially when the offset is 13mm)

Used to form holes that ensure precise orientation at the initial stage

Used for establishing diameter and length for fixture placement

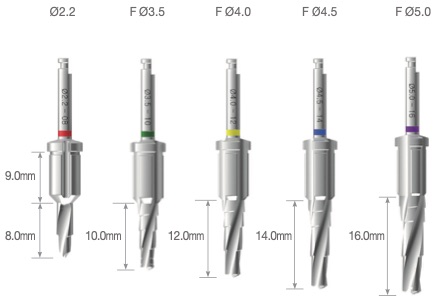

Improved cutting ability and slip prevention through multistep structure and side cutting design

8.0mm DSQGSTD 2208 DSQGSTD 3508 DSQGSTD 4008 DSQGSTD 4508 DSQGSTD 5008

10.0mm DSQGSTD 2210 DSQGSTD 3510 DSQGSTD 4010 DSQGSTD 4510 DSQGSTD 5010

12.0mm DSQGSTD 2212 DSQGSTD 3512 DSQGSTD 4012 DSQGSTD 4512 DSQGSTD 5012

14.0mm DSQGSTD 2214 DSQGSTD 3514 DSQGSTD 4014 DSQGSTD 4514 DSQGSTD 5014

16.0mm DSQGSTD 2216 DSQGSTD 3516 DSQGSTD 4016 DSQGSTD 4516 DSQGSTD 5016
