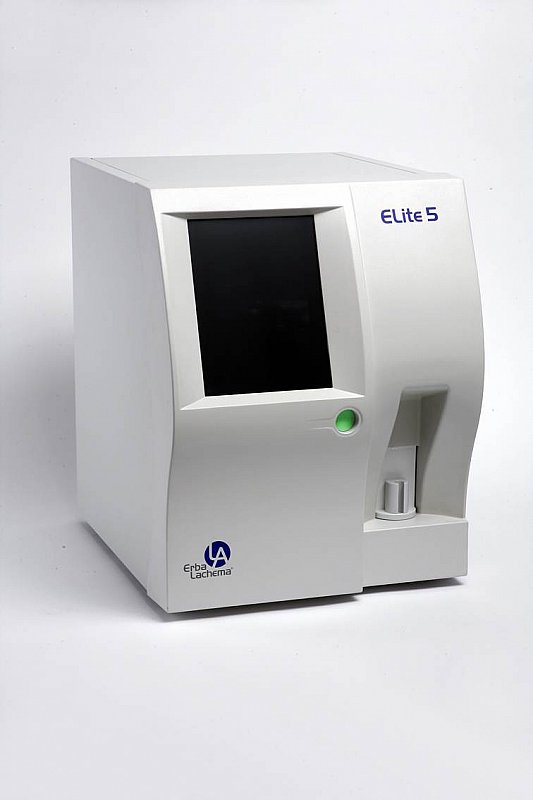

Clinical Hematology analyzer ELite 5
Advanced 5 Part Differential Hematology Analyzer
-Benefits :
Only 3 on-line reagents needed (Erba Dil-5P, Erba Lyse-5P, Erba Diff-5P), enviroment-friendly (cyanide free)
USB interface for support: Host computer, Keyboard, External printers, Upgrade control, Barcode reader (hand-held), SW, Data back-up, Hand-held barcode reader
Usage of standard electronic and mechanic components
Aperture made in technical ruby
Autosampler with built-in Barcode reader and mixer (up to 100 sample tubes in 10 racks), built-in cap detector to determine presence of sample tube cap
-Easy handling :
Full colour LCD touch-screen with high contrast ratio
Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)
User-friendly multilingual operating menu
Sample rotor, ensuring safe and easy sampling
Low-maintenance needed
-Principles:
Electrical impedance method with advanced SRV technology
Diode based LASER Technology with hydro-dynamic focusing for 5 part differential
Photometry – LED based technology for measurement of hemoglobine
Parameters:26 parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 2 scatter-grams – WBC 5 part differential & WBC/Baso + 2 histograms – RBC & PLT
Throughput:60 tests / hour
Sample volume:110 µl of whole blood in open & closed mode, 25 µl in small sample mode (optional)
Chambers:Dual chamber advanced system for higher accuracy & precision
Reagent System:3 Reagent System – Environment-friendly reagents
Erba Dil-5P
Erba Lyse-5P
Erba Diff-5P
Clean Modes:
High voltage pulses on aperture
Chemical cleaning of the aperture using Erba Hypoclean CC reagent
Back-flush using high-pressure
Choice of languages:English, French, German, Czech, Indonesian, Portuguese, Russian, Spanish
Data capacity:100 000 results with all scatter-grams & histograms
Safety:
Sampling using advanced sample holder
Optional auto sampler (up to 100 samples in 10 racks)
Peripheral ports:USB interface (4) & PS/2
Support for host computer
Support for USB or PS/2 keyboard (optional)
Support for external printers (hp DeskJet, LaserJet)
Support for hand-held barcode reader (optional)
Data back-up method:USB mass storage device
Software upgrade method:Via USB port (using USB mass storage)
User interface & Display:
Full colour LCD touch-screen with high contrast ratio
Status LED
Dimensions (W x D x H):410 mm x 465 mm x 515 mm
Net weight:35 kg
Dimensions of autosampler (W x D x H):190 mm x 380 mm x 322 mm
Weight of autosampler:10 kg
