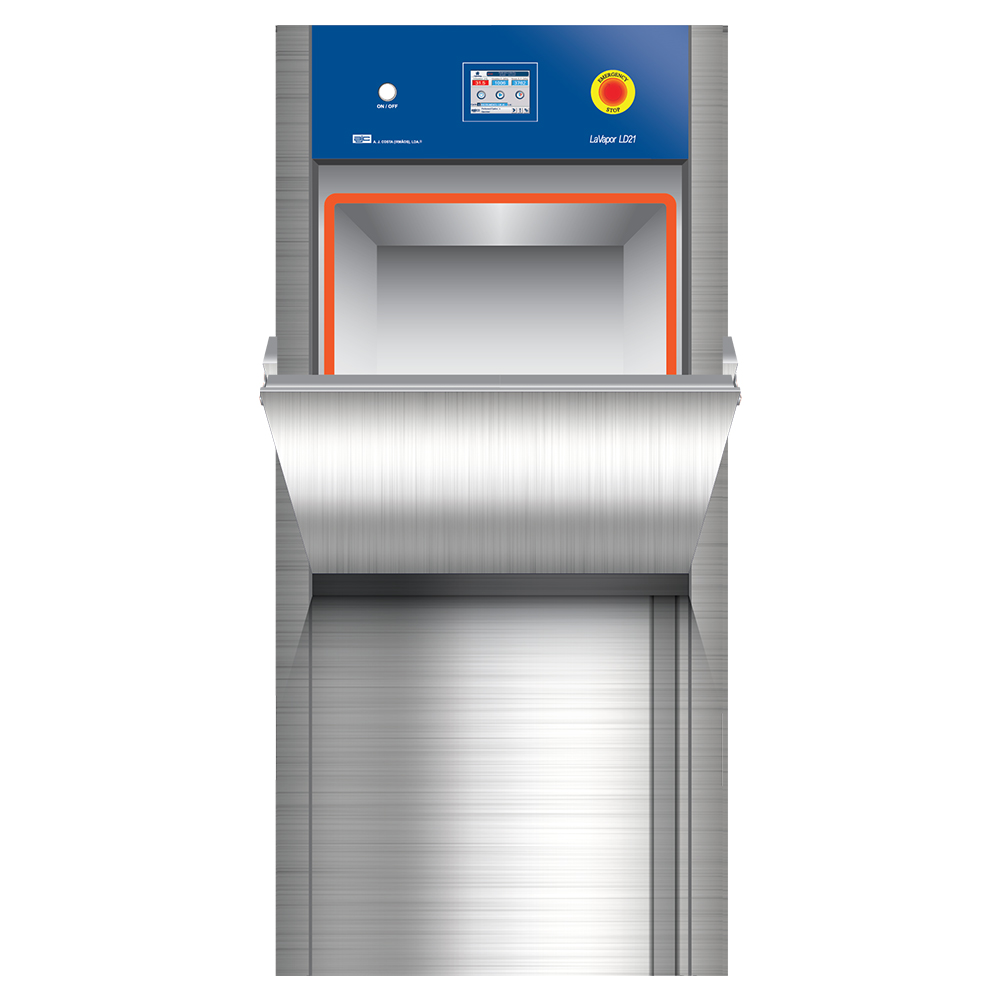

LAVAPOR LD 21
Features :
-Fully automatic door opening and closing;
-Automatic bedpan content disposal;
-Easy operator-interface;
-Cold and hot water washing, followed by steam thermal disinfection;
-Large washing capacity;
-Utensils pre-washing;
-Cycle command by integrated micro-computer;
-Detergent dosing pump;
-Safety-stop system for door obstruction;
-Water and energy consumption optimization;
-Washing chamber and body in AISI 304 stainless steel;
-Equipment fully built in stainless steel, free of ferrous materials.
Accessories:
-Accessory for saddle bedpans;
-Accessory for slipper bedpans;
-Three support accessories for urine and suction bottles;
-Support basket for washing and disinfecting small utensils;
-Dryer-dedicated pump (opcional).
Programs/Cycles:
Washing of urine / suction bottles:
– Normal;
– Economic;
– Intensive.
External network connections:
Network Features
ELECTRIC 3 ~ + N + G 400/230 V 50 Hz 13 kW
COLD WATER Pressure max. 6 Bar
Pressure mín. 3 Bar
3/4” BSP connection
HOT WATER(max.65ºC) Max. pressure 6 Bar
Min. pressure: 3 Bar
3/4” BSP connection
DRAIN Material resistant to 50 ºC
110 mm connection
