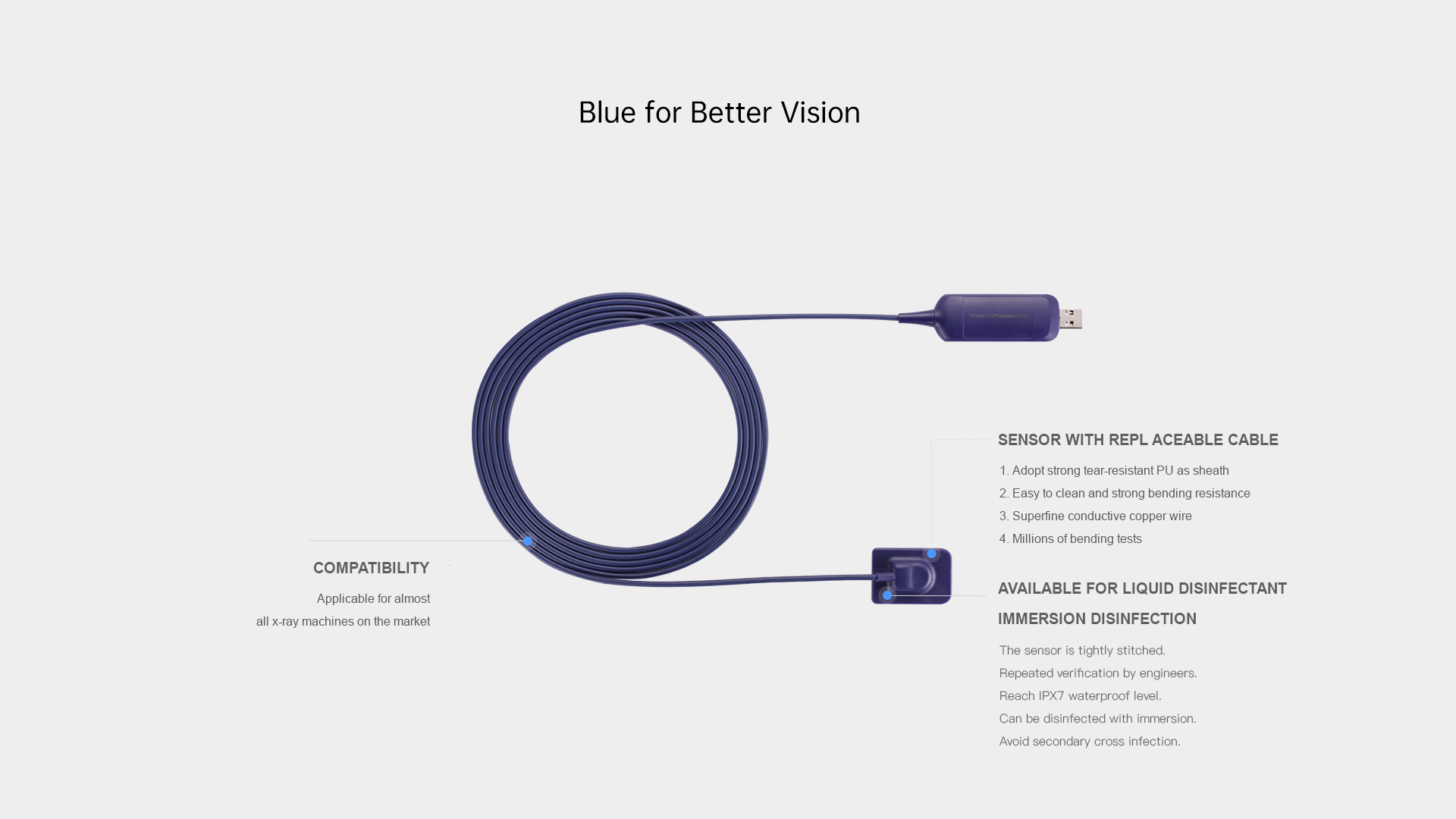

Blue for Better vision
COMPATIBILITY
Applicable for almost all x-ray machines on the market
SENSOR WITH REPL ACEABLE CABLE
1. Adopt strong tear-resistant PU as sheath
2. Easy to clean and strong bending resistance
3. Superfine conductive copper wire
4. Millions of bending tests
AVAILABLE FOR LIQUID DISINFECTANT
IMMERSION DISINFECTION
The sensor is tightly stitched.
Repeated verification by engineers.
Reach IPX7 waterproof level.
Can be disinfected with immersion.
Avoid secondary cross infection.
Product Parameters
Technical Specification
-Model :Size 1
Mechanical Dimensions:25.03X38.53X4.5
Effective Imaging area:20X30
Pixel Matrix:(1.5M) 1000X1500
-Model :Size 1.5
Mechanical Dimensions:29.2X43.5X4.5
Effective Imaging area:24X33
Pixel Matrix:(1.89M) 1200X1650
-Model : Size 2
Mechanical Dimensions:31.62X45.0X4.5
Effective Imaging area:26X36
Pixel Matrix:(2.34M) 1300X1800
-Spatial Resolution: 25lp/mm
-Grayscale: 16 bits, level 65535
-Protection Level: Ip68 for Soak disinfection
-Operation System: Windows 7 and above, 32/64bit
-Detector Type: APS CMOS
-Scintillator: Csl
-Line Length: Standard 3m
-Pixel Size: 20 m
