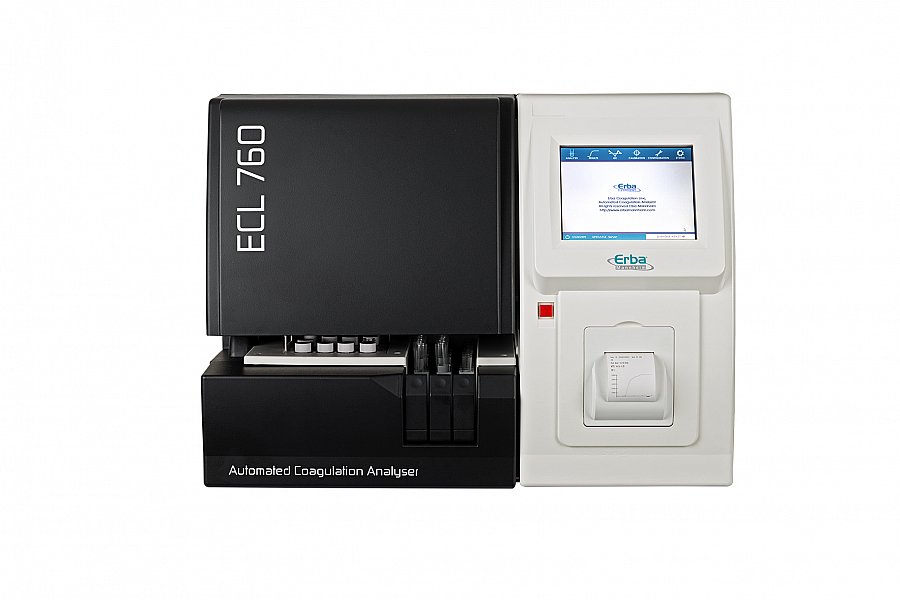

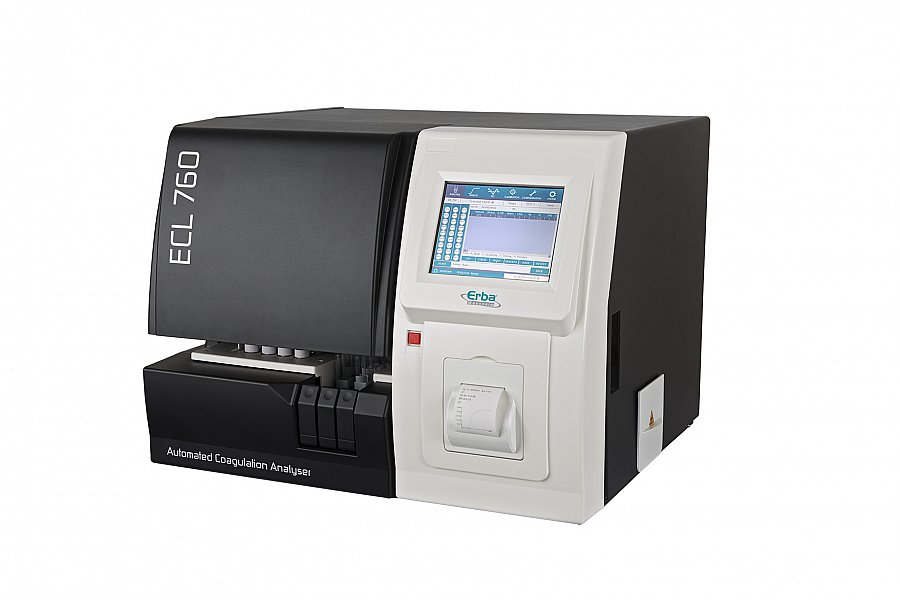

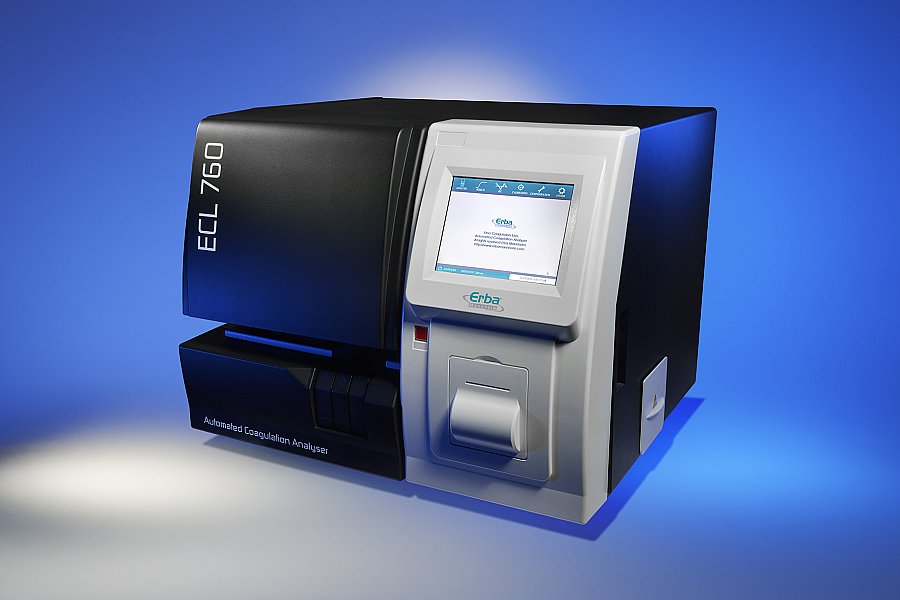

Clinical ECL 760 Fully Automated Coagulation Analyser
Advanced random access system for clotting, immunologic and chromogenic assays for routine and STAT testing.
Simple, desktop analyser
Bi-directional LIS communication
Barcode reader for sample identification
60 PT tests / hour
Colour touch screen and the possibility to connect an external keyboard, a mouse and a printer
-Functional characteristics:
7 measuring channels
8 incubation positions at 37°C +/- 0.2°C for reaction cuvettes
23 refrigerated and stir able positions for reagents, diluents and cleaner
27 positions for samples, primary tubes, vacuum system tubes and cups
72 positions for reaction cuvettes
Pipetting needle with automatic preheating, collision protection, liquid level detection of and control of reagent volumes
Volume of reaction liquid:150-300 µl, pipetting volume: 4-200 µl
Parameters:PT, APTT, TT, Fibrinogen, Coag. factors, D-Dimer, ATIII, Protein C, Protein S, Lupus Anticoagulans
Built-in thermal printer
RFID for security of use
Quality Control:12 QC user defined QC material
Calibration:Automatic, manual, 6 point calibrations
Storage capacity of more than 10 000 data curves
program with automatic Levey-Jennings graph monitors system performance
Comprehensive Erba Haemostasis reagent line
-Technical parameters:
Universal power supply 100-240V~50/60Hz
dimensions:650 x 580 x 510 mm
weight:53 kg
2 USB ports
