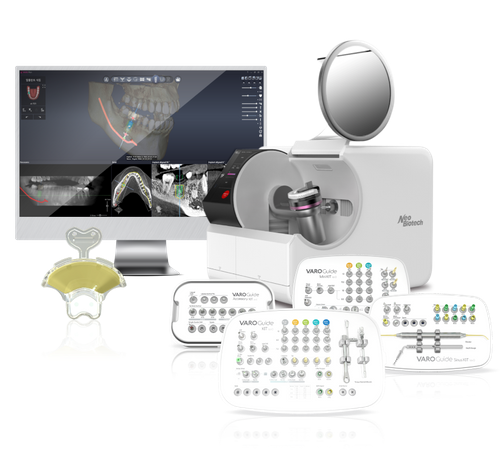

VAROGuide
Accurate Guided Surgery VAROGuide assures high accuracy and predictability of guided surgery for long-term success.
Features
Requirement:CT Scan ONLY
Reduced Process:PreGuide Impression Model = Surgical Guide
Fabrication Time:Guide hole milling ONLY (5-axis milling machine) /No 3D Print
Fabrication Time:30 min / 10X Faster (Conventional Guide Fabrication Period: 1 week)
Patient Visit:Guide Fabrication + Surgery in One-visit
Simple
Simplified Process:CT Scan ONLY, No Model or Intraoral Scan
Precise Coordination in Planning:3-Point Click ONLY
Intuitive & Simple:PreGuide Impression Model = Surgical Guide
Auto File Extraction:No Separate Design or Arrangement to Mill Guide Hole

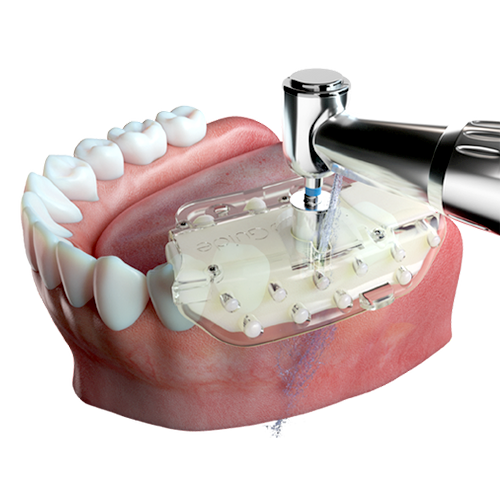

Accurate & Precise
Impression guide itself is milled as a surgical guide
Minimized Process:Significantly reduced error from extra fabrication process
Accurate Implantation Position:Minimized tolerance

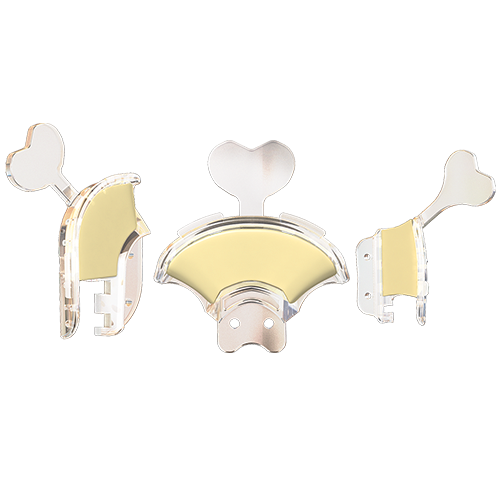

PreGuide
Pre-Guide is a preliminary frame of VAROGuide. After Impression intra-orally taken and milled as implant location, Pre-Guide is finalized as VAROGuide.
PreGuide has 4 types PGS, PGM, PGA and PGF as a tray and 8 types in total, PGS13, PGS24, PGM13, PGM24, PGA, PGF-L/M/S depending on the location.
No.13 is for maxillary right posterior and mandibular left posterior
No.24 is for maxillary left posterior and mandibular right posterior

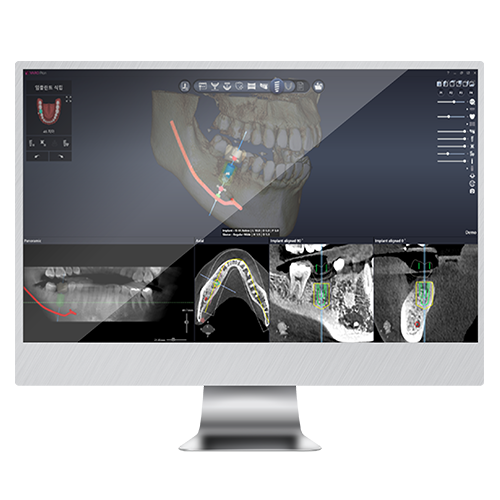

Implant Planning S/W of VAROGuide System
01 Simple & Easy User Interface
02 Markers for Accurate Merging
03 Simple & Easy Crown Design
04 Re-organization of Panoramic Image
Marked Identified Nerve
Auto-extracted Surgical Report

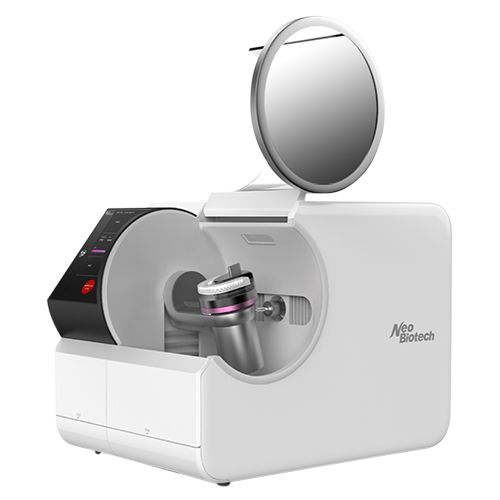

-Good Design
Elegant & Modern Design armonizing with clinic interior
-Simple Use
Simple & Easy user interface to control
-Quick and Accurate
Accurate Milling as planning (10min per hole)
-5-Axis Milling
Smooth and Stable power transmission from ball screw in 5-axis Machine
-Easy to Install
Compact size (370x500x390) and Light weight (35kg) for easy installation and migration
- No vacuum or Air pressure required but operated via electrics only;
Installation site not limited

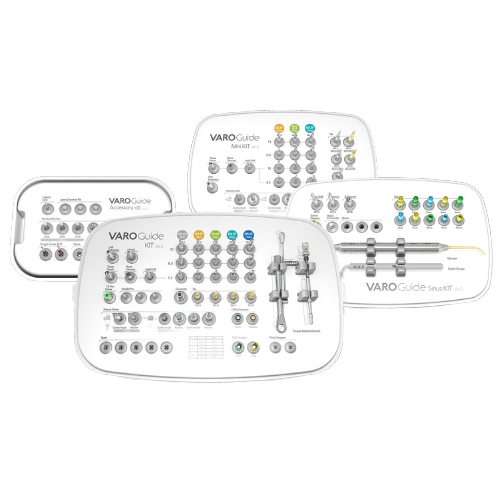

Components
VAROGuide Kit
Fundamental Kit of VARO Guide System
-IS & IT Fixture Compatible: 3.5/4.0/4.5/5.0
VAROGuide Mini Kit
Surgical Kit dedicated to Mini Fixture
-S-mini Fixture: 02.5/3.0/3.5
Narrow Fixture:03.2/3.5
VAROGuide Sinus Kit
-Surgical Kit dedicated to Sinus Lift
VAROGuide Accessory Kit
Anchor for Surgical Guide Fixation (Vertical Anchor/Lateral Anchor)
-Ø2.4 Single Guide Drill
Procedures
30 min for Guide Fabrication
New Age of Guide from preparation to fabrication, milled and completed at clinic within 30 minutes
-CT Scan
5min
-CT Scan
5min
-S/W Plan
10min
-Guide Mill
10min
