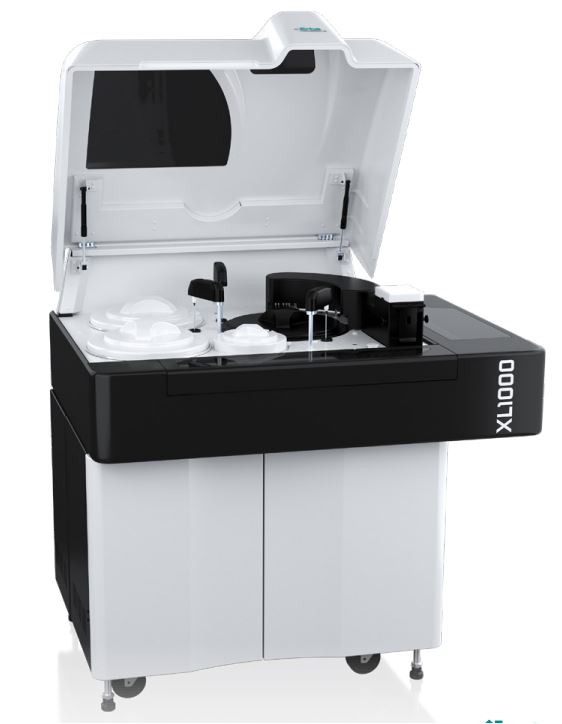

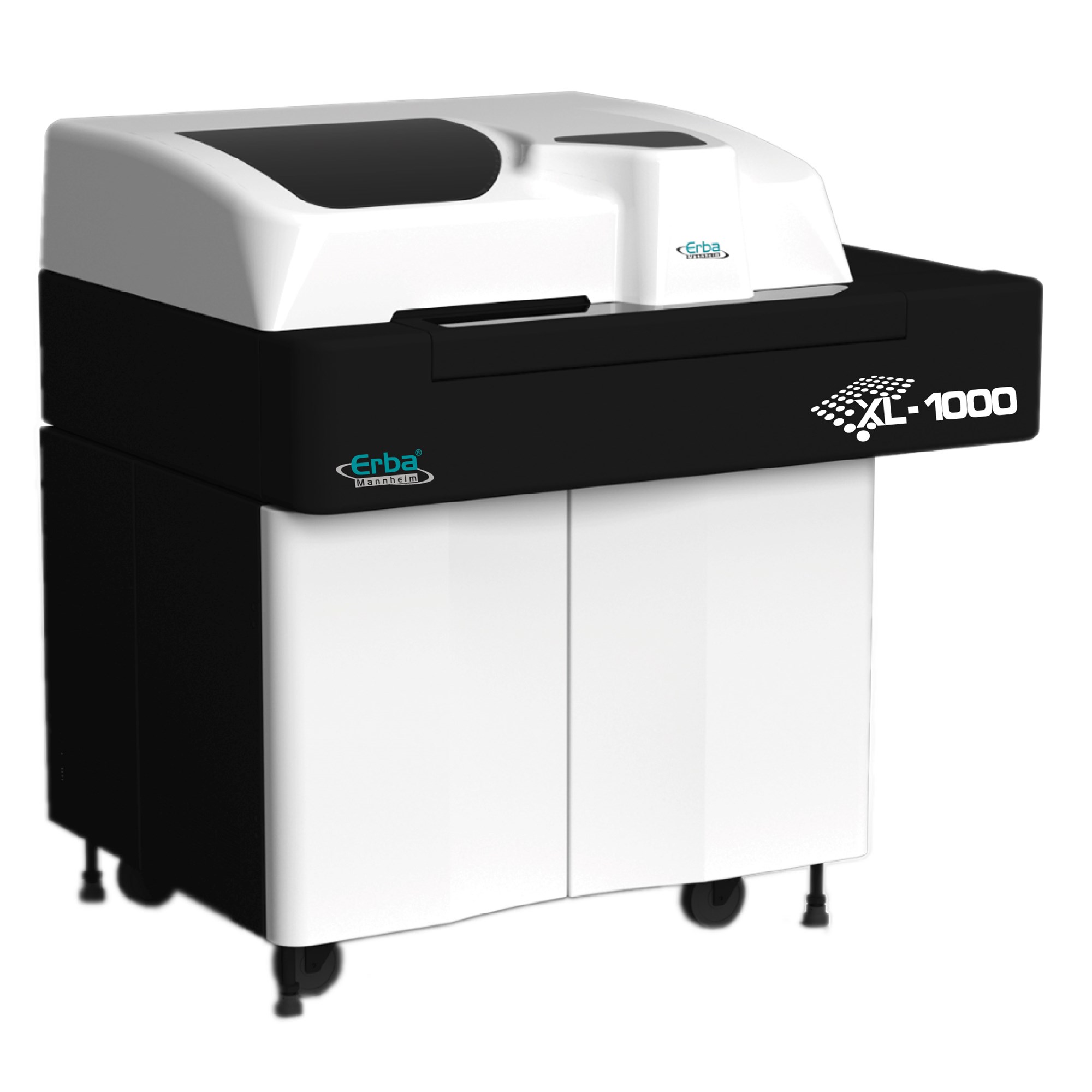

Biochemical analyzer XL 1000
XL 1000 – new member of XL family, modern, fully automated Clinical Chemistry analyzer guaranteeing high resolution measurement with automatic sample conveyor for comfortable workflow in laboratories with high sample throughput.
Analyzer XL 1000 enables throughput of 800 tests/hour and up to 1040 tests/hour with ISE (Na/K/Cl/Li)
-SYSTEM :
-Discrete, open, automated, random access, patient prioritized, 1/2/3 reagent system
-DISPENSING OF SAMPLES AND REAGENT
-Sample volume: 2-60 µl (0.1 µl step), 70 µl with ISE
-Reagent volume: 120 µl – 550 µl
-3 dispensing probes ( R1, R2/R3) equipped with liquid -level sensor and crash detector
-Auto-dilution of samples and calibrators
-Clot detection
-SAMPLES :
Serum, urine, plasma, CSF and other
-ECONOMY :
Minimum reaction volume:180 µl
Reusable reaction cuvettes
-MIXING SYSTEM :
2 independent stirrers
3 user selectable mixing speeds
-QUALITY CONTROL :
4 levels of control material can be used
Levey-Jennigs graphs
Twin Plot diagrams for monitoring of systematic and random error
-REACTION UNIT WITH WASH STATION :
147 reusable hard glass cuvettes
Possibility of replacement of individual cuvette
Wash station – cuvette rinsing and drying in nine-step procedure
Automatic cuvette blank measurement before analysis
-SAMPLE AUTOLOADER :
23 racks
115 sample positions on automatic autoloader
Primary tubes 5, 7 and 10 ml, vacuum system tubes
Barcode reader for sample identification
2 REAGENT TRAYS
With 43 cooled position each
Barcode reader for reagent identification
20 ml, 50 ml reagent containers, 5 ml tube with adaptor
Option to use one reagent for several test simultaneously
STAT TRAY
45 positions
Can be used for blank, controls, STAT samples
-SOFTWARE :
Convenient user interface
Connection to LIS
Programmable auto-start from sleep mode including automatic daily maintenance
Statistical methods of processing results
Data export in selected format
-MEASUREMENT MONITORING :
Colour indication of sample analysis
Possibility of monitoring the reaction in real time
Reagent volume monitoring
Informative reports on ongoing analyzer status
