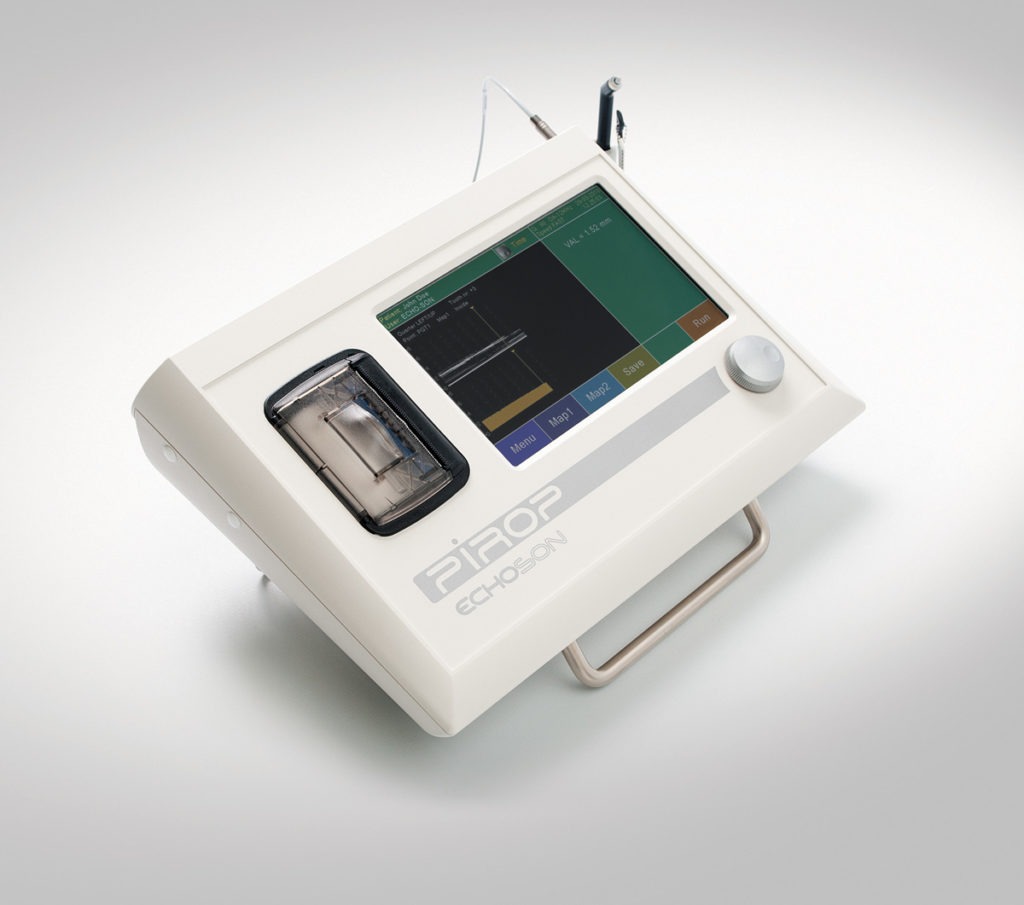

Pirop G - Biometric Scanner
State-of-the-art ultrasonic device PIROP in intraoral application for biometry soft tissue thickness in the periodontium (Gingival Thickness) – GUM/Gingiva – Periodontal Soft Tissue biometrics.
PIROP user’s interface based on touch screen technology makes operation easy and user-friendly.
Undoubted advantages of using the Pirop device to measure the mucosa thickness are fast measurement, very high accuracy and a complete noninvasiveness during an ultrasonic examination.
# Specifications:-
*SOFT TISSUE BIOMETRICS
• In-point, automatic measurement with automatic averaging and calculation of standard deviation
• Non-invasive thickness measurement via contact method
• A-scan and unique time-motion measurement modes for quick estimation of the thickness for the region of interest
• Sophisticated algorithm for the accuracy improvement
• High frequency measurement cycles
• Probe frequency 20 MHz
• Velocity range – 1400-2000 m/s
• Measurement range 0,25 ÷ 6 mm
• Axial resolution 0.01 mm (10 μm)
• Memory for 256 measuring points

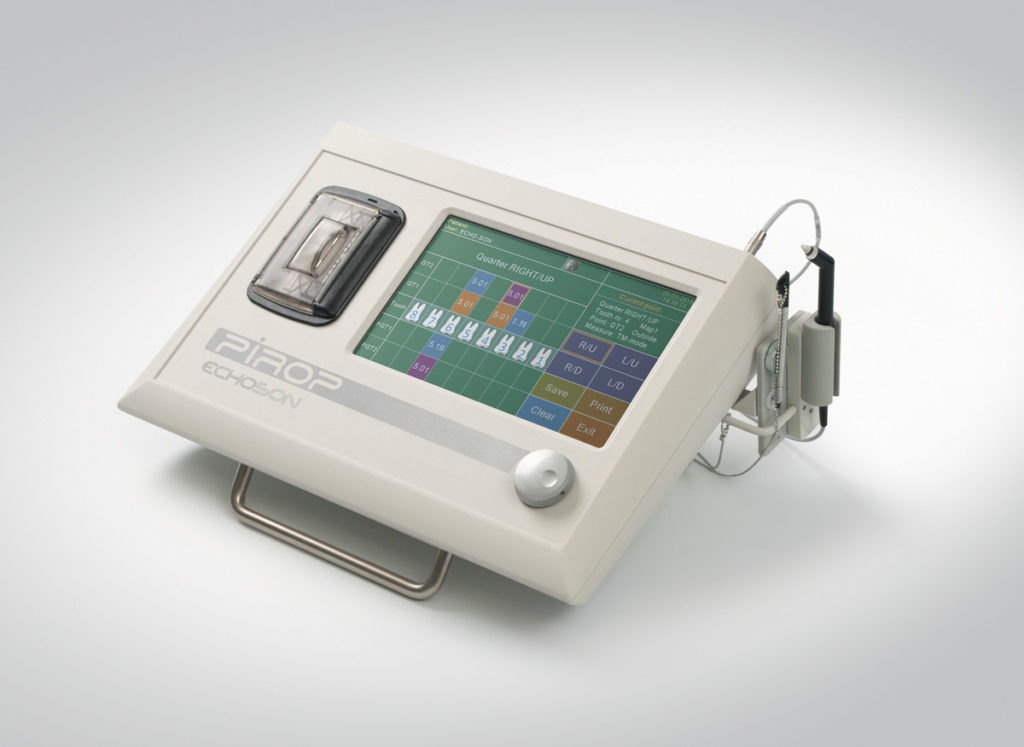

• 8 predefined maps of periodontal areas – diagrams to select the dentition quadrant, tooth and measurement point
• 32 cross sections of the examined dento-gingival unit
* POWER SUPPLY :
• Power supply from external AC/DC power adapter:
– input:100-230V AC 50/60Hz / max 0.7A
– output: +12V DC / 2 A
• Power consumption (12 DC supply) – ca 12 W
• Electrical safety standards
– Medical device Class IIa complies with MDD 93/42 EEC
– Scanner complies with requirements for Class II devices of EN/IEC 60601-1
* GENERAL PROPERTIES :-
• Touch Screen
– easy, ergonomic and user-friendly operation via displayed menu
– virtual keyboard for entering patient data, etc.
• Functional knob (gain control, review results etc.)
• Run / Freeze: Foot Switch or touch screen activated
• Automatic TGC adjustment
• Color LCD 7” display, 800×480 pixel
• Ten (10) user profiles
• Internal patient’s database
• Images archiving in internal memory and USB memory
• Internal thermal small printer
• Support for barcode reader
• Possibility of connecting an external alphanumeric keyboard

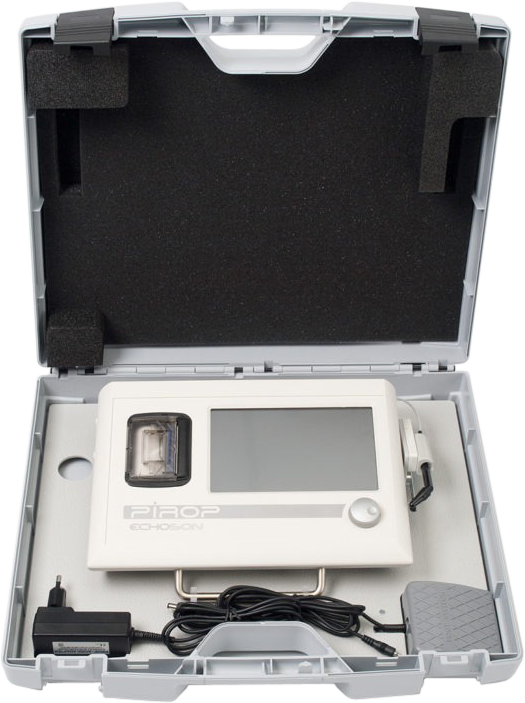

• Ready to use also in transport suitcase

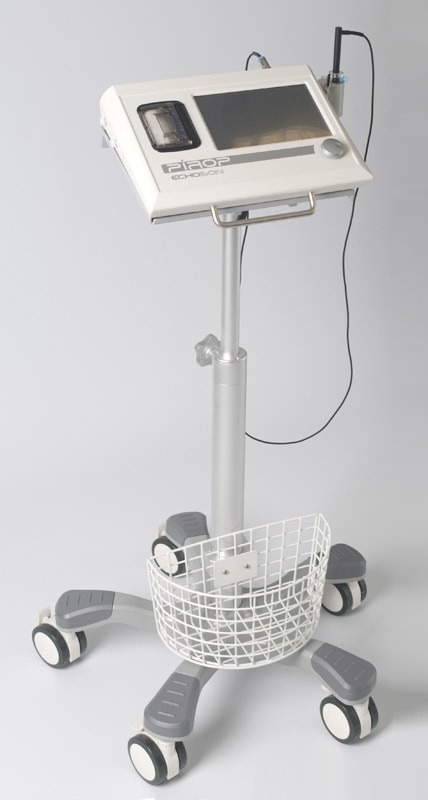

• Trolley – option
• Composite-video output PAL
• Easy firmware upgrade via USB memory
# Probes:-

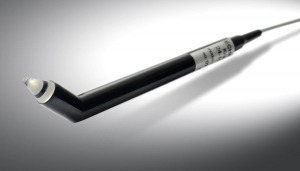

1) OP20 Soft Tissue
Application:Soft tissue biometrics – gingival thickness measurement frequency: 20 MHz
