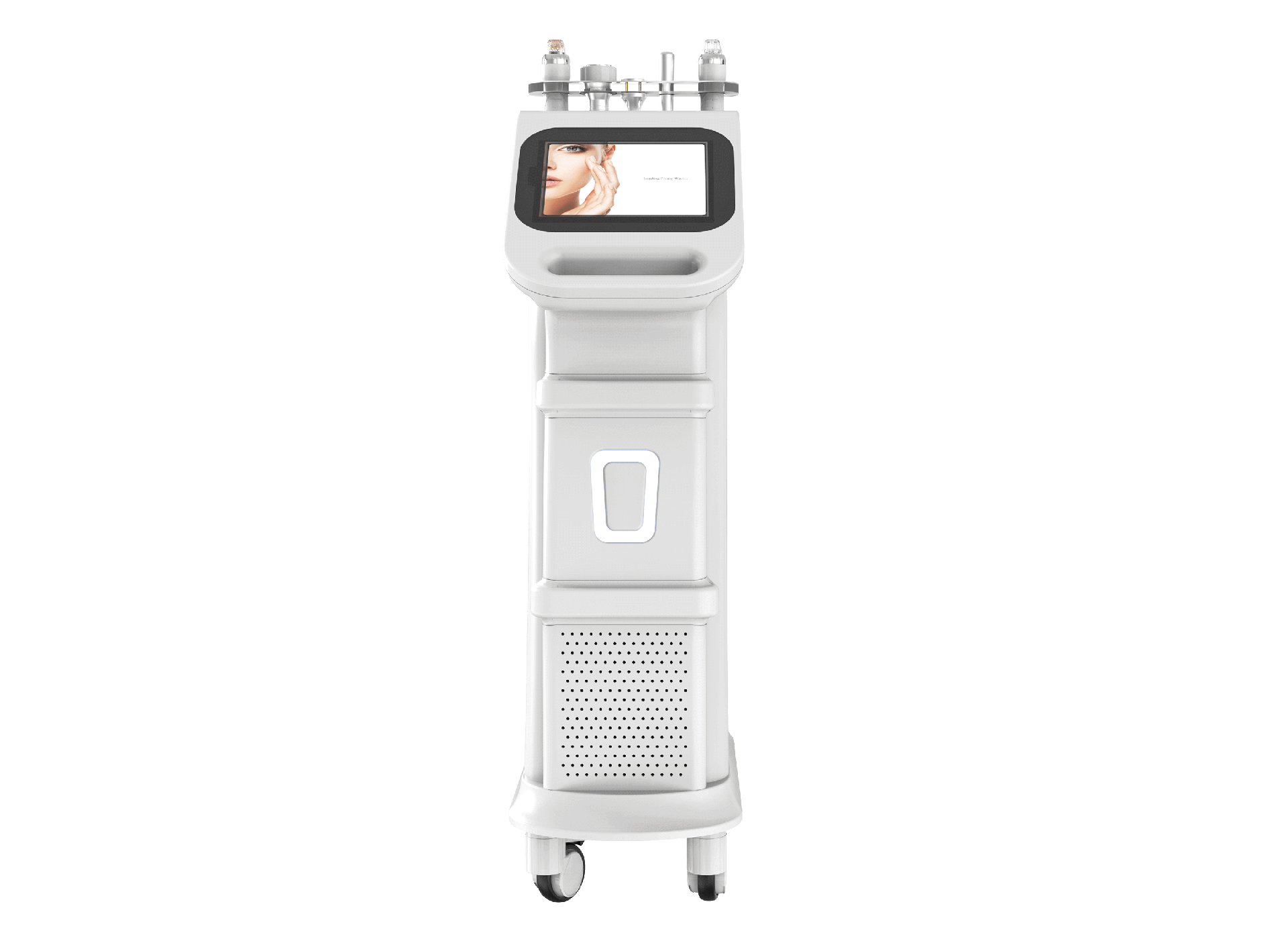

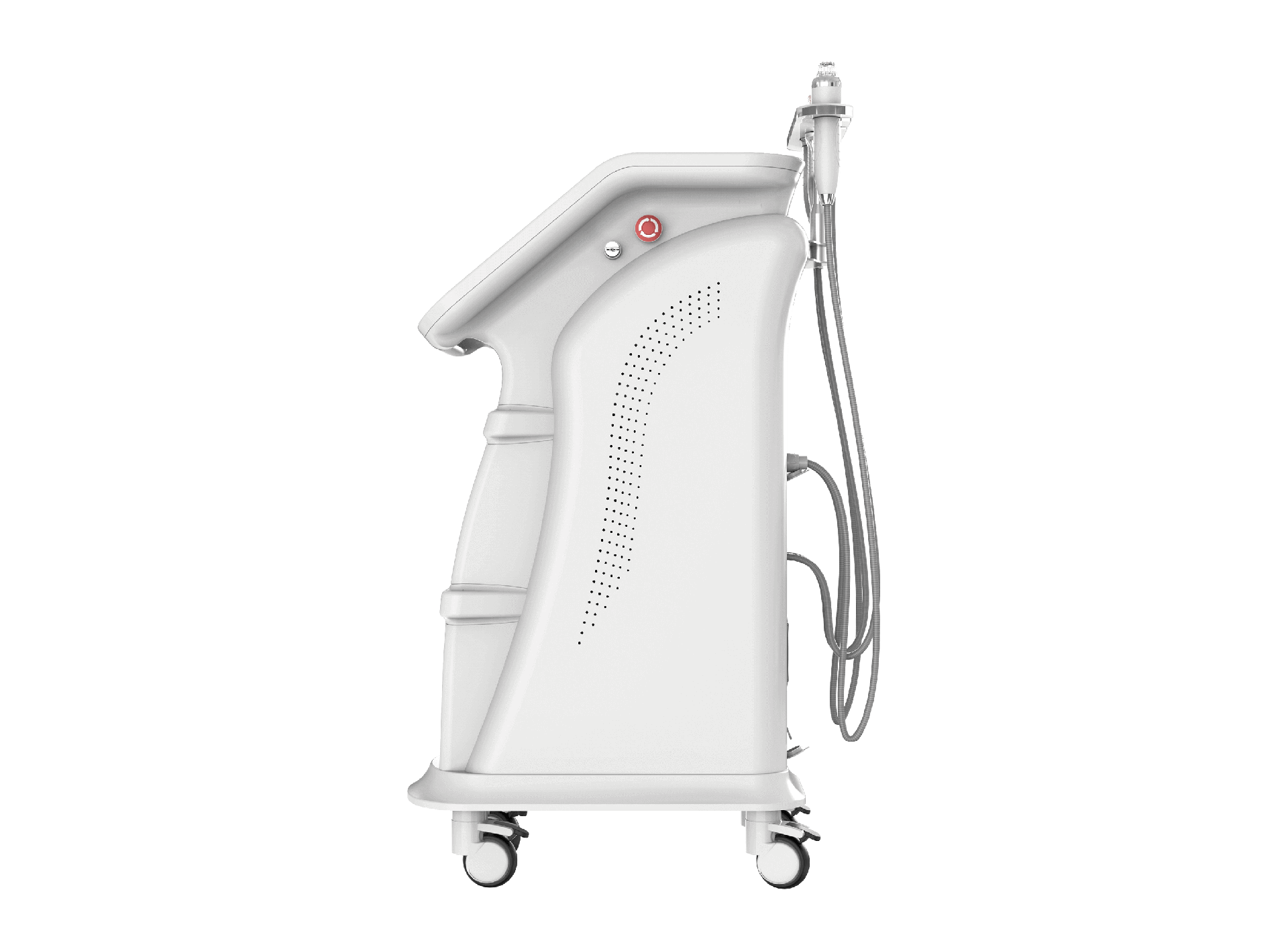

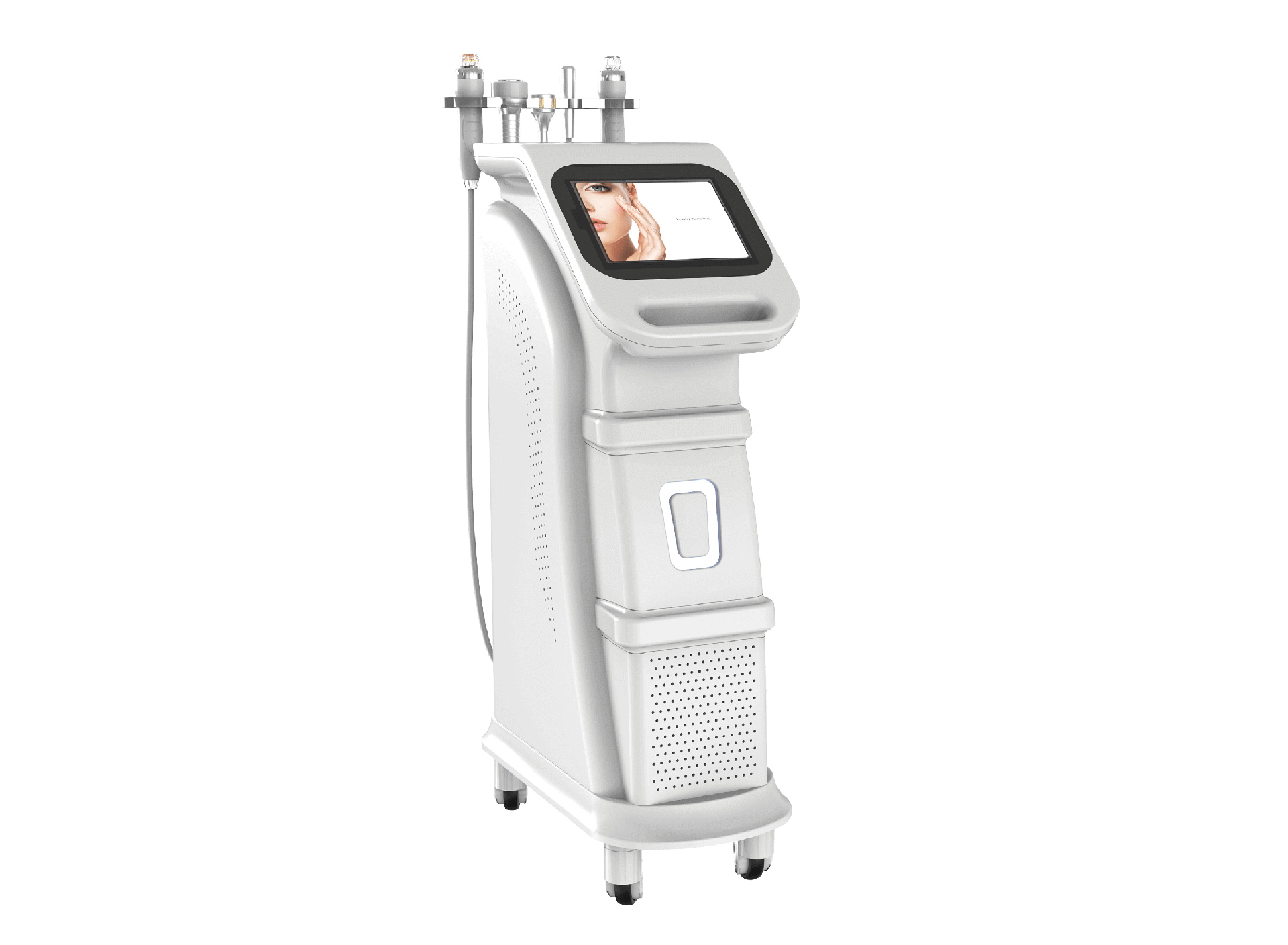

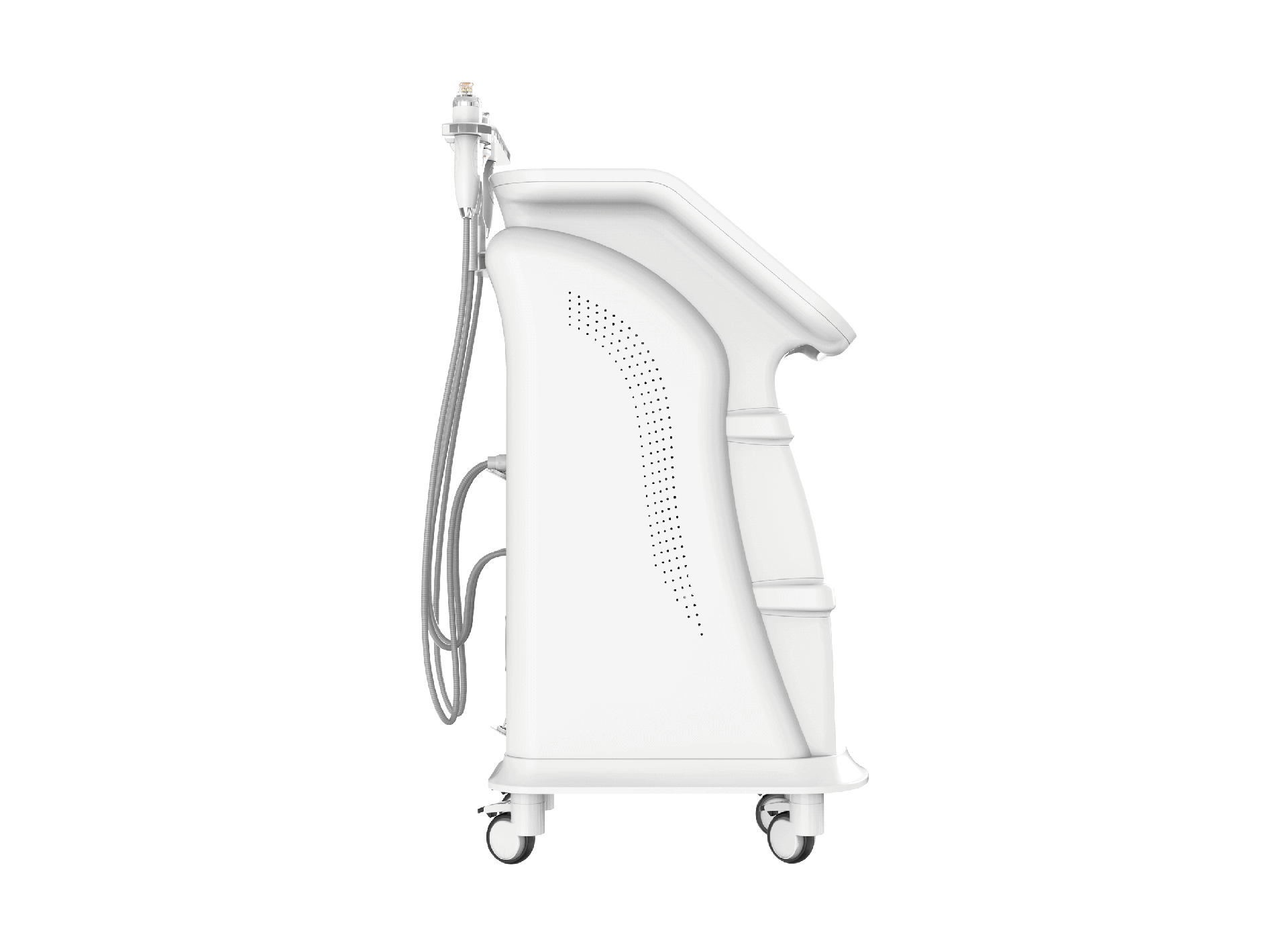

Vacuum Pinxel Microneedle RF Machine

PINXEL-V

Technology：

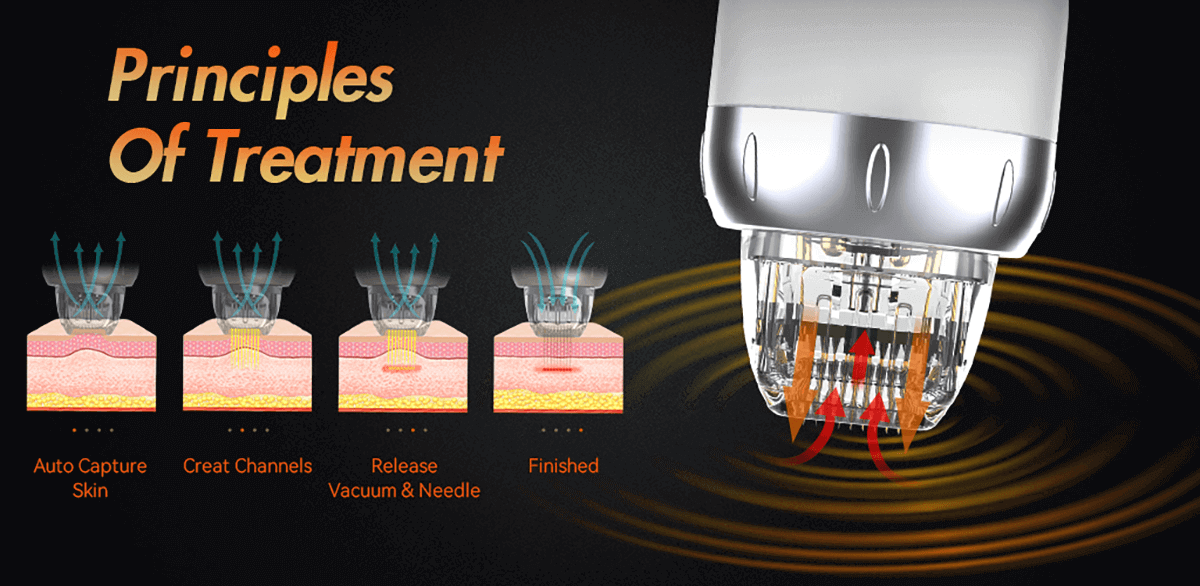

Micro needle rf machine add vacuum on the original basis of radio frequency. The vacuum absorbs the skin, and then the needling release energy, it can avoid the uneven energy of the needle intrusion into the skin due to skin elasticity. The treatment effect is better than ordinary radio frequency.

Indication:

Facial Treatments

• Skin Tightening

• Pore Reduction

• Skin Rejuvenation

• Wrinkle Removal

• Face Lift•Body Treatments

• Scars Removal

• Stretch Marks Removal

• Body Tightening

Applicators

MICRO NEEDLE RF (RF) applicator for procedures requiring ablation and resurfacing of the skin.

Add vacuum – suction combined probe for better skin contact, especially around eyes and neck areas.

Microneedle RF handle

Epidermis and dermis Treatment

Invasive Treatment

1.Stepping Motor Type

Stepping Motor Type, different to existing solenoid type, the needle inserts to the skin smoothly with no shock, and causes no bleeding and no pain after the procedure

2.Needle Depth Control

0.4-4.0mm [0.2mm Step]

Operate epidermis and dermis layer by controlling the needle depth in unit of 0.2mm.

3.Gold Plating

Needle is durable and also have high biocompatibility by applying Gold Plating. Patient with Metal allergy could also use it with not conceming Contact Dermatitis.

4.Safety Needle System

Sterilized disposable needle tip

operator can easily notice the applying RF energy from LED light.

5.Needle Thickness: 0.2mm

The needle structure is easy to penetrate the skin with mininum resistance.

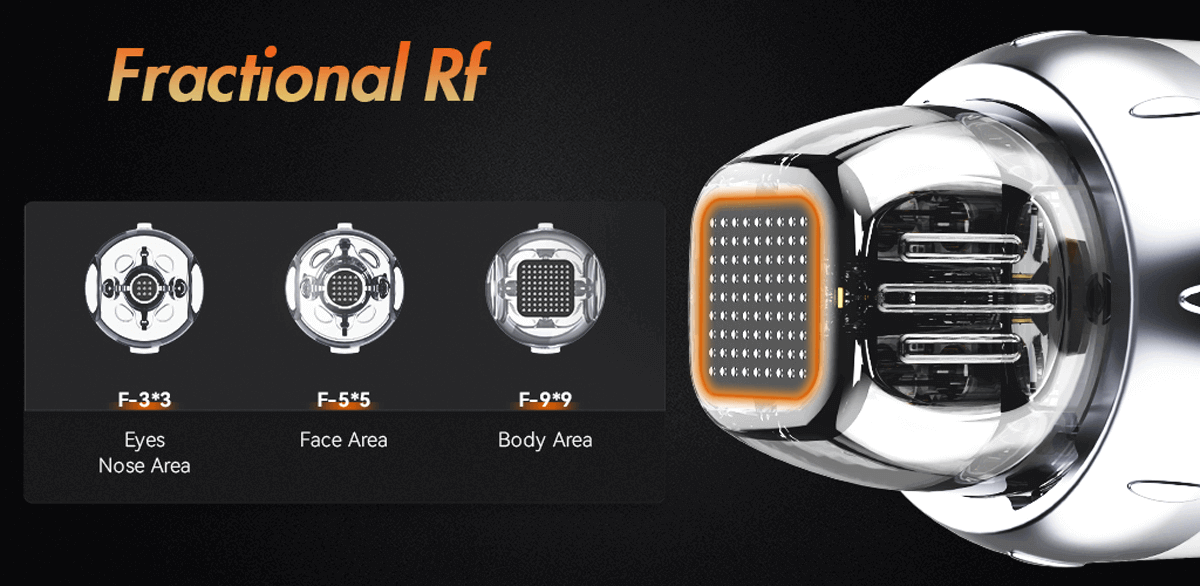

FRACTIONAL RF Applicator:

FRACTIONAL RF applicator for non-invasive wrinkle reduction, suitable for the patients fear of needle, no down time, recovery soon.

-Fractional RF handle

-Epidermis Treatment

-Non-invasive Treatment

-F-3X3, F-5X5, F-9X9

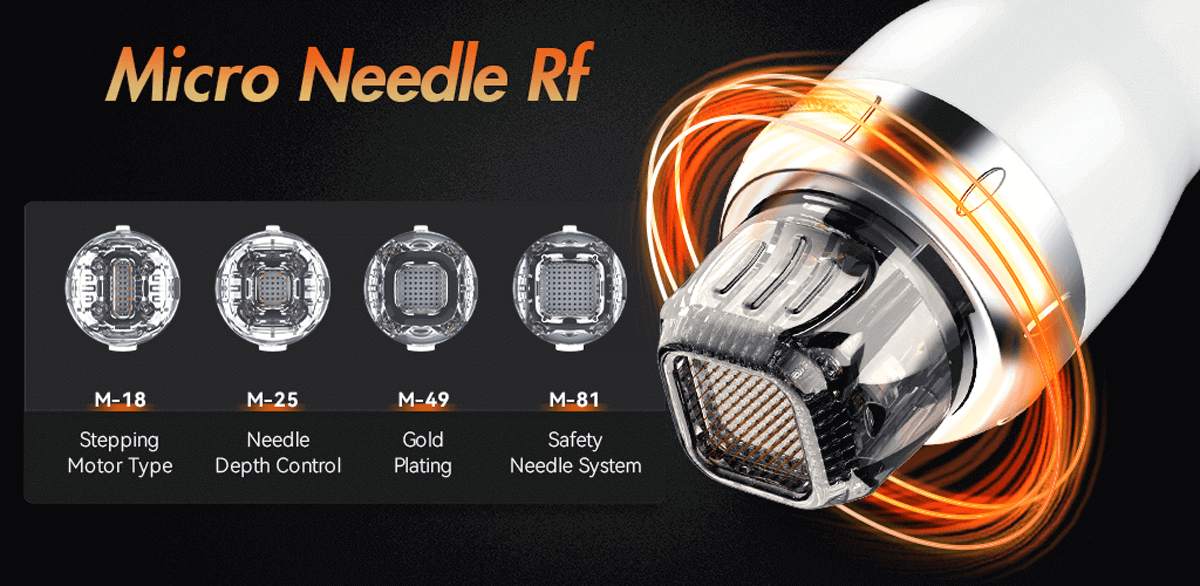

Microneedle RF Applicator:

MICRO NEEDLE RF (RF) applicator for procedures requiring ablation and resurfacing of the skin.

Add vacuum – suction combined probe for better skin contact, especially around eyes and neck areas.

1.Stepping Motor Type

Stepping Motor Type, different to existing solenoid type, the needle inserts to the skin smoothly with no shock, and causes no bleeding and no pain after the procedure

2.Needle Depth Control

0.4-4.0mm [0.2mm Step]

Operate epidermis and dermis layer by controlling the needle depth in unit of 0.2mm.

3.Gold Plating

Needle is durable and also have high biocompatibility by applying Gold Plating. Patient with Metal allergy could also use it with not conceming Contact Dermatitis.

4.Safety Needle System

Sterilized disposable needle tip

operator can easily notice the applying RF energy from LED light.

5.Needle Thickness: 0.17mm

The needle structure is easy to penetrate the skin with mininum resistance.

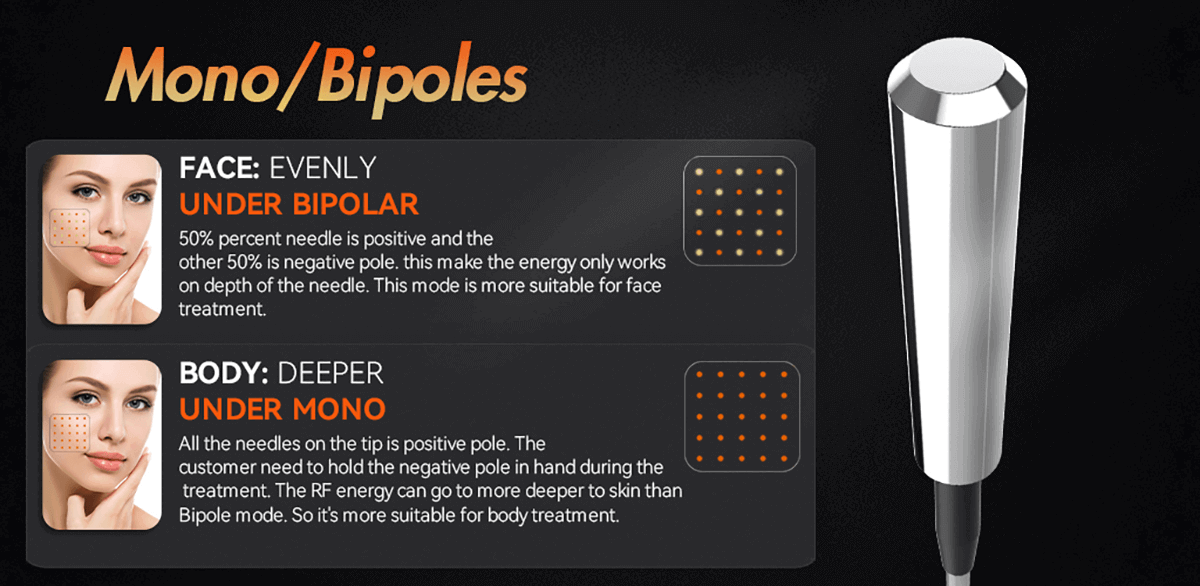

Negative bar Applicator:

Mono-polar :For body, deeper

Bi-polar : For face, evenly

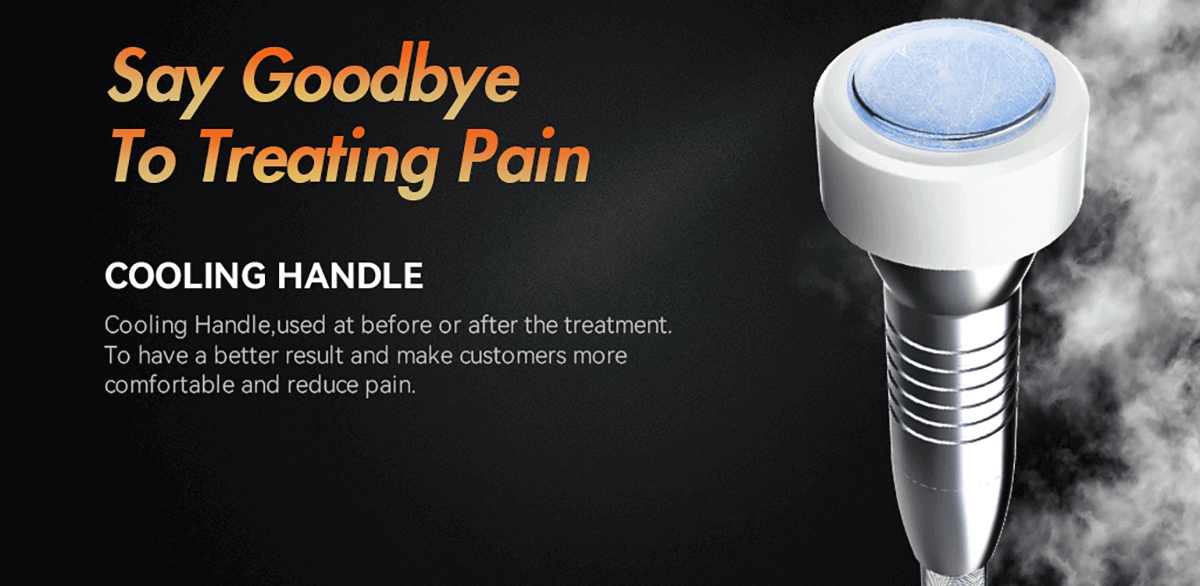

Cooling handle Applicator:

Cooling handle

Reduce pain after treatment

Specification:

Type :PINXEL-V

-Handle :Fractional RF handle, Micro Needle RF handle

-Working Mode :SINGLE/AUTO

-Energy :1-10 Level

-Frequency :2mhz

-Cooling :1-3 Level (Max -10℃)

-Power :Max 50 watts

-Needle Deepths :0.4-4mm adjustable

-Tips :Insulated & Non-insulated

-Mode :MONO & BIPOLE

-Invasive Tips:M-18, M-25, M-49, M-81

-Non invasive Tips :F-3*3 , F-5*5, F-9*9
