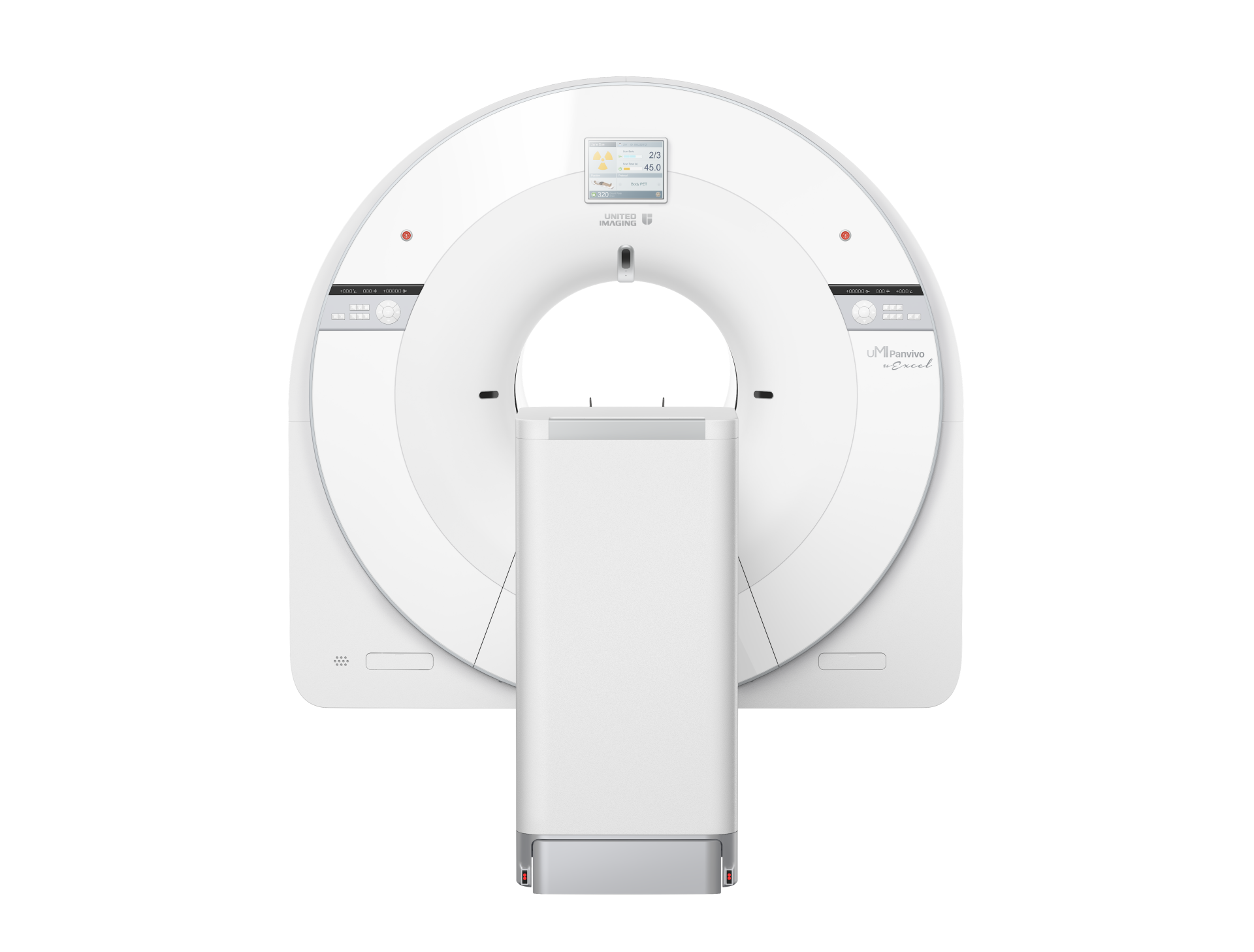

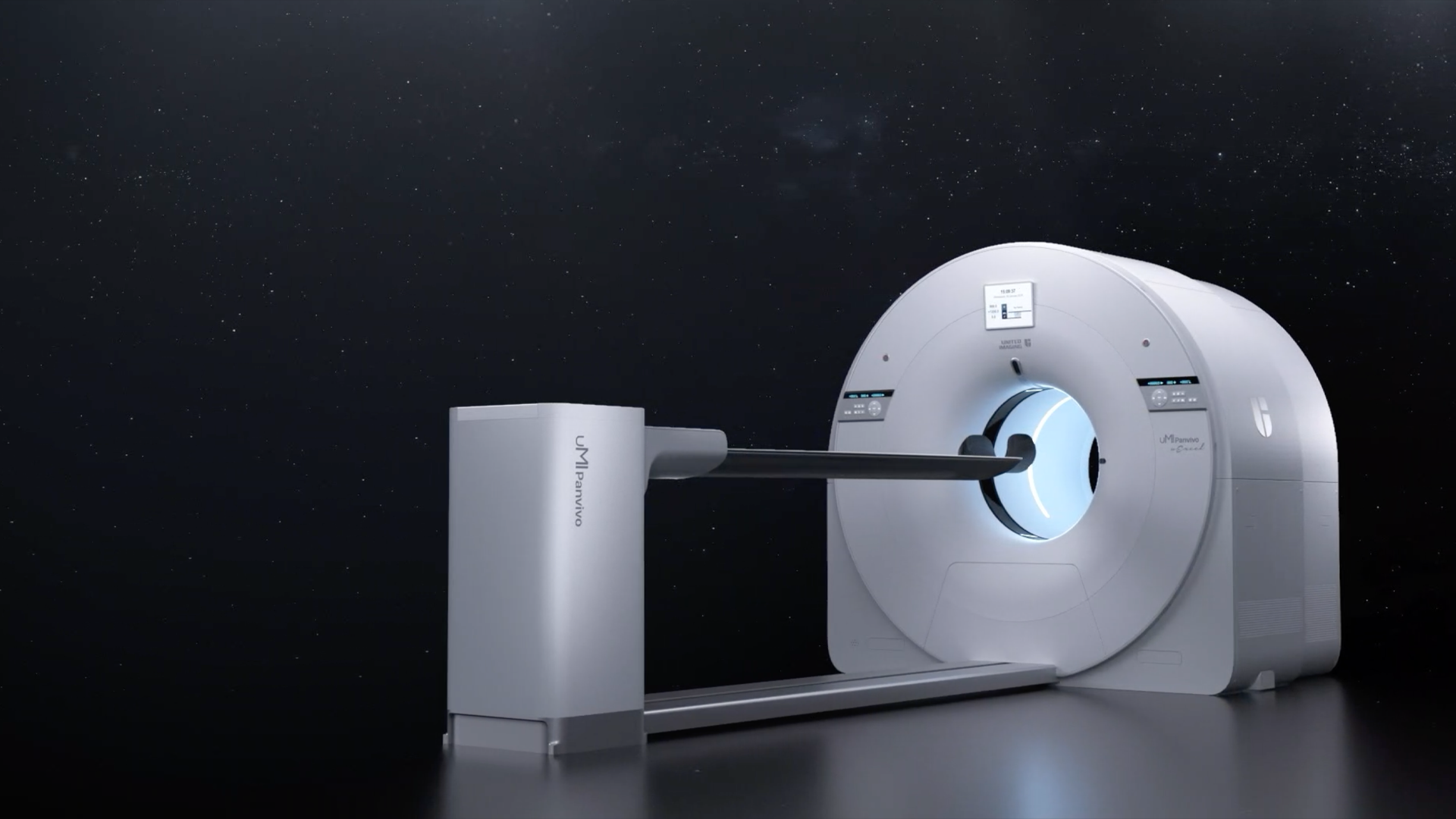

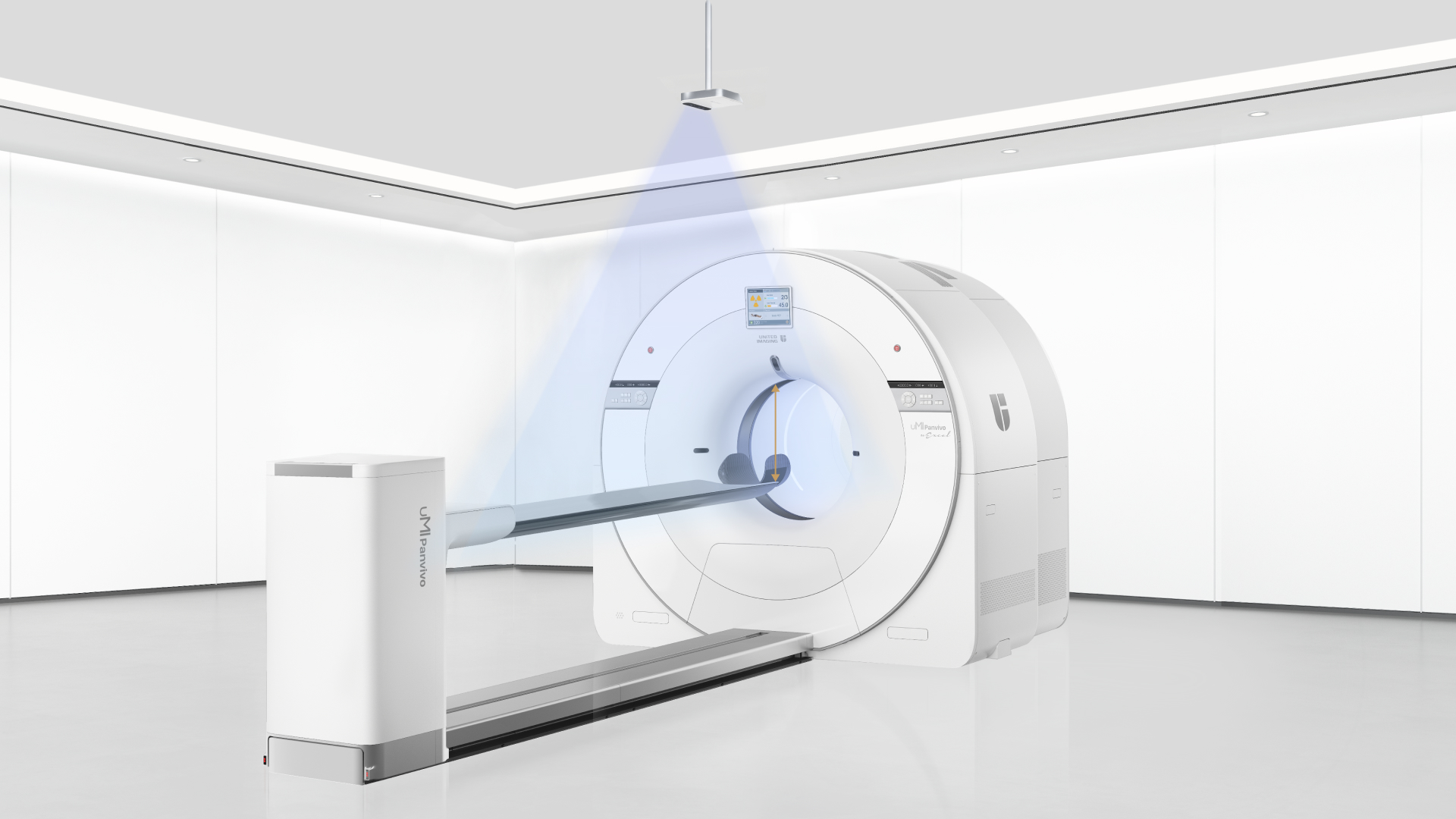

Advance PET/CT scanner
Brand
- Shanghai United Imaging Healthcare Co., Ltd
Model
- uMI Panvivo
Manufacturing Country
- China
Quality Certificates
CE MARKING
FDA 510(k)
ISO 13485
ISO 9001
Specification
uMI Panvivo is a high performance PET/CT platform that moves state-of-the-art innovative advancement to clinical reality. It advances diagnostic precision with industry-leading NEMA spatial resolution of 2.9mm and time of fight (TOF) timing resolution of 219 picosecond (ps), while it's air-cooled compact design make it more accessible to all. The human-centric design and fully AI-empowered workflow of uMI Panvivo deliver care to every patient while keeping the user in mind. Built on its scalable platform, uMI Panvivo's powerful design builds the bridge toward long-term and sustainable success.
* Top-tier Performance:-
- 2.9 mm
Exceptional NEMA spatial resolution delivered by the finest crystal size of 2.76 mm in the industry.
- 219 ps
Leading TOF resolution that boosts small lesion detectability and clarity.
- Up to 181 cps/kBq¹
High effective sensitivity that benefits from TOF gain leverages better diagnostic accuracy under low dose usage and fast scan time.
Technical Specifications:-
*Gantry :-
Aperture:70 cm（27.56 inch）
Weight Capacity:250 kg (551 lbs)
Cooling Method:Air cooling
System Control:DDP + CPAN
Remote Audio System:Yes

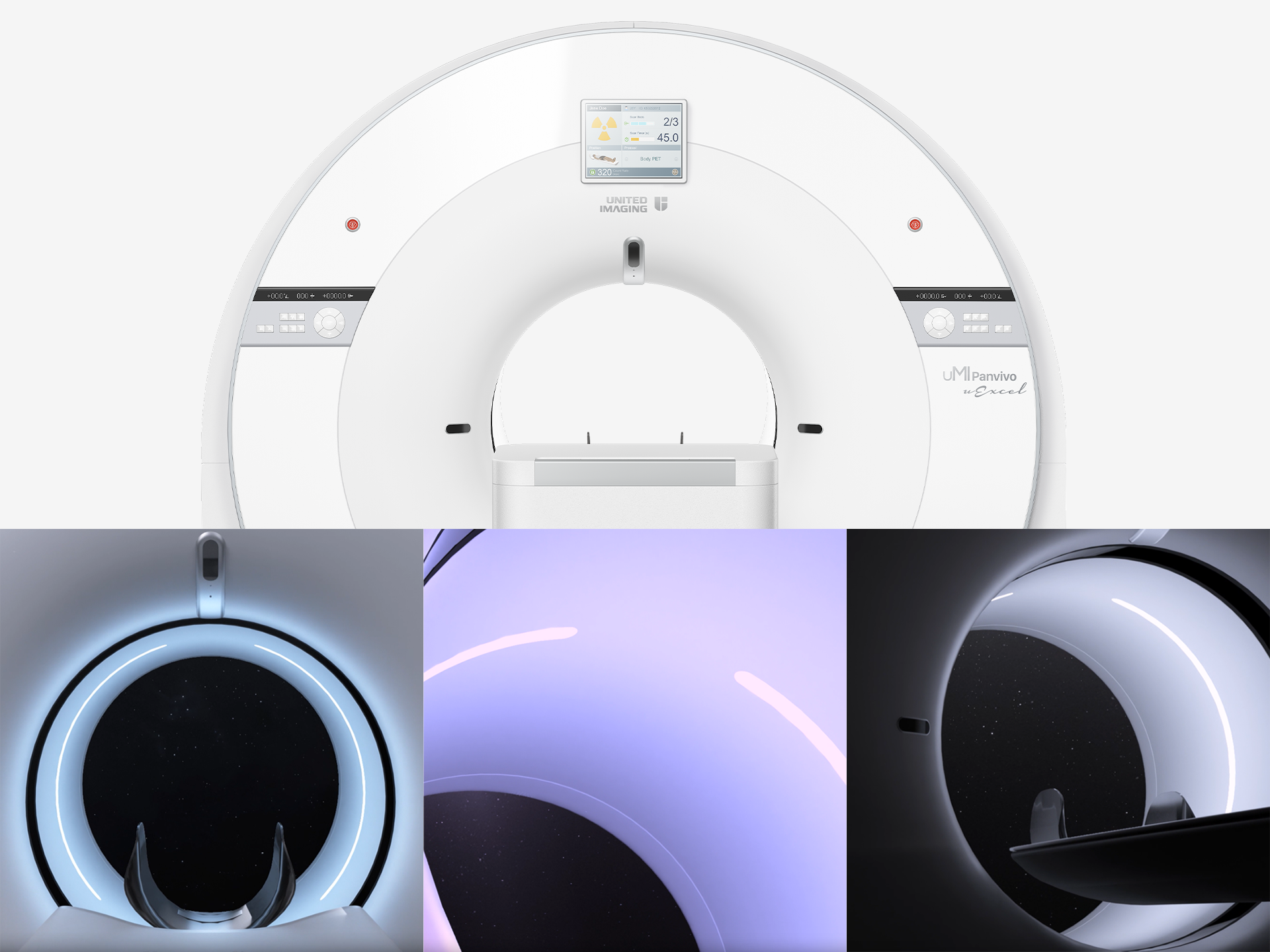

Light Environment:Purple, blue and white light with respiratory guide
* PET :-
Crystal Material:LYSO
Crystal Size:2.76 mm × 2.76 mm
Spatial Resolution @1 cm:2.9 mm
TOF:219 ps
Scalable AFOV4:30 cm, ...
Effective Sensitivity @ 35 cm phantom1:up to 181 cps/kBq
* CT :-
Axial Coverage:4 cm
Maximum Rotation Speed:0.3 s
Number of Detector Rows:80
Maximum Slices per Rotation:160
Equivalent Tube Anode Storage Capacity:7.5 MHU
kV Settings:70 kV, 80 kV, 100 kV, 120 kV, 140 kV
Range of Tube Current:6-833 mA (with 1 mA increment)
