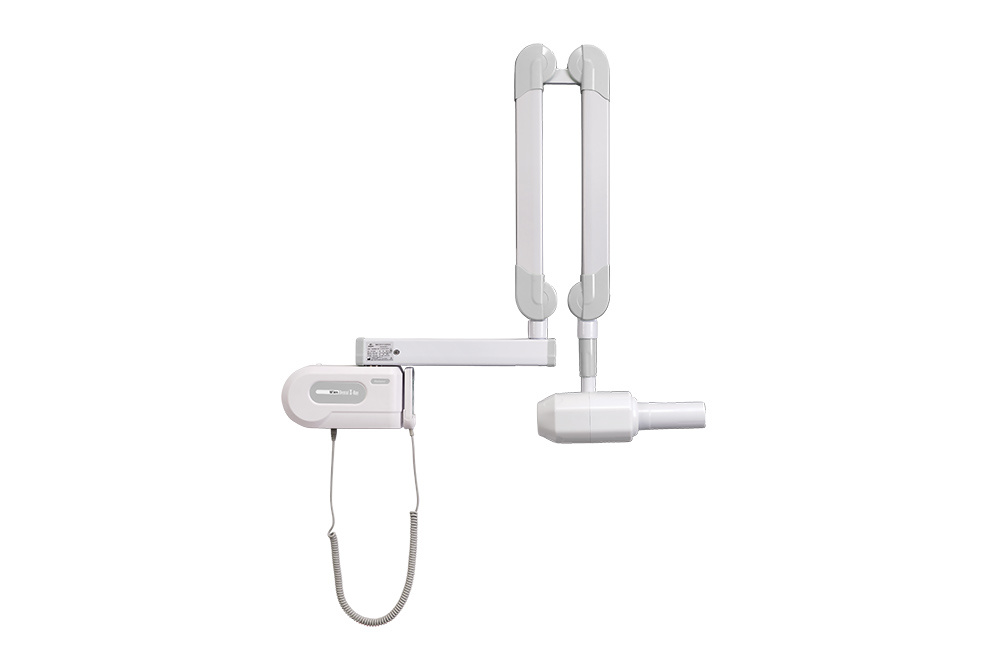

RAY68(W)

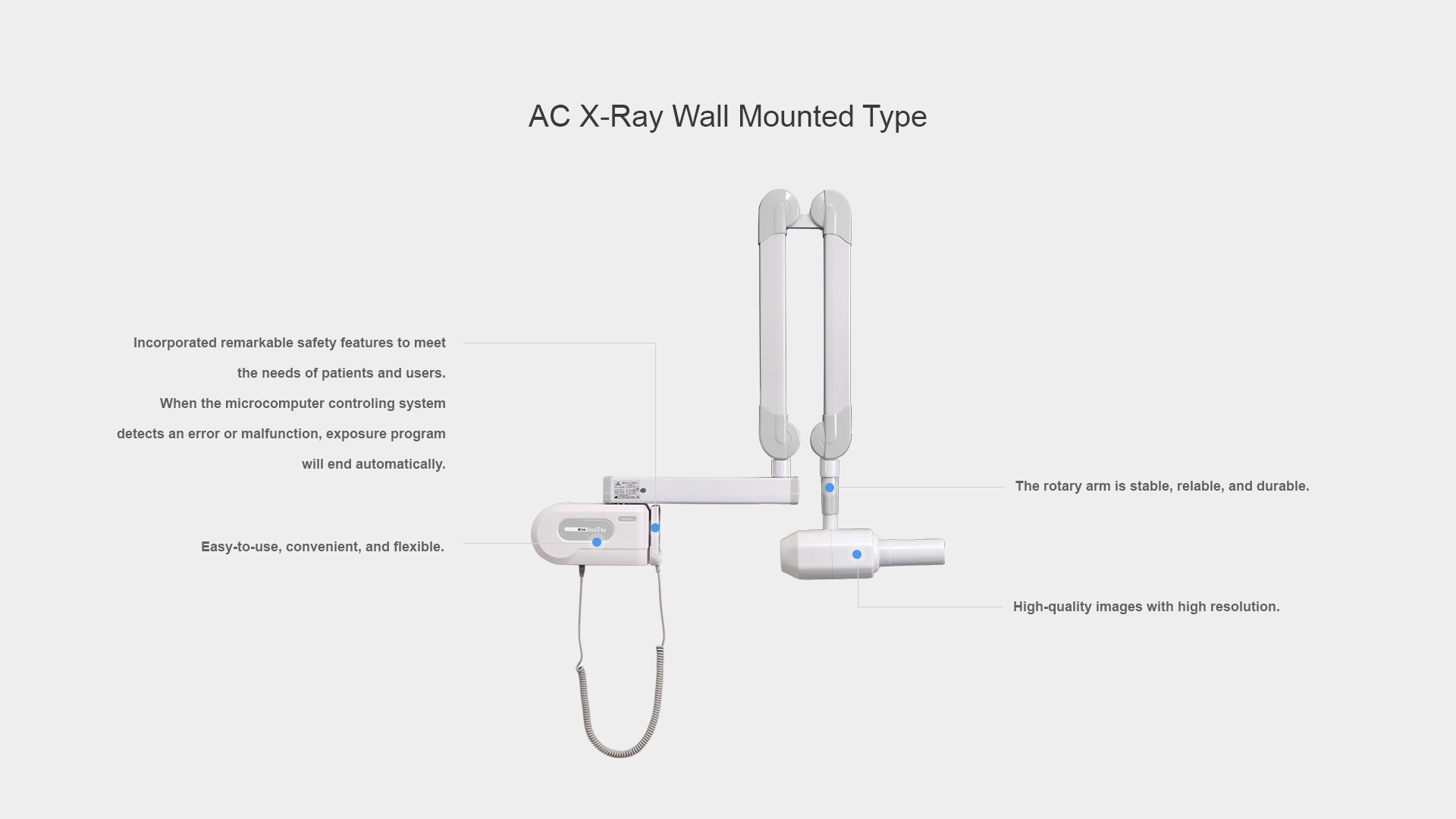

AC X-Ray Wall Mounted Type
Finish update:
Incorporated remarkable safety features to meet the needs of patients and users
When the microcomputer controling system detects an error or malfunction, exposure program will end automatically.
The rotary arm is stable, relable, and durable.
Easy-to-use, convenient, and flexible.
High-quality images with high resolution.
Product Parameters
-Parameters Instruction
-Power Voltage:AC 230V
-Bulb Tube: Canon (Toshiba)
-Duty Cycle:1/30
-Frequency:50/60Hz
-Ray Focal Spot:0.7mm
-Half Value Layer:70Kv 1 .6mm Al
-Maximum Power:900VA
-Bulb Tube Voltage:70Kv±10%
-Inherent Filtration:≥2.1mm Al
-Electricity:4A
-Anode Current:7mA±20%
-Leakage Radiation:1meter≤ 0.14mGy/h
-Fuse:6 .3A
-Anode Angle:16°
-Time Of Exposure:0.06—2.0s
