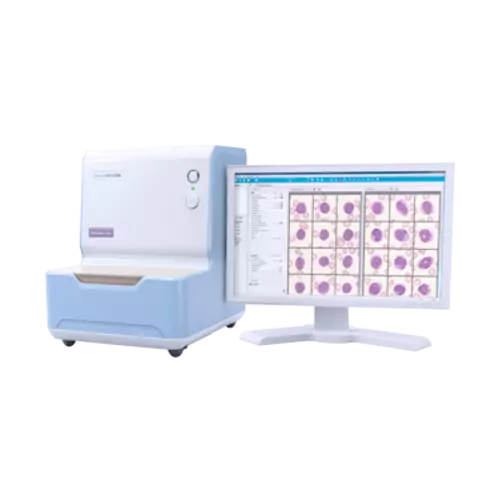

CellaVision® DC-1 VET Digital imaging analyser
Accelerated turnaround time to clinical diagnosis
Enhanced quality of results from consistency and standardisation
Automatically locate, capture and pre-classify white blood cells by means of high-quality images
Pre-characterise red blood cell morphology and perform platelet estimates
Connectivity that facilitates remote collaboration and validation of results
Valuable education tool aided by the reference cell library and side-by-side blood cell images
For canine and feline species, the CellaVision Peripheral Blood Application automatically pre-classifies white blood cells into the following classes: band neutrophils, segmented neutrophils, eosinophils, basophils, lymphocytes, monocytes and other. Non-WBCs are classified into nucleated RBC, giant platelets, thrombocyte aggregations, smudge cells and artefacts.
For avian species, white blood cells will be pre-classified as heterophils, eosinophils, basophils, lymphocytes and monocytes. Non-WBCs are classified into giant platelets, platelet aggregations and artefacts.
Slide Handling
Accepts slides with ground edges, clipped, round or square corners
Order ID for slides entered either manually or using an optional barcode reader
Slides are loaded one slide at a time
Analyses slides with blood smears
Quality Control
Cell location accuracy test for the verification of the hardware and stain quality
Built-in smear check
Storage Capacity
Primary storage:on local hard drive up to 1,500 slides (20 GB)
Secondary storage:unlimited when transferred to external storage media
Communications
Bi-directional LIS support, ASTM
Ethernet 100/1000 Mbps
Multiple CellaVision® DM/DC analysers can share a database
System Components
Slide Scanning Unit (SSU) with integrated PC and Windows 10 embedded CellaVision DM software
Size (W x D x H) and weight
280 x 390 x 370 mm (11.0 x 15.4 x 14.6 inches)
11 kg / 24 lbs
Throughput
Approximately 10 slides per hour for orders containing RBC, PLT and 100 WBC
Approximately 5 slides per hour for complete orders including feathered edge scans
Accessories
QC label
Hand-held barcode reader
CellaVision immersion oil
HemaPrep® blood smearing device
Label printer kit
