The right size for your lab

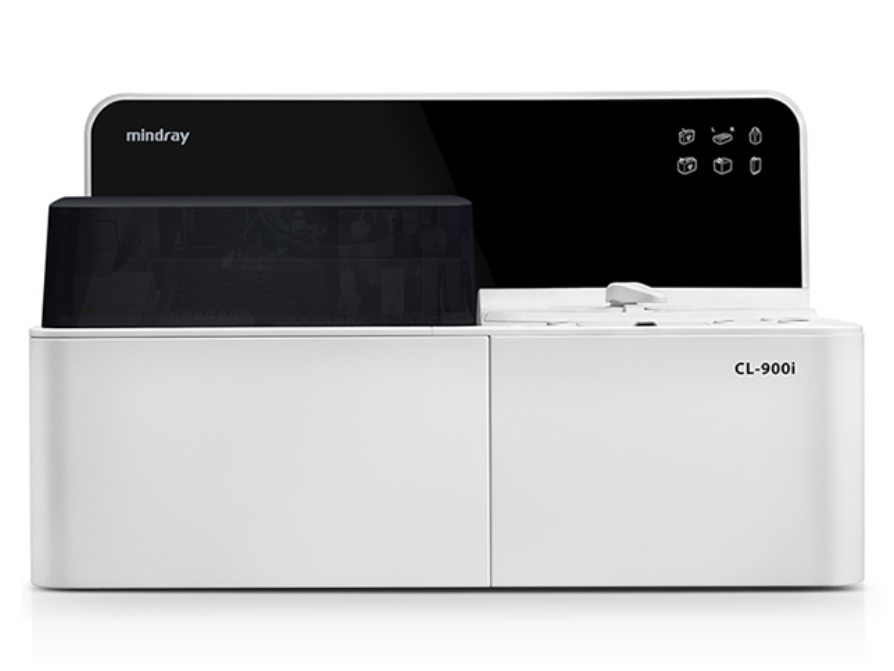

As one of the world’s smallest, fully automated chemiluminescence immunoassay analyzers, the CL-900i integrates a large capacity and fast assay speed into a compact model, achieving a perfect balance between size and immunoassay testing performance.
-Features
Basic parameters:
-Measurement principle: enhanced ALP-AMPPD method
-Small footprint: 860mm*740mm*560mm (W*D*H)
-Throughput of up to 180 tests/hour
-50 sample positions and 15 reagent positions
-Environmental Friendly - Solid-liquid waste separation
-Precise magnetic separation with consistent performance reliability

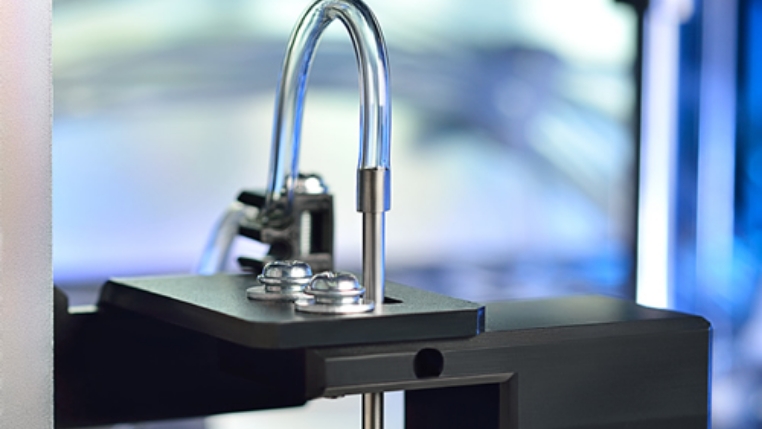

-Wiper washing technology enhance efficiency & minimize carryover

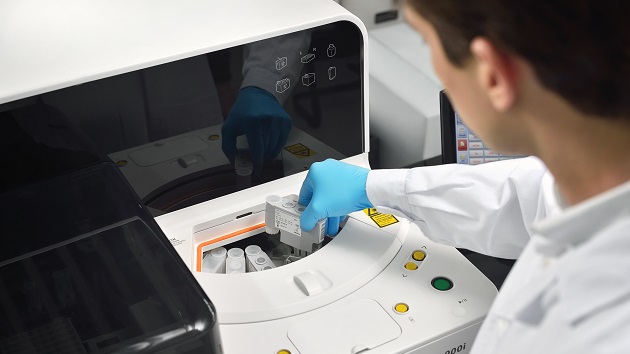

-Continuous loading of samples, reagents, substrates and cuvettes
-One-key start & real-time consumables status monitoring
-Chemiluminescence Immunoassay Reagent
Technical Specifications
General Information
-Throughput Up to 180 tests/hour
-Measurement Principle
Micron superparamagnetic particles platform With alkaline phosphatase (ALP) labeled reagents And AMPPD substrate
Sample Assembly
-Sample Feeder
Continuous sample loading and offloading
-Sample positions
50

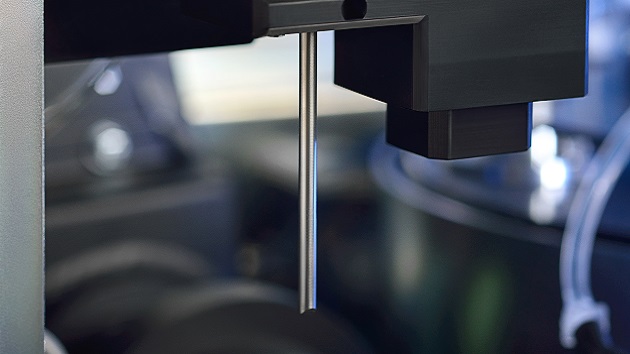

-Sample Probe
Steel probe, liquid level detection, clot detection, Horizontal and vertical collision protection
-Sample Volume
10~200ul, with increment of 1 ul
-Sample Dilution
Automatic dilution with 1:2-1:40
Reagent Assembly
Reagent Disk
15 reagent positions, continuous loading, real-time mixing for magnetic particles
-Cooling System
2-8°C
-Reagent Pack
50 tests/pack, 100 tests/pack
-Reagent Scanning
Built-in/External bar code reader
-Reagent Probe
Steel probe, liquid level detection, clot detection, Horizontal and vertical collision protection
-Reagent Volume
20-200ul with increment of Tul
Substrate System
-Substrate Bottle
300/500 tests per bottle, bottom piercing
-Substrate Loading
Capable of continuous loading during testing
-Substrate Heating
Constant heating
-Aspiration Volume 200ul

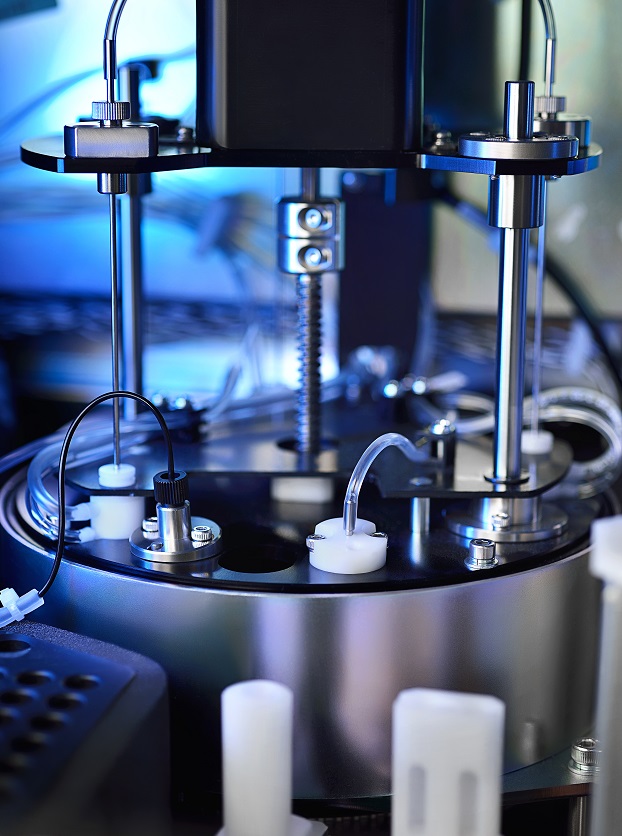

Magnetic separation unit
-Separation Assembly
4-phase magnetic separation
-Temperature
Accuracy:37±0.3℃
Measurement and Reaction System
-Detection Mode
Photon counting
-Signal Detector
Photomultiplier (PMT) photo counter
-PMT Calibration
LED reference module
-Incubation positions
82
-Temperature
Accuracy:37±0.3 °C
-Mixing Unit
Non-touch vortexer mixing
Cuvette Loading and Waste Collection
-Cuvette
Disposable plastic cuvette
-Cuvette Loading
88 bowls per tray, 2 trays can be loaded in one batch,
continuous loading and offloading
-Waste collection
Waste container, 200 bowls per box
Working conditions
-Power Supply
110V/115V-, 60Hz: 220V-240V, 50Hz, 220V/230V, 60Hz
-Input Power
1000VA
-Operating Temperature 15~30°C
-Relative Humidity 35%RH-85%RH, without condensation
-Dimension
860mm*740mm*560mm (W*D*H)
-Weight 145Kg
-Altitude Height -400m~3000m
