Simple yet Robust

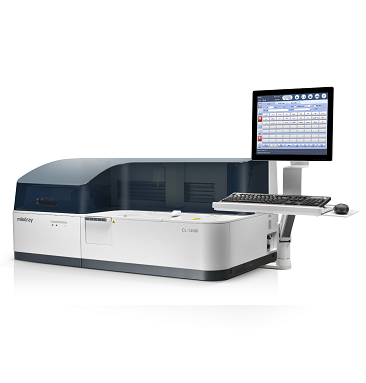

CL-1200i is a robust and simple-to-use chemiluminescence analyzer with a throughput of up to 180 tests per hour. Though in a small benchtop package, it has a large onboard capacity of 25 reagents and 60 samples, and supports non-stop refill of samples, reagents and consumables during testing. By integrating the reliable CLIA technology with latest electrical and software improvement, CL-1200i enables easy operation and brings confident diagnosis faster than ever.

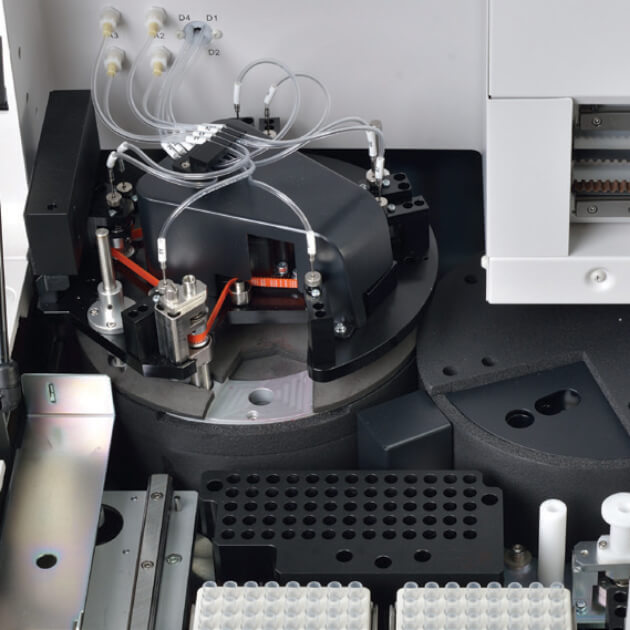

-Enhanced Reaction System
4-phase magnetic separation with precisely controlled temperature
Consistent performance reliability with enhanced PMT detection system
Non-touch vortexer mixing for reaction solution without any contamination

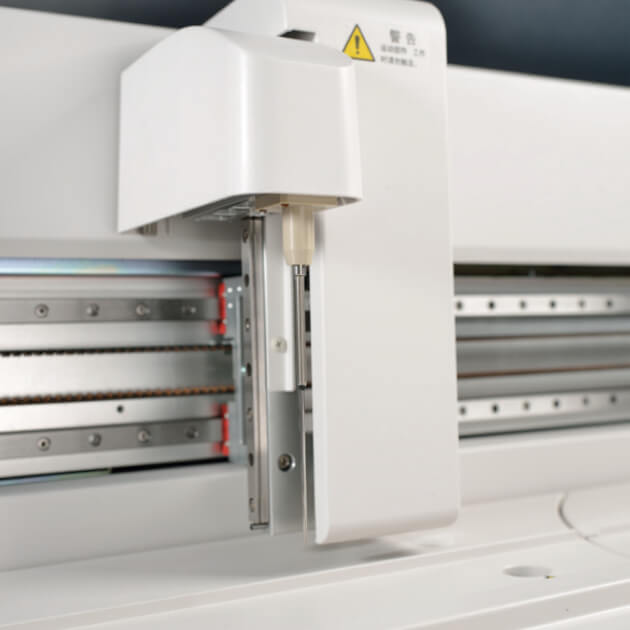

-Sample & Reagent Probe
Precisely controlled syringe motors offer high precision aspiration
Intelligent liquid level detection clot detection, vertical and horizontal collision protection
Efficient interior & exterior probe wash with high pressure wash buffer
Programmable enhanced probe wash with detergent
-Sample Handling
Samples loading and offloading by sample racks
Unified sample racks with detachable adaptor
Rack status real-time indicating numbers
STAT samples prioritization
-Consumables Management
Random access for cuvette loading without pause or stop
88*2 cuvettes in one batch, 200 cuvettes per waste bag
Cuvettes & waste bag status real-time indicating
-Reagent & Substrate Handling
Easy for reagent & substrate handling, liquid reagents ready-to-use
2℃ - 8℃ non-stop refrigerated reagent carousel featured 25 positions
Same reagent pack size with CL-2000i (50 tests/100 tests per pack)
Reagents stable on board for up to 56 days
-Chemiluminescence Immunoassay Reagent
Technical Specifications
General Information
Throughput Up to 180 tests/hour Measurement Principle Micron superparamagnetic particles platform with alkaline phosphatase (ALP) labeled reagents and AMPPD substrate
Sample Assembly
-Sample Feeder
Continuous sample loading and offloading by sample racks
-Sample Rack
10 positions per rack, same as BS-800/B5-2000/CL-2000i series
-Sample Capacity
Up to 60 samples in one batch
-Sample Probe
Steel probe, liquid level detection, clot detection, horizontal and vertical collision protection
-Sample Volume
10µl-200µl, with increment of 1µl
-Sample Dilution
Automatic dilution with 1:2~1:80
Reagent Assembly
-Reagent Disk
25 reagent positions, continuous loading, real-time mixing for magnetic particles
-Cooling System
2°C-8°C
-Reagent Pack
50 tests per pack, 100 tests per pack
-Reagent Scanning
Built-in/external bar code reader scanning
-Reagent Probe
Steel probe, liquid level detection, bubble detection, horizontal and vertical collision protection
-Reagent Volume
20µl~200µl, with increment of 1µl
Substrate System
-Substrate Bottle
300/500 tests per bottle, bottom piercing
-Substrate Loading
Capable of continuous loading during testing
-Substrate Heating Constant heating
-Aspiration Volume
200µl
Magnetic Separation Unit Separation Assembly
4-phase magnetic separation
-Temperature
Accuracy:37±0.3°C, fluctuation: ±0.2°C
Measurement and Reaction System
-Detection Mode
Photon counting
-Signal Detector
Photomultiplier (PMT) photon counter
-PMT Calibration
LED reference module
-Reaction Carousel 75 positions
-Temperature
Accuracy:37±0.3°C, fluctuation: ±0.2°C
-Mixing Unit
Non-touch vortexer mixing
Cuvette Loading and Waste Collection
-Cuvette
Disposable plastic cuvette
-Cuvette Loading
88 cuvettes per tray, two trays can be loaded in one batch, continuous loading and offloading
-Waste Collection
Waste container, 185 cuvettes per box
Working Conditions
-Power Supply
110V/115V, 60Hz; 220V-240V~, 50Hz, 220V/230V, 60Hz
-Input Power
2000VA
-Operating Temperature
15°C-30℃
-Relative Humidity
35%RH~80%RH, without condensation
-Dimension
Main Unit:1400mm*760mm*600mm (W*D*H)
Weight:225kg
-Altitude Height
-400m~4000m
