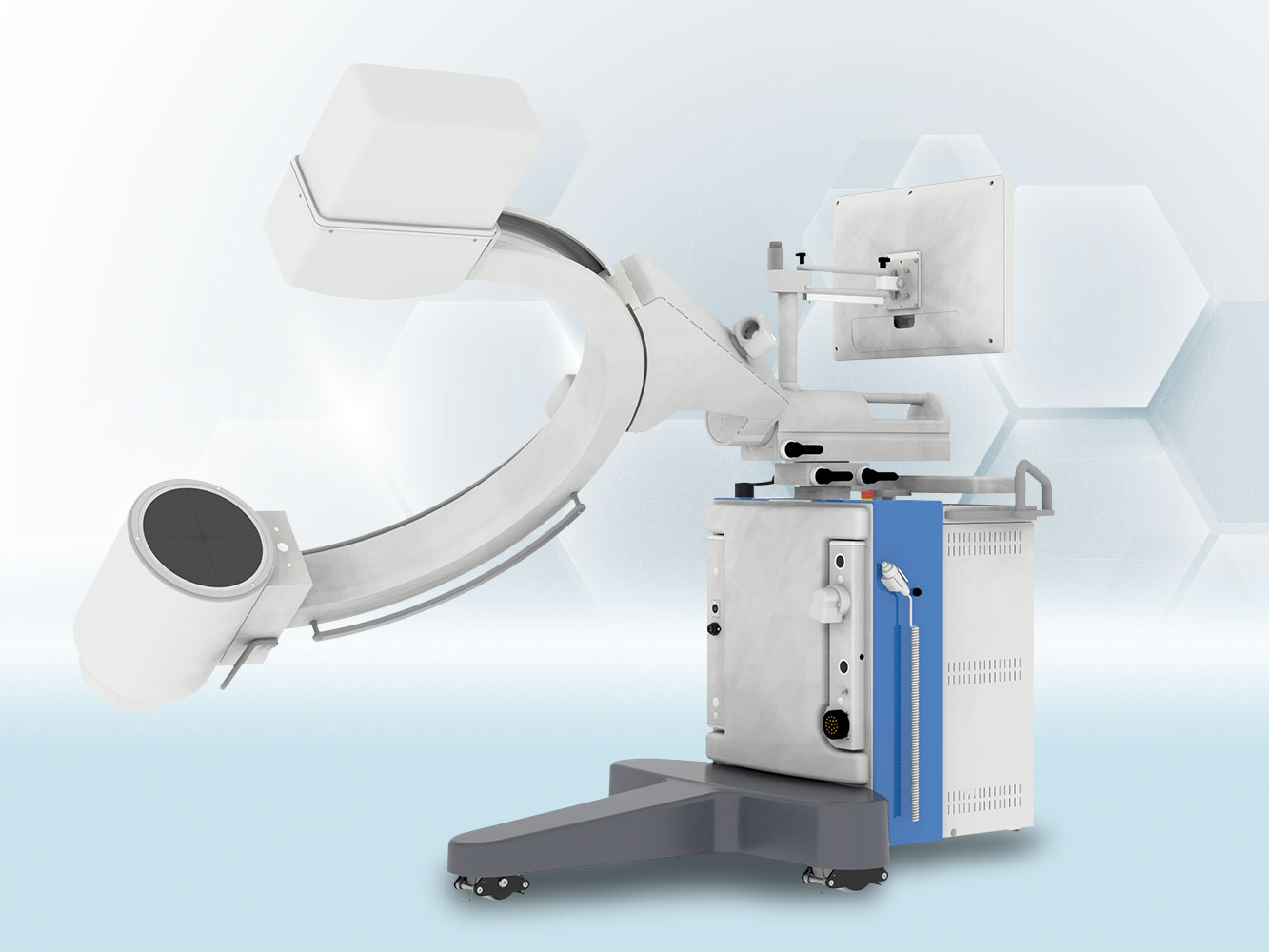

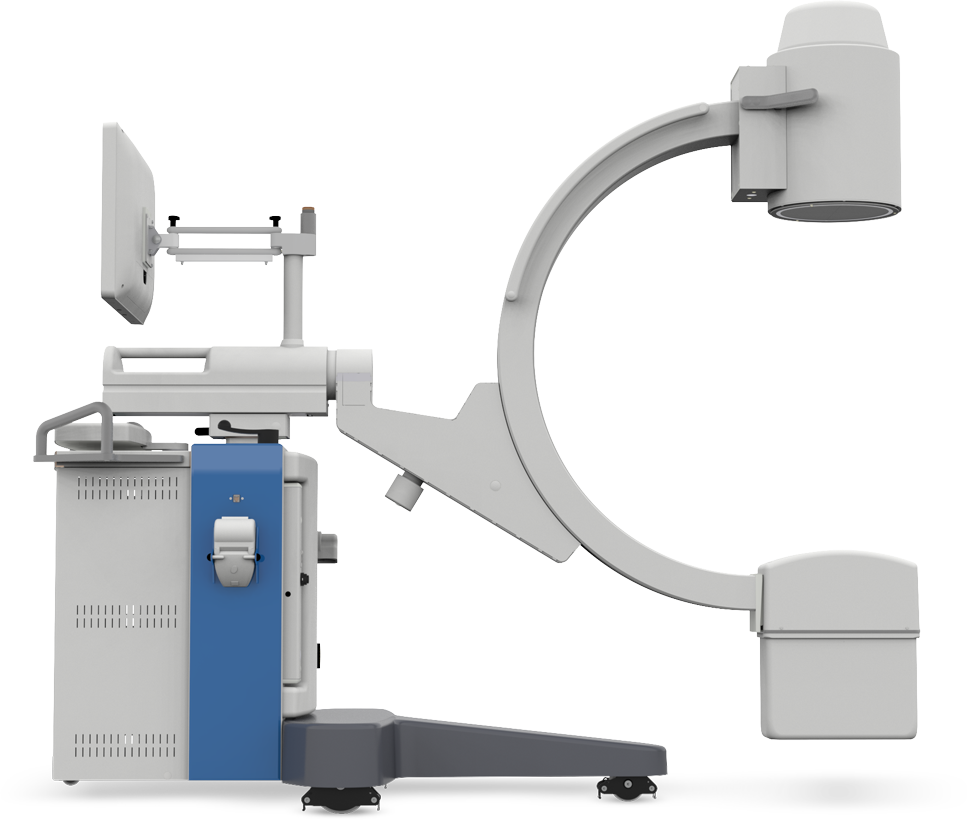

The TCA 6 is a highly optimized mobile device for interventional fluoroscopy. This optimization arises from the search for the best compromise between the salient features of this instrument: dimensions, weight, balance, ease of manoeuvre, radiological characteristics, image quality, safety.
TCA 6 is equipped with a digital system for the images acquisition that allows even the modification in post-processing, the images filing and possible sending to the hospital network or to external media (CD / DVD or USB) according to the DICOM protocol.

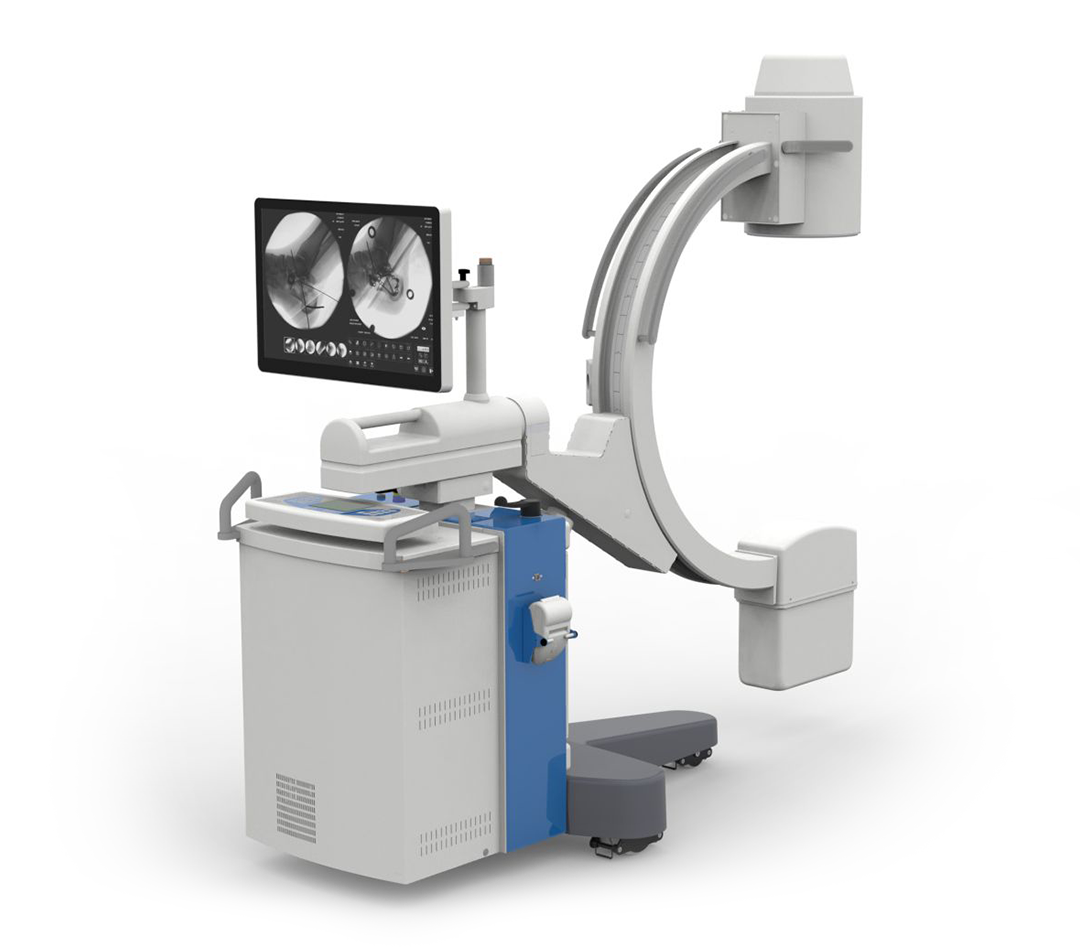

Versione “Compact” con monitor installato a bordo
macchina, senza carrello portamonitor.
“Compact” version with monitor mounted on the “C”,
without monitor trolley.

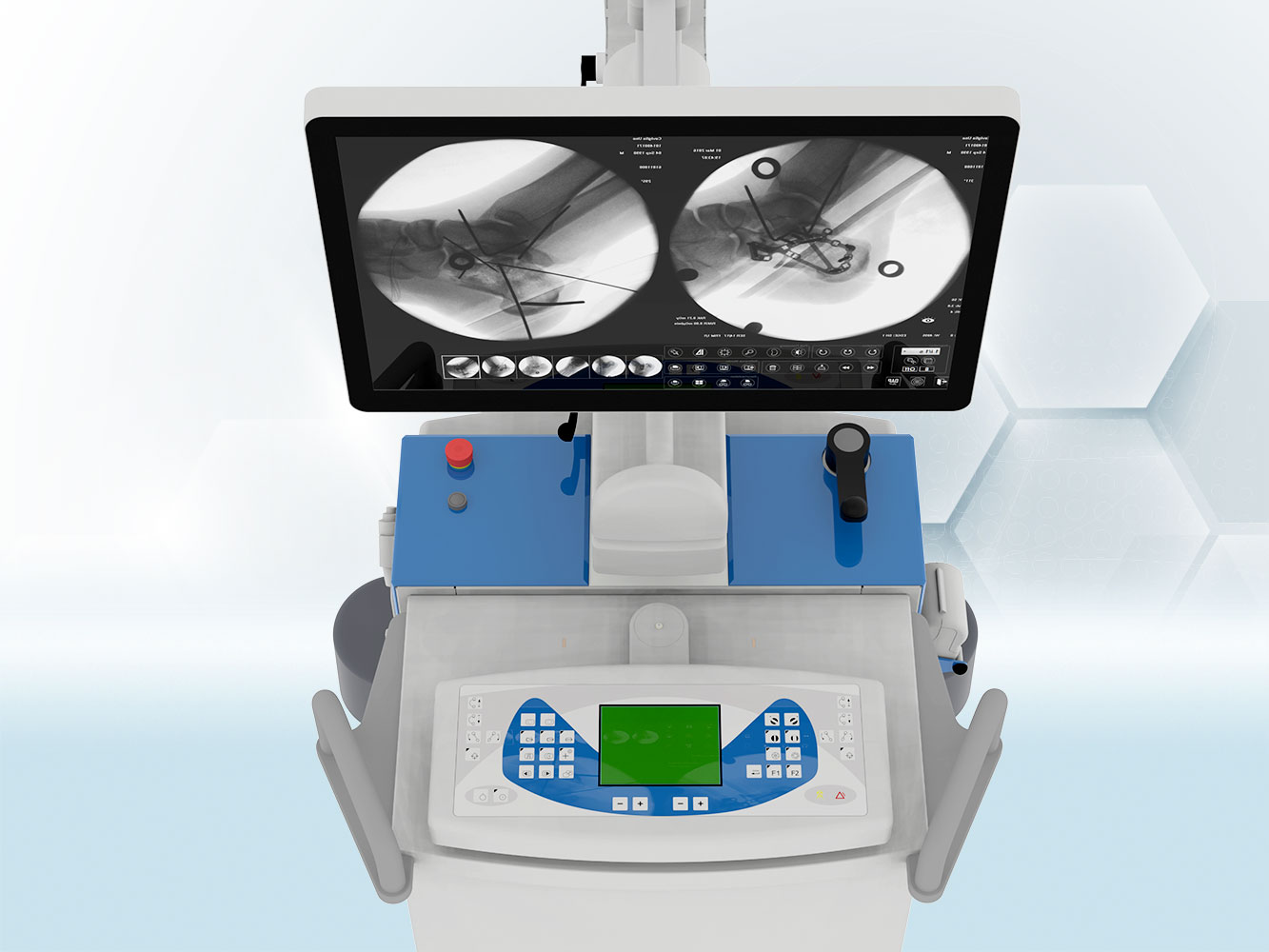

Tastiera ergonomica con rotazione +/-60° composta
da display graico touch screen.
Ergonomic and +/-60° rotating keyboard with touch
screen graphic display.
Ruote orientabili (0°-45°-90°) + freno
Orientable wheels (0°-45°-90°) + brake
Azionamento extra corsa verticale.
Extra vertical run push button
The TCA6 is a highly optimised mobile
System for surgical luoroscopy. The optimisation is the pursuit of the best compromise
within the peculiar features of such an instrument: dimensions, weight, balancing, ease of
manoeuvre, X-ray features, image quality, safety.
The large achievable distance of the
SID axis from the unit’s stand, the noticeable
motorised column elevation, reaching 500 millimetres, the wide C-arm’s insertion and span
spaces, the ergonomic +/- 60° rotating keyboard, enable the best operational lexibility and
satisfy the need of the user in the operating
theatre.
Moreover the “Compact” Version,
without the monitor trolley, but with the LCD
monitor mounted on the “C”, allows further
reduction of the volumes in the conines of the
sterile area
The TCA6 can be equipped with X-Ray
monobloc with ixed or rotating anode and
with 9” or 12” I.I. tube.
The TCA6 can be itted with a LASER
targeting system that, allows the identiication
of the beam centre, through a light cross: by
means of this device, the preliminary positioning of the luoroscopy system is possible, without x-ray emission.
The TCA6 can be equipped with
1Kx1K CCD Camera and image memory banks,
of 1 (LIH), 330, 2700, ……., non volatile frames.
All the memories are equipped with their own
keyboard for data patient editing
Furthermore the unit can be itted
with the Digital Imaging System for the processing of the luoroscopic image: the large capacity of its main memory element, ( of more
than 40,000 frames), enables the storage of the
produced diagnostic/operative documentation in the very many working conditions.
It exists, in addition, the possibility to input text descriptions in the image sequences, about
the all data relevant to the hospital, physician, department, patient and to the examination
itself. It is also possible, as an optional, to send, into the hospital DICOM standard data
network, the obtained and recorded images/ sequences, or to store them on a permanent
archive, as CD-ROM. An optional interface of type DICOM-Printer, enables the forwarding of
the images, to any printing station connected to the DICOM network.

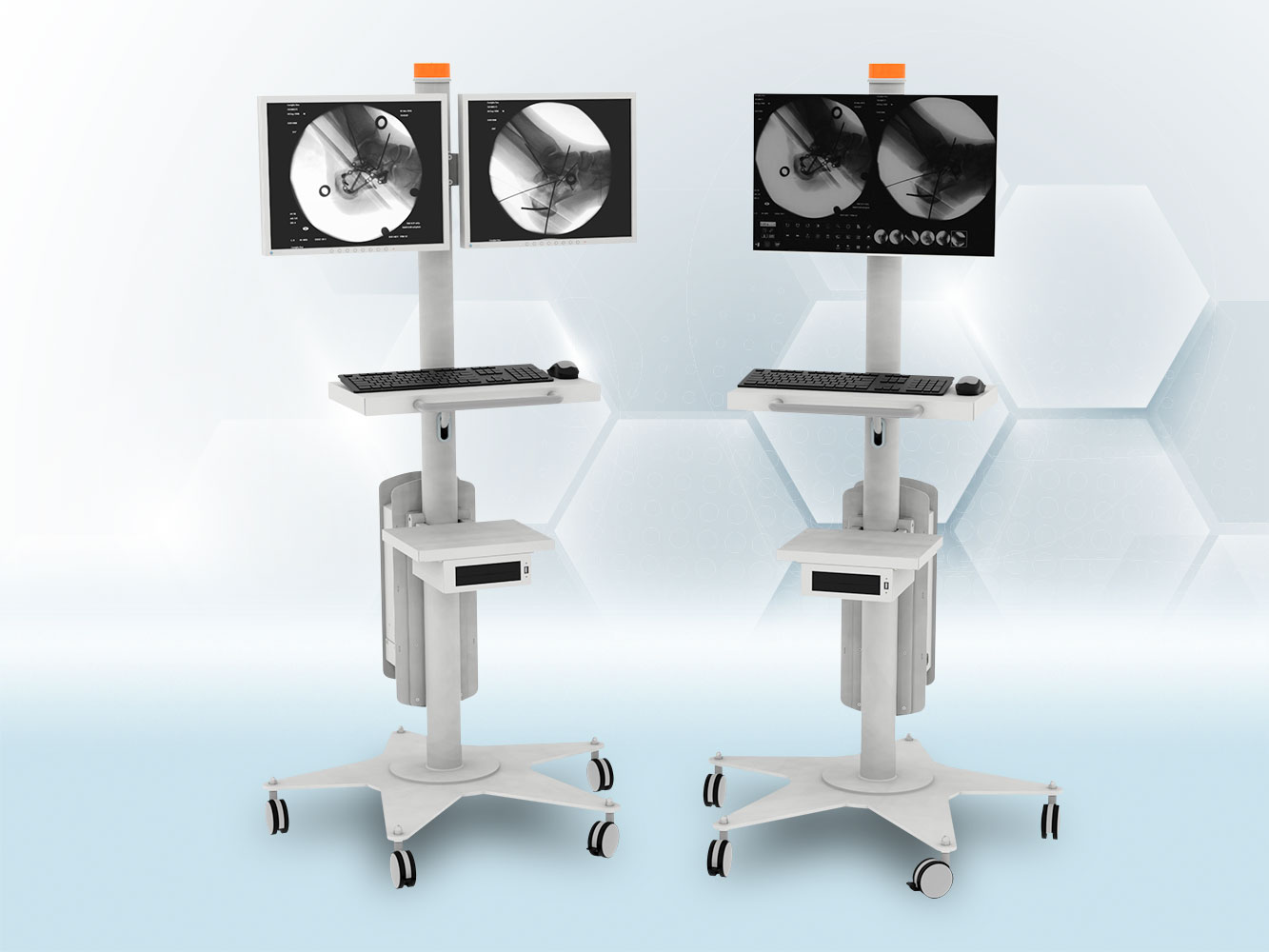

The monitor trolley is easily separable
from the main C-arm stand by means of a connector. The monitor trolley, once disconnected
from the main stand, can be taken outside of
the operating theatre, enabling the reviewing
of the all recorded sequences and the performing of further post-processing procedures.
A scrupulous unit’s design gives the
possibility, in the everyday use, of an easy, simple and e cient sterilisation of the equipment’s
surfaces and of a fast and safe placement/removal of the sterile covers.
