Model:AVS125 (125 litres)
Model:AVS216 (216 litres)
Model:AVS250 (250 litres)
Model:AVS360 (360 litres)
Model:AVS490 (490 litres)
Model:AVS612 (612 litres)
Model:AVS735 (735 litres)

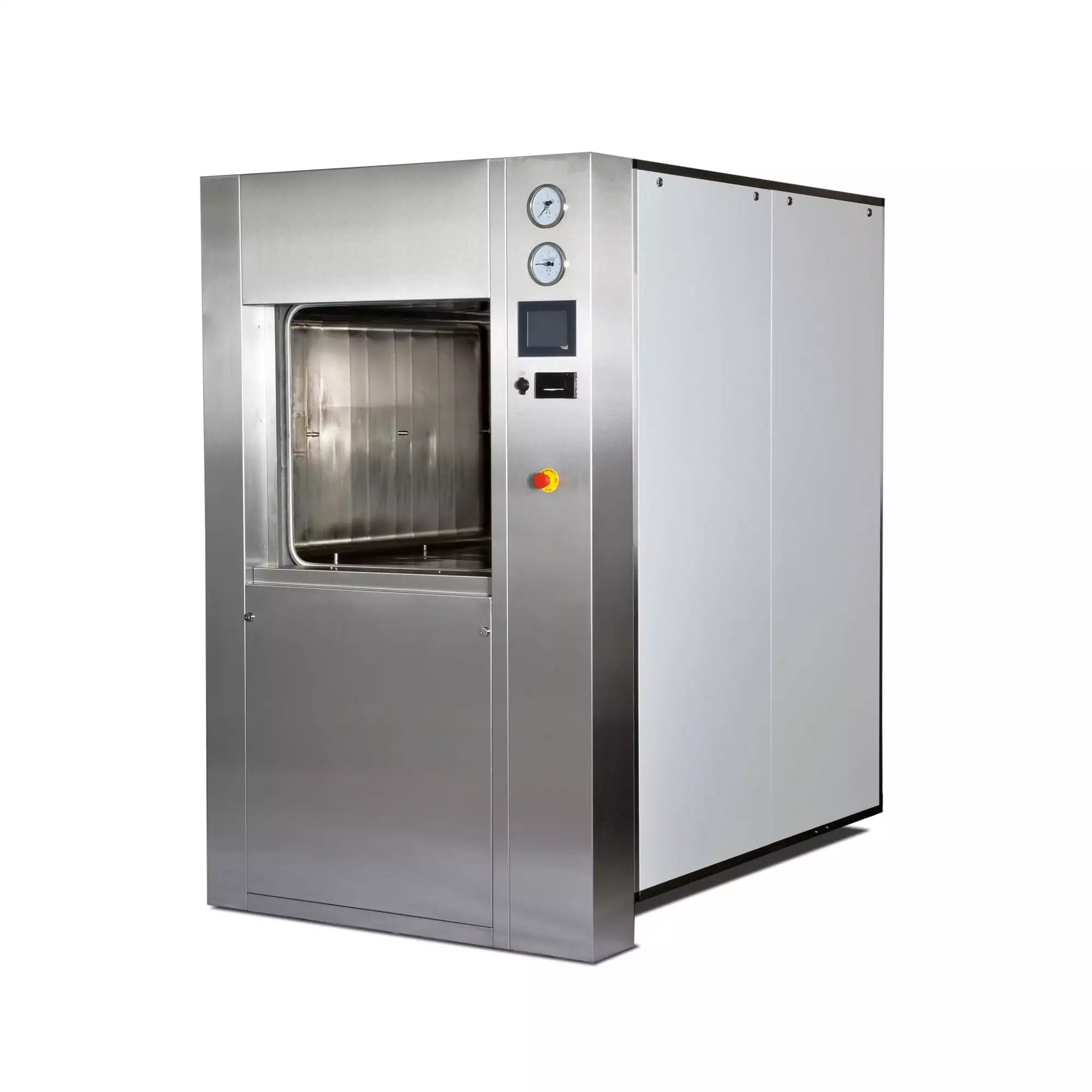

The 125 - 735 litre SQUARE autoclave range is easily customizable and with a range of different chamber sizes. The SQUARE range is Astell's most popular range of square chambered autoclaves, capable of sterilizing almost anything (additional options may be required).
stell Scientific offer a comprehensive standard range of square section autoclave chamber sizes, each one designed and manufactured with precision and care. During and after manufacturer all pressure vessels are stage inspected, hydraulically tested and stamped by a notified body. Astell pressure vessels are manufactured to PED, ASME U standards and carry numerous approvals for many other countries.
Standard SQUARE pressure vessel sizes:
400x400mm
500x500mm
600x600mm
700x700mm
with depths from 500mm to 2000mm
Astell also have the ability to manufacture pressure vessels to meet customer requirements – a great advantage over many other autoclave manufacturers. Contact us for details.
Autoclave pressure vessels are available in polished, electro-polished or bead blast chamber finishes, with each designed to ensure the base of the chamber creates a positive path to the drain for condensate. All components in contact with steam are manufactured from 316 stainless steel (other materials can be used on request), and as standard all connections are screwed, but pressure vessels with welded Tri-clover fittings to accept sanitary fittings can be accommodated should the customer require this. Finally, all Astell pressure vessels are fitted with bosses to accept rails for loading equipment and/or a standard base shelf.
Where a jacketed chamber is necessary, for the provision of superior drying for example (i.e. sterilizing wrapped instruments or fabrics), Astell pressure vessels are fully jacketed (not sectional as with some manufacturers) providing the best heat distribution and maximum surface area for quick and efficient cooling. Jacketed pressure vessels are designed to ensure full drainage after a cooling cycle to reduce water hammer.
Astell offers a range of additional options which include Simple or Advanced Vacuum
AVC001 - ADVANCED 'PULSAR' VACUUM
Suitable for all units with an integral steam generator (or external steam supply), the AVC001 vacuum option is Astell’s most advanced method of air removal. It’s ideal for sterilizing porous materials and other loads where air pockets could easily form. An AVC001 vacuum cycle starts with a pre vacuum which is followed by negative and positive pulsing. By introducing steam between vacuum pulses, air is forced out of the autoclave chamber under pressure; the best method for removing air from porous loads and discard waste. Following the sterilization stage, a post vacuum removes the steam from the chamber. In combination with the jacket option, a drying stage then begins to ensure loads are touch dry upon removal.
AVC002 - PRE AND POST ‘SIMPLE’ VACUUM
The AVC002 option is Astell’s basic vacuum system and is only suitable for standard autoclaves with the heaters in the chamber, or direct steam models (see Direct steam models). The cycle begins with a pre vacuum, reducing the chamber pressure and removing the majority of air. A free steaming/ air purge stage then begins. After the sterilizing stage is complete, water in the bottom of the chamber is expelled and then a post vacuum takes place, removing any remaining steam from the chamber and cooling the load. Please note: the AVC002 is a simple vacuum and as such does not have the drying capability of the AVC001 & Jacket option.
Heated Jackets
Typical loads where a jacket would be required for drying include wrapped instruments or porous fabrics. Heated jackets are available on all Astell autoclaves over 95 litres with integral steam generators or with a direct steam supply. They add a secondary external layer to the autoclave allowing steam to circulate outside the sterilization chamber whilst insulating the main vessel. When a jacket is fitted, its effect is two-fold.
Firstly, when sterilizing fabrics and porous loads, the jacket is kept constantly heated which means that the chamber maintains a residual temperature between cycles, avoiding excessive condensate forming inside the chamber and wetting the load when steam enters the vessel. Secondly, after preventing condensation forming at the beginning of a cycle, at the end of a cycle the jacket stays running during a final vacuum, which then evaporates any remaining liquid, allowing porous loads to be touch dry when they are removed at the end of the cycle.
Cooling options.
-Compatibility
FAN COOLING (EXTERNAL):
A powerful, externally mounted fan helps to reduce the cooling down stage of a cycle. Like all Astell’s cooling options, the operation of external fan system is controlled via the colour touch screen controller. This option is available on all models (except for those fitted with a cooled or heated jacket).
FAN COOLING (INTERNAL):
A magnetically driven internal fan is situated in the chamber itself, which creates turbulence. The fan needs to be fitted in conjunction with Water Cooling (Jacket) in order to be effective, and these combined options provide one of the most efficient ways of cooling the chamber and load. The dual system is therefore ideal in situations where large fluid loads need to be processed as quickly as possible. Internal Fan Cooling, when used in conjunction with Water Coolng (Jacket), Air Ballast and Load Sensed Timing makes cooling times up to 70% faster than a standard autoclave fitted with no cooling system.
WATER COOLING (COILS):
Water is circulated through cooling coils in direct contact with the outside of the autoclave chamber, resulting in a substantial reduction of cooling time.
WATER COOLING (JACKET):
This option quickly and effectively cools bottled media and other fluid loads. After sterilization water is circulated in direct contact with the outside of the autoclave chamber, resulting in the rapid decrease of the internal chamber temperature. The effectiveness of Jacket Water Cooling can be further enhanced if the autoclave is fitted with Internal Fan Cooling (see tab for details).
AUTODRAIN:
For use in Heaters in Chamber autoclaves only. This feature can be selected on any cycle and will substantially decrease the time required to cool the chamber to a temperature where the door can be safely opened, especially when used in conjunction with the Water Cooling (Coils) or External Fan Cooling. At a pre-selected pressure during the cooling phase of the cycle, any remaining water in the chamber is evacuated to the drain.
-Available with automatic or manual door operation, this range can also form the basis of a double door or pass-though autoclave if required.
Double ended or pass-through autoclaves are a special type of steam sterilizer typically used in high-containment laboratories dealing with dangerous pathogens and microorganisms, where a containment area and/or ‘clean room’ are completely separated. Facilities of this nature are usually categorised under four Biosafety levels, the lowest being BSL-1 and the highest BSL-4.
Because a pass-through autoclave needs to be accessed from both sides it may also be referred to as a double door autoclave depending on its final design, installation and operation.

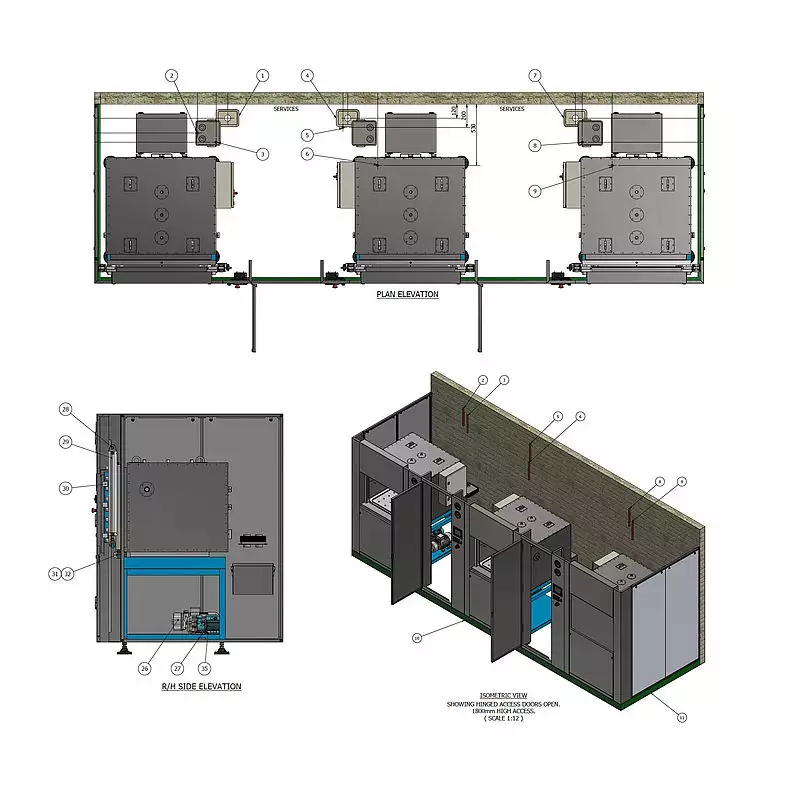

At Astell, we have the experience to design and manufacture custom autoclaves, as our Barts Cancer institute case study proves, and we can confidently meet the most challenging design specifications and customer application requirements. One such example is the Biosafety designed pass-through autoclave (pictured top left), which in this case is interfaced to a Class III BSC/Glovebox.
This custom large capacity autoclave had to meet the high containment design requirements specified by the architectural engineering firm building the facility, whilst meeting the functionality requested by the end users.
In consultation, Astell paid particular attention to water consumption, effluent decontamination and facilities integration, whilst considering practicalities such as direction of workflow, servicing access requirements, validation and installation, all of which were addressed prior to manufacture of this double ended square section autoclave.

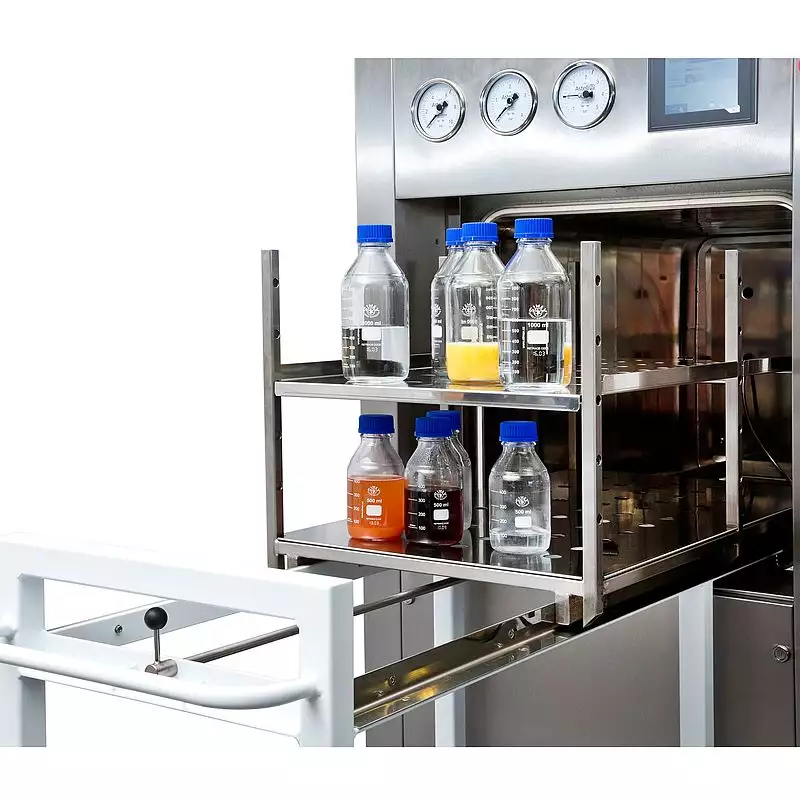

As with our other autoclaves, Astell provide a selection of options to ensure your double ended pass-through autoclave operates efficiently for its chosen application. These may include such things as stainless steel pipework, a stand-alone steam generator, automatic vertical or sideways opening doors, or a customized loading system using a trolley or truck for large or heavy items.
Another key requirement for the double door autoclave is the use of SPF (Specific Pathogen Free) seals, which ensures there is no risk of cross-contamination between the sterile and non-sterile areas of operation. In addition, Astell autoclaves can be supplied with systems to ensure ‘effluent retention’ and ‘exhaust filtration’ to meet the requirements of BSL-3.
Astell's square section autoclaves are regularly used in scientific research laboratories, production process manufacturing, veterinary and medical healthcare, food and beverage industries and many more.

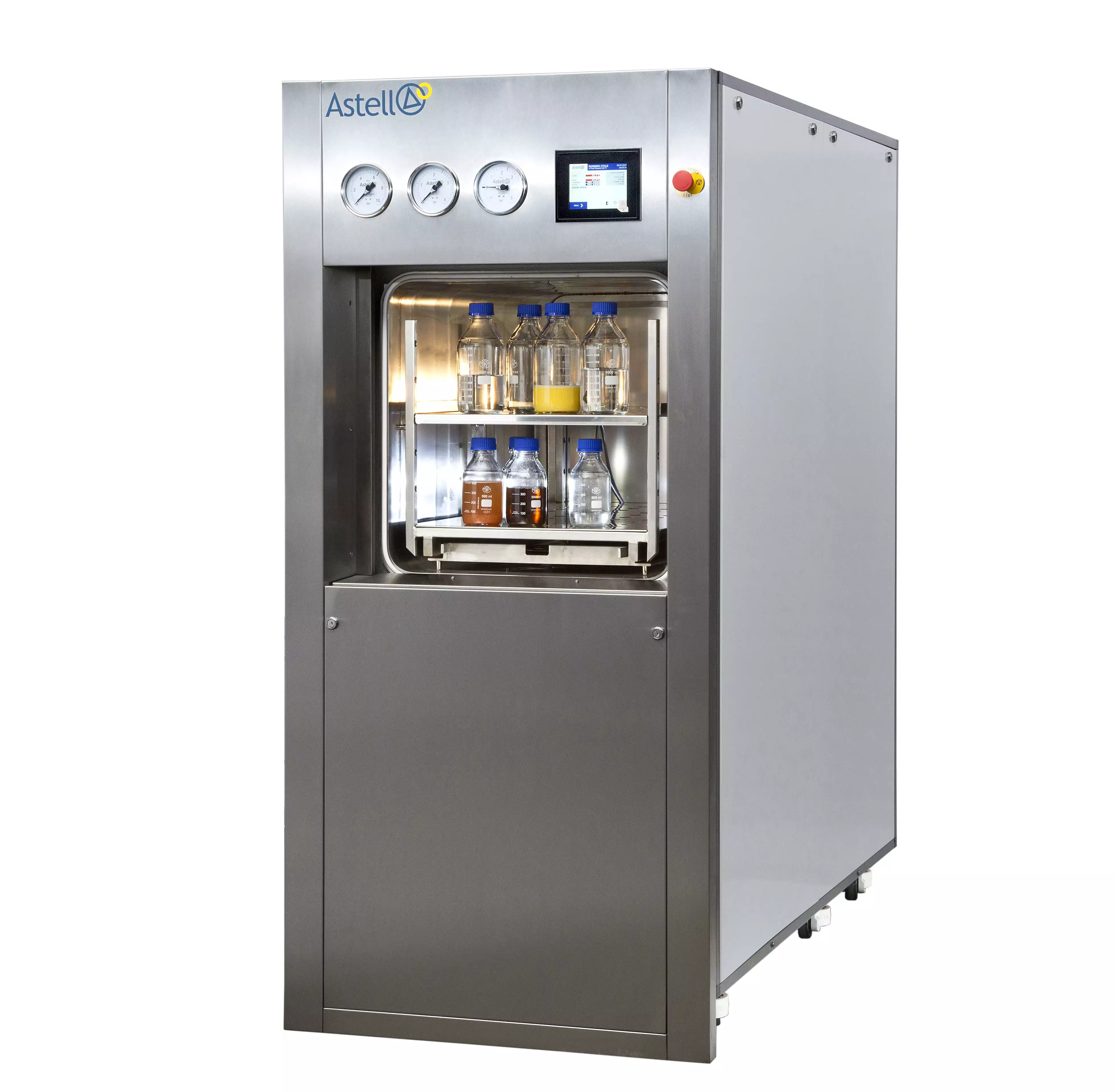

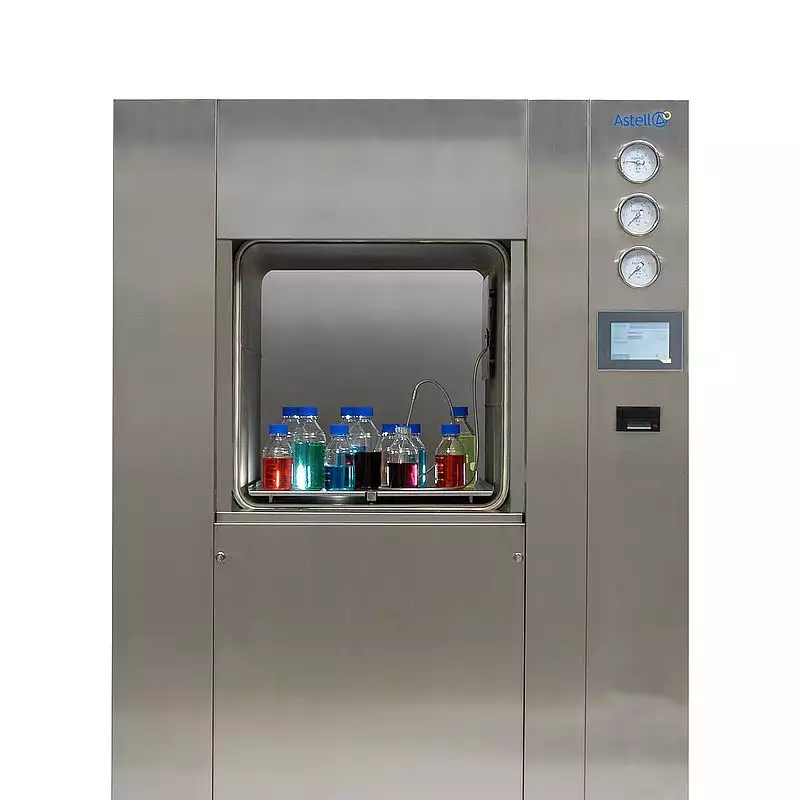

-The SQUARE Range from Astell Scientific is available in capacities from 125 to 735 litres. The SQUARE range is capable of sterilizing various items as standard and is upgradable to sterilize almost anything. The range is avalible in 125, 216, 250, 360, 490, 612 or 735 litre capacity.
This range is designed with flexibility in mind - the standard unit starts off capable of sterilizing a wide variety of items and then for loads that are a little more challenging, additional options can be added to give the unit even more versatility.
Features:
-316 stainless steel electropolished chamber
-Automatic or manual sliding door operation
-Calibration and Validation available
-FDA 21 CFR part 11 software option available
-Cooling Lock
-Five password levels to stop lower level users making changes
-Five pre-programmed cycles and up to 50 available

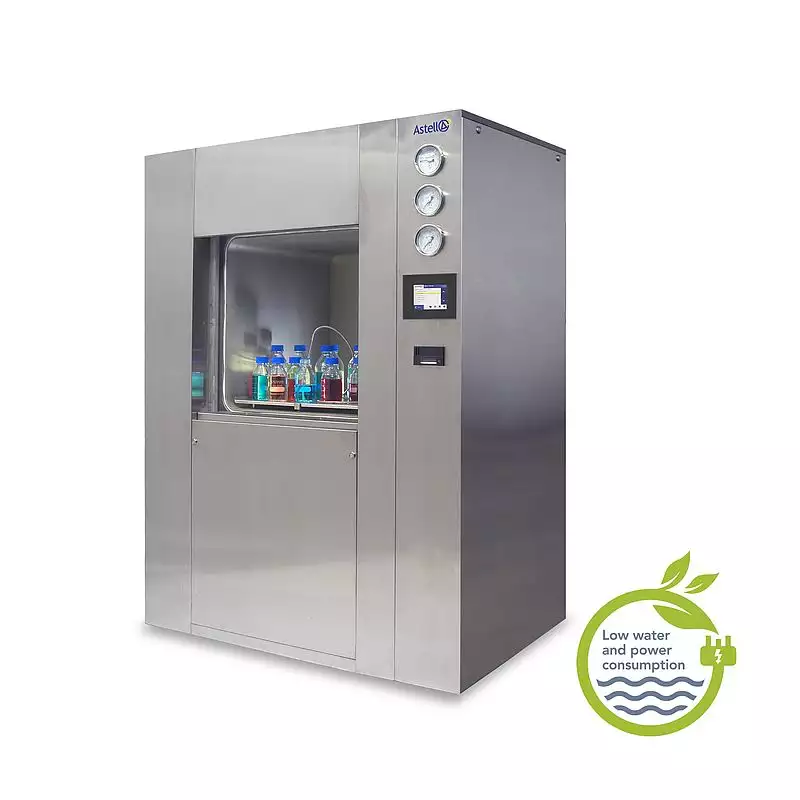

-Optimised for low water and power consumption
-Optional Stainless Steel Panelwork
-Over Temperature Protection
-Pressure Gauge
-Standard Astell safety features
-Timed/Pulsed Free Steaming
-Fully programmable 5.7" Colour Touch Screen controller
-USB interface for downloading controller data
-Validation Port
