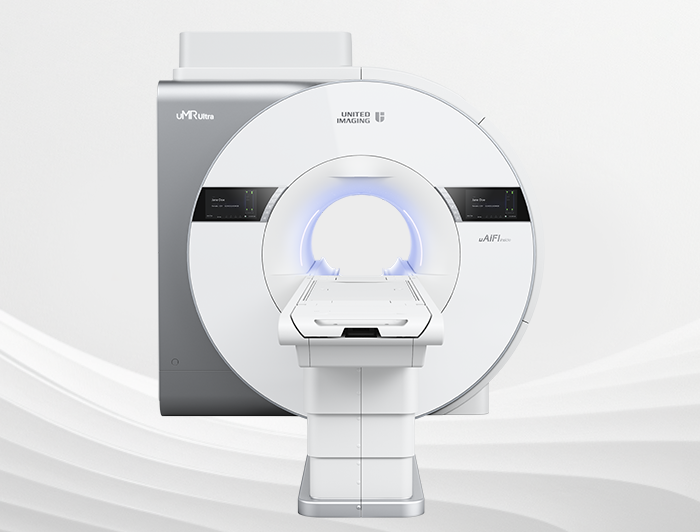

The uMR Ultra is equipped with cutting-edge technology that delivers exceptional imaging capabilities, ensuring precise and consistent results across a wide range of clinical applications. From head to toe, its advanced imaging system provides clarity and accuracy, forming the cornerstone of confident diagnoses. Supported by state-of-the-art hardware and innovative software, the uMR Ultra enhances clinical workflows and contributes to both breakthrough discoveries and improved patient care.
Ultra-powerful RF system
The breakthrough system featuring up to 192 independent RF channels, enabling high - throughput data stream parallel transmission.
Ultra-high gradient performance
Ultra-high channel full coil suite
Ultra-AI spatiotemporal processing
Embrace new possibilities
* Technical Details :-
* Magnet System:-
Field Strength:3 Tesla
Bore size:70 cm
"Liquid helium consumption*
*Note: under normal operating conditions" : Zero
* Gradient Performance :- :
Max. uniaxial gradient strength (X/Y/Z axis can achieve simultaneously):100 mT/m
Max. uniaxial slew rate (X/Y/Z axis can achieve simultaneously):200 T/m/s
Max. FOV:55 cm (X and Y directions)
* RF System :- :
Number of transmit channels:2
Maximum number of channels that can be used simultaneously:240
Number of independent receiver channels that can be used simultaneously in one single scan in one FOV:Up to 192
* Installation Information :- :
Scanning room area (minimum):22 m2
Control room area (minimum):3.8 m2
