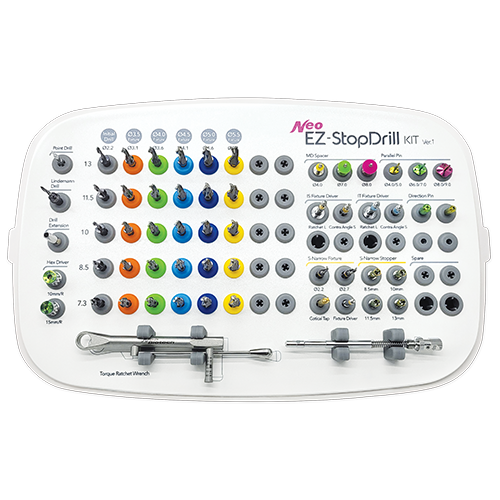

EZ-StopDrill Kit
A variety of surgical drills are available for each fixture diameter and length. And built-in stopper design eliminates the need for a separate stopper to enhance treatment convenience.
Features

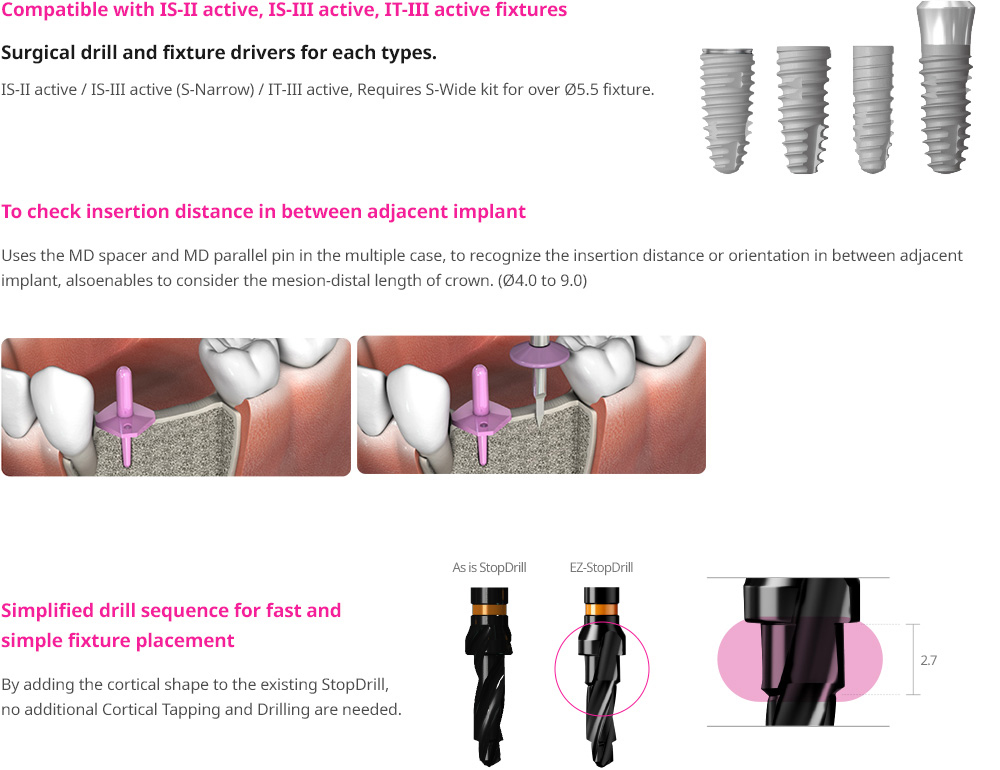

-Compatible with IS-II active, IS-III active, IT-III active fixtures
Surgical drill and fixture drivers for each types.
IS-II active / IS-III active (S-Narrow) / IT-III active, Requires S-Wide kit for over Ø5.5 fixture.
-To check insertion distance in between adjacent implant
Uses the MD spacer and MD parallel pin in the multiple case, to recognize the insertion distance or orientation in between adjacent implant, alsoenables to consider the mesion-distal length of crown. (04.0 to 9.0)
-Simplified drill sequence for fast and simple fixture placement
By adding the cortical shape to the existing StopDrill, no additional Cortical Tapping and Drilling are needed.
Components
-Point Drill
-Stop Drill
-Lindemann Drill
-IS Fixture Driver
-IT Fixture Driver
-Direction Pin
-MD Spacer
-MD Parallel Pin
-Drill Extension
-Hex Driver
-Torque Ratchet
-Driver Holder & Depth Gauge
-S-Narrow Surgical Drill
-S-Narrow Cortical Tap
-S-Narrow Drill Stopper
-S-Narrow Fixture Driver

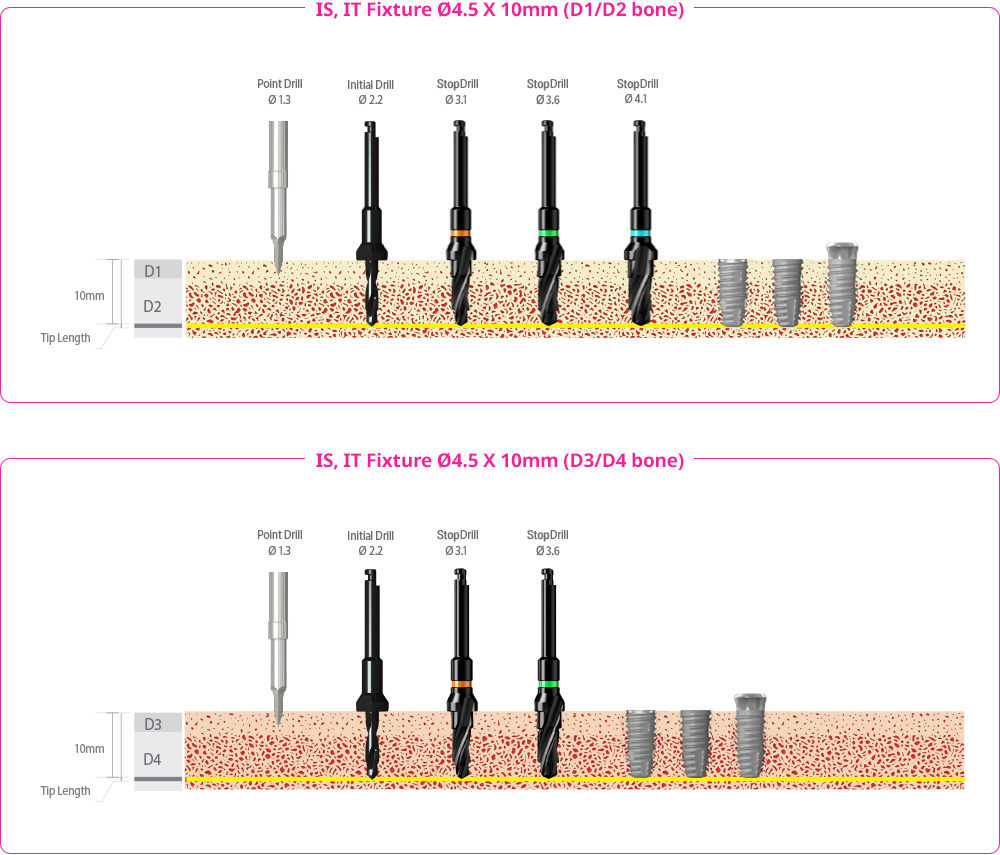

-Drilling Sequence
