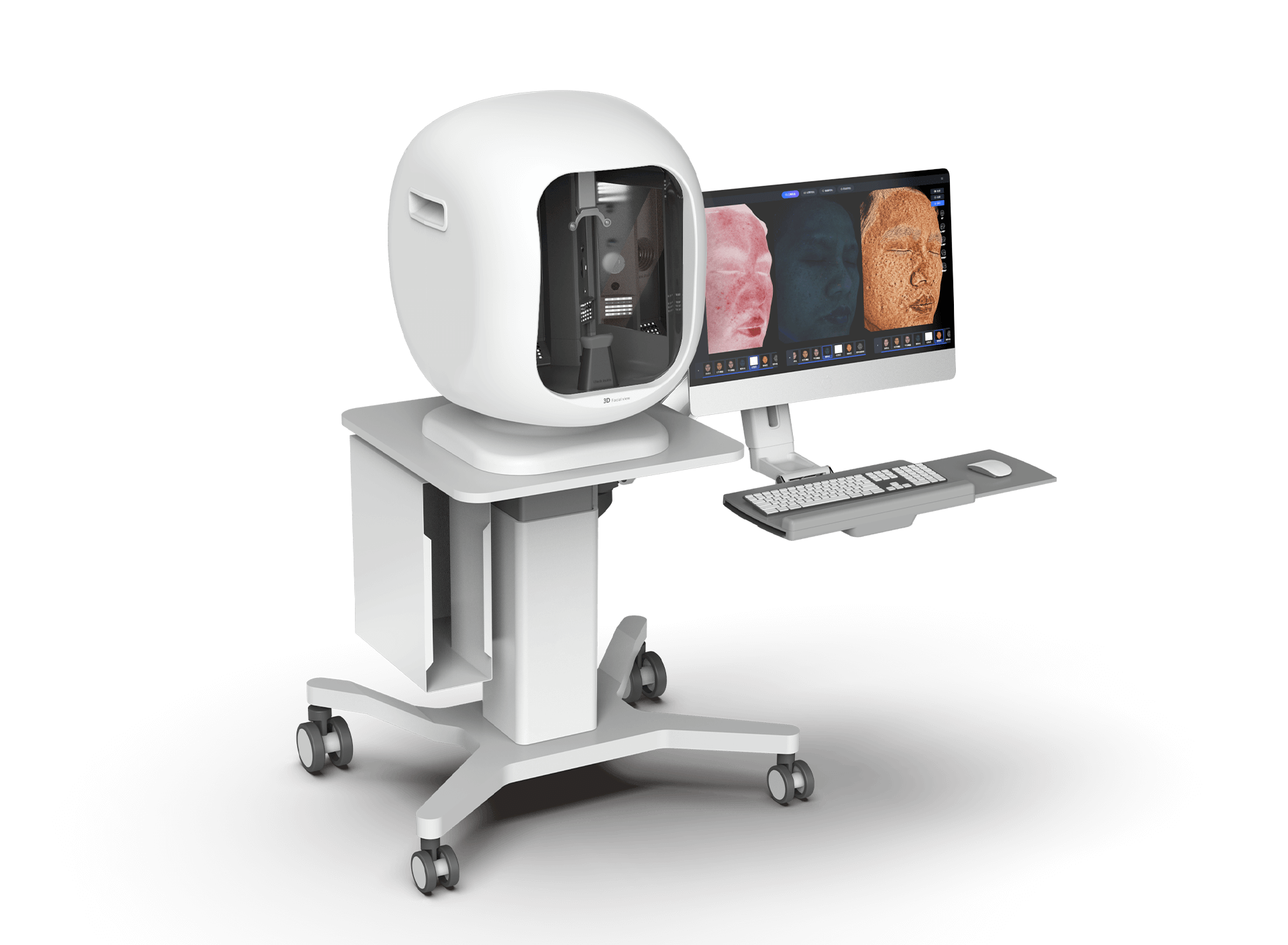

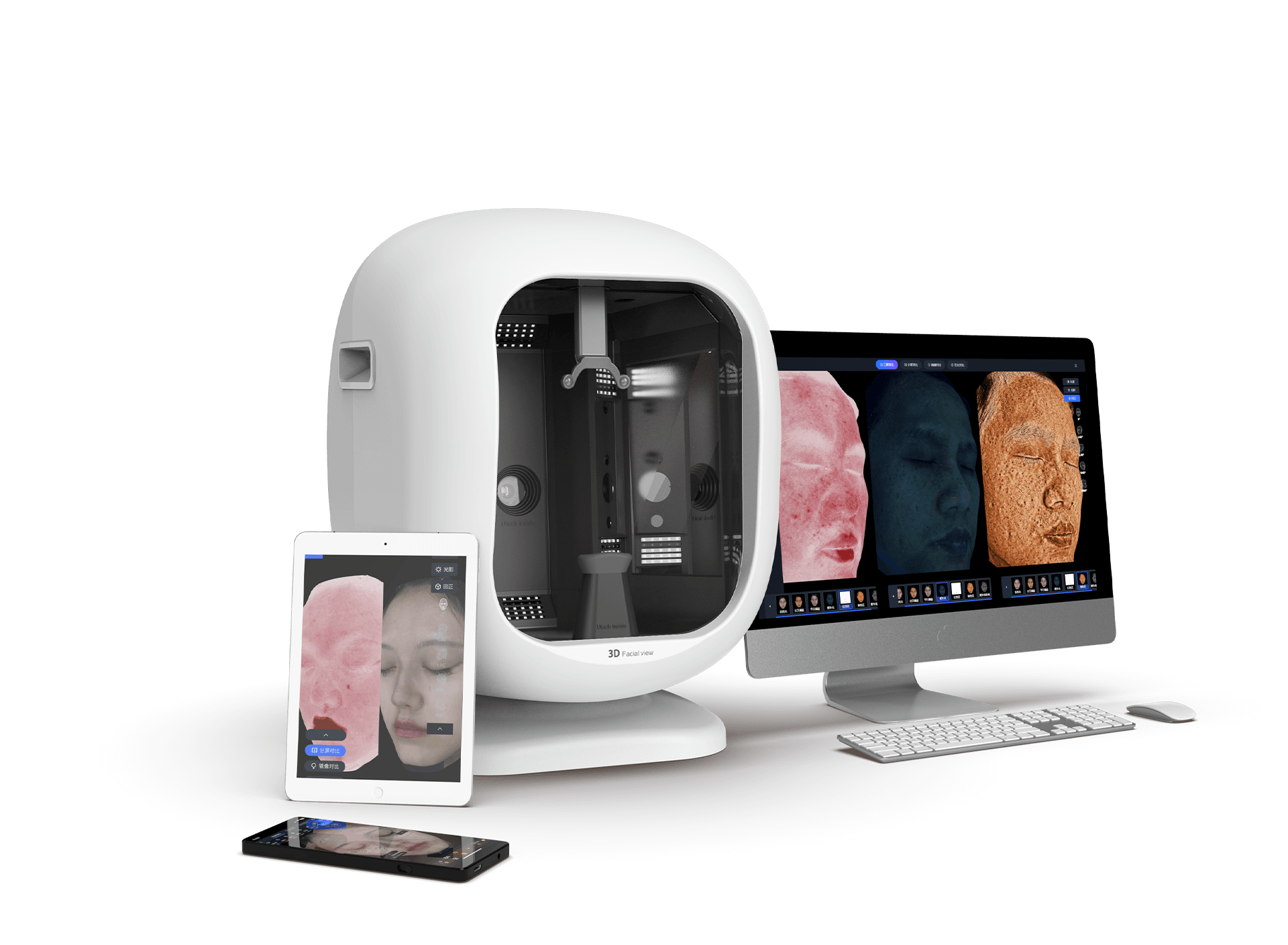

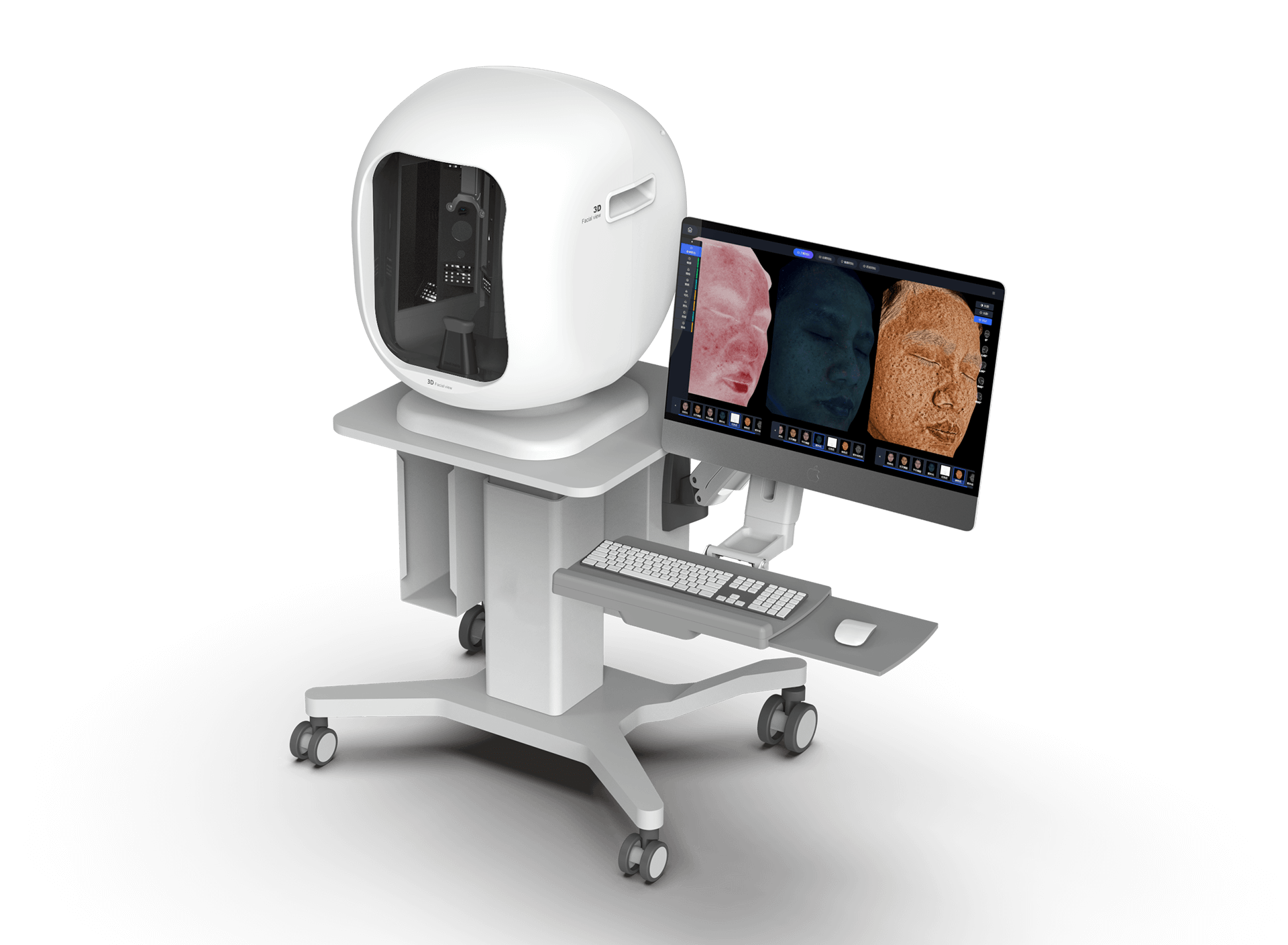

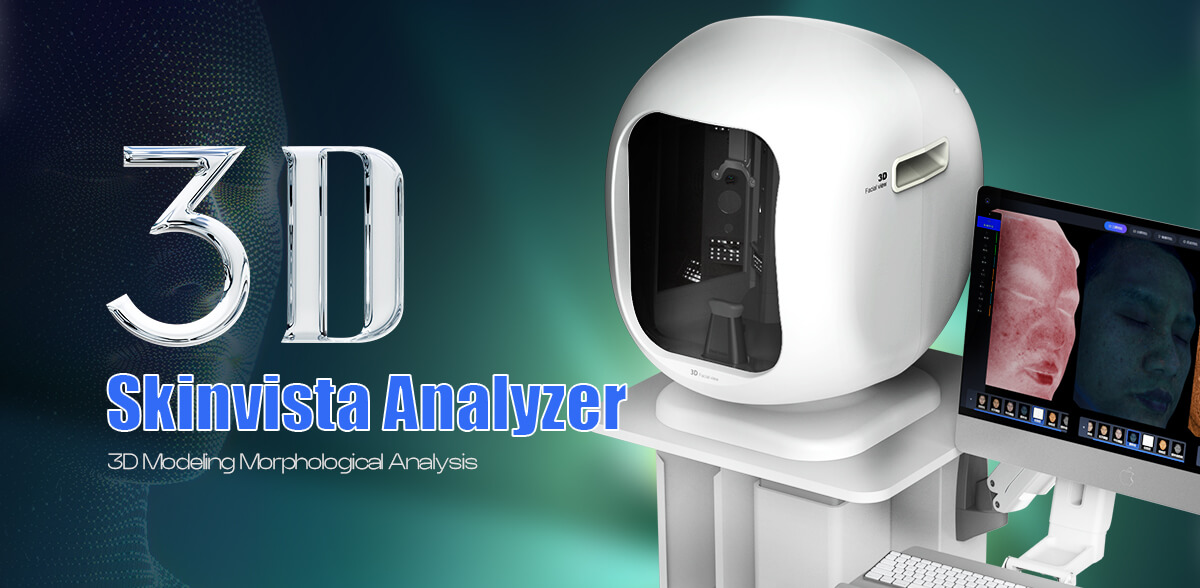

3D Skin Analysis
Technology：

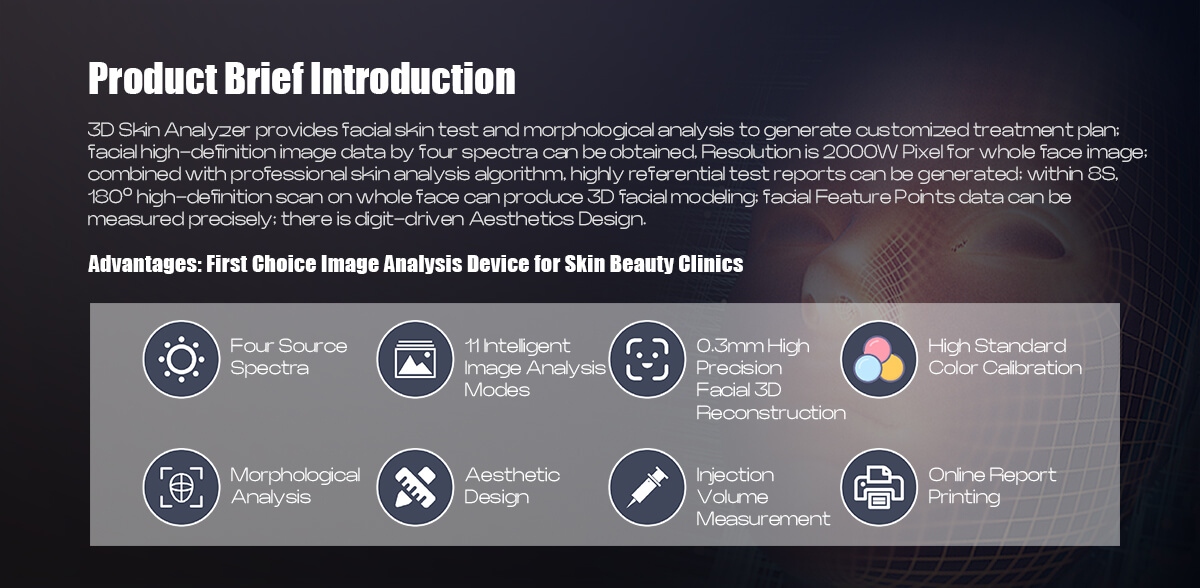

3D Skin Analyzer provides facial skin test and morphological analysis to generate customized treatment plan: facial high-definition image data by four spectra can be obtained, Resolution is 2000W Pixel for whole face image: combined with professional skin analysis algorithm, highly referential test reports can be generated: within 8S. 180° high-definition scan on whole face can produce 3D facial modeling: facial Feature Points data can be measured precisely: there is digit-driven Aesthetics Design.
Advantages:First Choice Image Analysis Device for Skin Beauty Clinics
-Four Source Spectra
-Morphological Analysis
-11 Intelligent Image Analysis Modes
-Aesthetic Design
-0.3mm High Precision Facial 3D
-Reconstruction
-Injection Volume Measurement
-Online Report Printing
Highly-Standard Color Calibration
-Self-Research Skin Color Calibration ISP System based on ColorChecker (24 Colors) ensures the Authenticity and Consistency between skin texture and its image.
- Example of Local Image Resolution
-Industrial-Level Standard camera and best flashlight included angle are applied, combined with Smart Modeling Technology, Facial 3D Modeling can be created precisely.

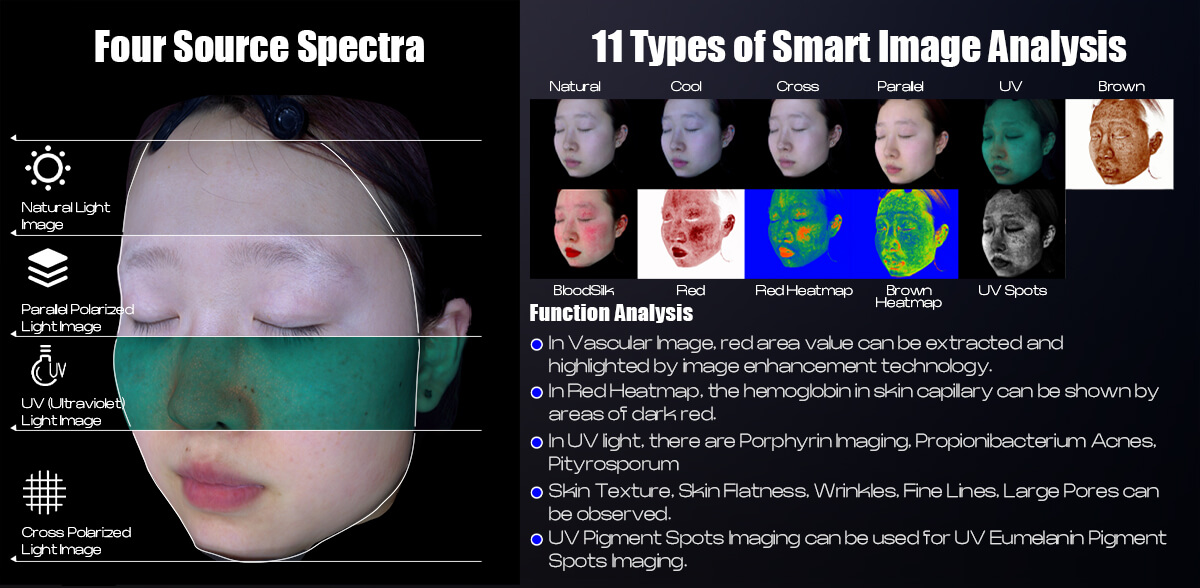

Four Source Spectra
11 Types of Smart Image Analysis
-Natural
-Parallel
-UV
-Red
-Brown
-BloodSilk
-Cool
-Cross
-Red Heatmap

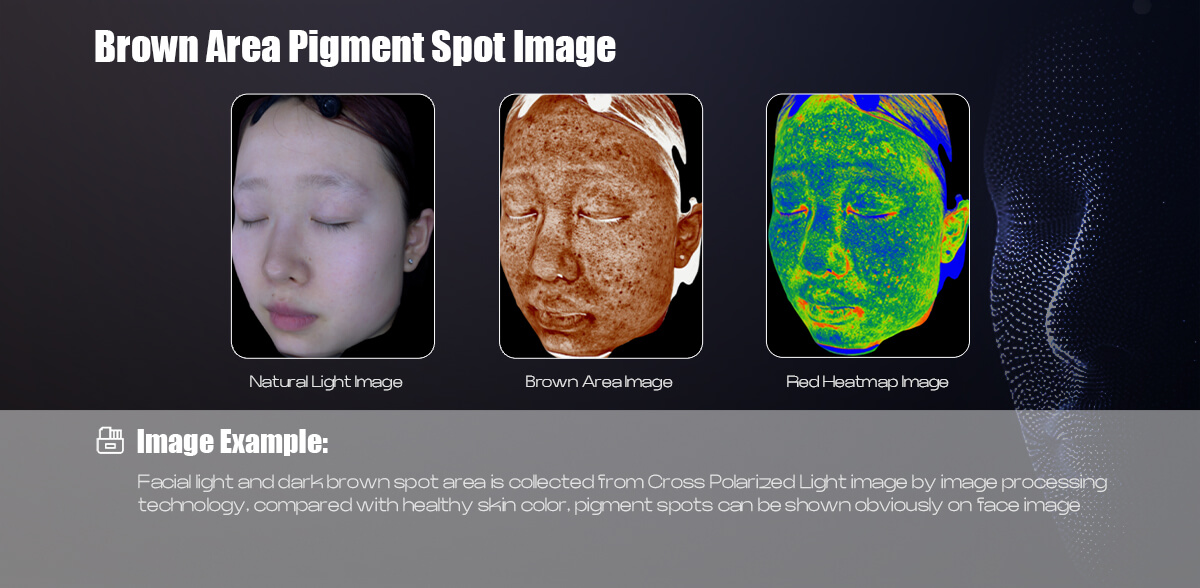

-Brown Heatmap
- UV Spots

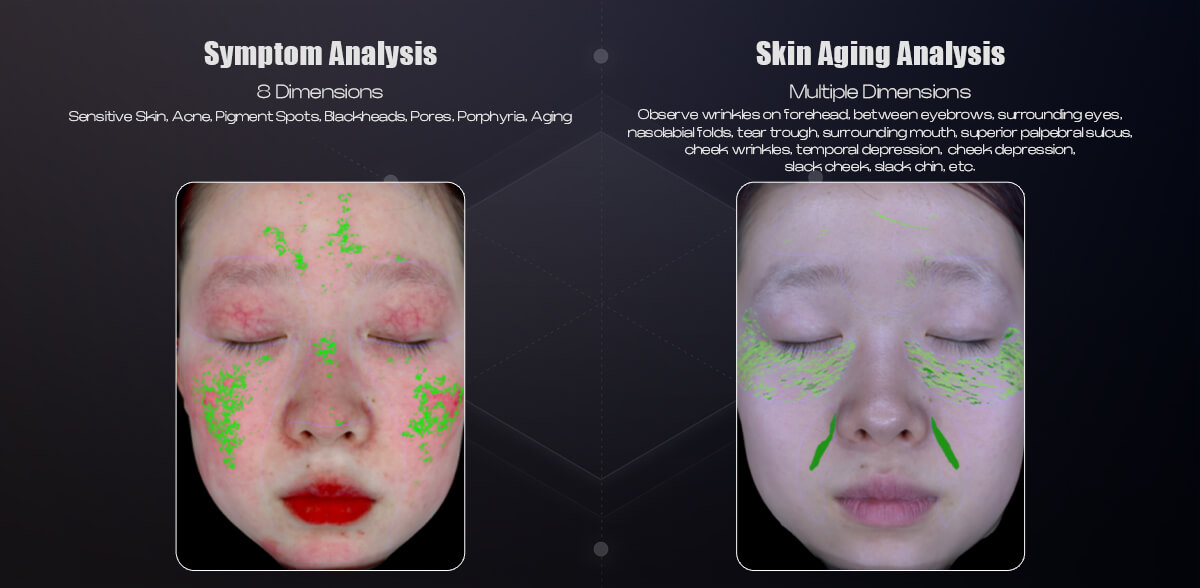

Function Analysis
- In Vascular Image, red area value can be extracted and highlighted by image enhancement technology.
- In Red Heatmap, the hemoglobin in skin capillary can be shown by areas of dark red.

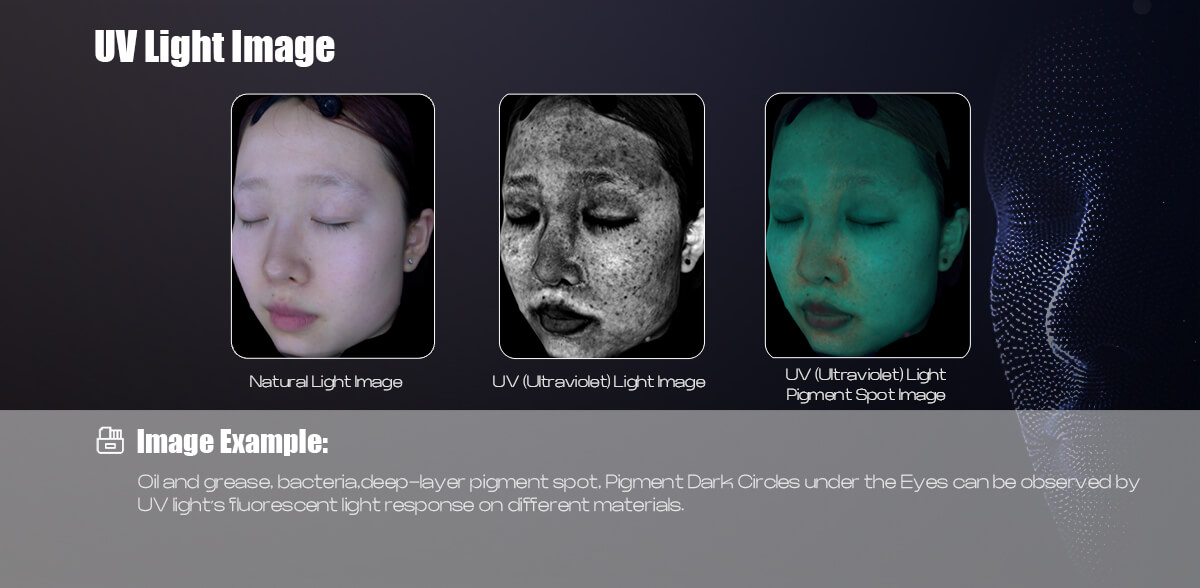

- In UV light, there are Porphyrin Imaging, Propionibacterium Acnes, Pityrosporum
-Skin Texture, Skin Flatness, Wrinkles, Fine Lines, Large Pores can be observed.
-UV Pigment Spots Imaging can be used for UV Eumelanin Pigment Spots Imaging.
System Configuration
-Model: Face3D 20
-CPU: Not the i7
-Built-In Memory: 16G
-Operating Monitor: Screen (With HDMI Interface)
-Disk Space: 512G
-3D Camera:2 Groups (Binocular Grating Structured Light)
-3D Modeling Precision: 0.3mm
-Model Facets Number :150000-400000
-Whole Face Pixel : 20,000,000
-Photographing Light Source:
Standard LED Light Source, Cross Polarized Light, Parallel Polarized Light, UV Ultraviolet
-Output Interface :USB、HDMI
-Power Supply: DC19V/6.3A
-Max Power: 120W
-Working Temperature :5C-25 °C
-Internet Requirement :WiFi
