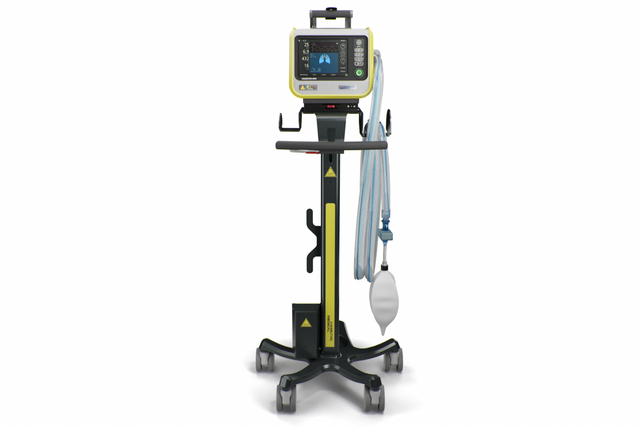

HAMILTON‑MR1. Intelligent Ventilation from the ICU to MRI
Our MRI specialist. For high‑end ventilation during MRI procedures
- Comprehensive ICU ventilator for use in the MRI department
- MR‑Conditional with the use of 1.5 Tesla and 3.0 Tesla static magnetic field scanners
- The ventilator can remain close to the patient even during MRI scans
- For all patient populations
Walk with me! From the patient room to the MRI suite
- Up to 540 minutes of battery time
- High‑performance turbine
- Compact and portable
Continuous ventilation therapy. Same mode and same settings as at the bedside
- Volume‑controlled and pressure‑controlled ventilation modes
- Adaptive ventilation with ASV®
- Noninvasive ventilation
- High flow nasal cannula therapy
- Always on the lookout. Your magnetic field navigator
The TeslaSpy helps you to keep the ventilator at a safe distance from the MRI scanner.
- Two strong arms. For the extra‑long breathing circuits
Choose between a range of breathing circuits in different lengths suitable for the MRI suite.
- Stay! Locked in place automatically
The auto‑lock brakes on the trolley automatically lock in place, preventing the ventilator from accidentally rolling toward the MRI scanner.
- Come closer! MR‑Conditional up to 50 mT
The HAMILTON‑MR1 allows you to get close to the MRI scanner, because it is designed to withstand a static magnetic field of up to 50 mT. In comparison to ventilators with weaker shielding from the magnetic field, it gives you more freedom when positioning the device, a wider range of movement, and greater flexibility for your workflow and patient setup.
Closer proximity to the scanner also means you can use shorter breathing circuits. The advantage is their smaller compressible volume, which can contribute to better overall ventilation quality
- Click on, click off. For an easy transition
The quick‑release button on the transport kit allows you to detach the device from the trolley with just the push of a button. And it reattaches just as easily.

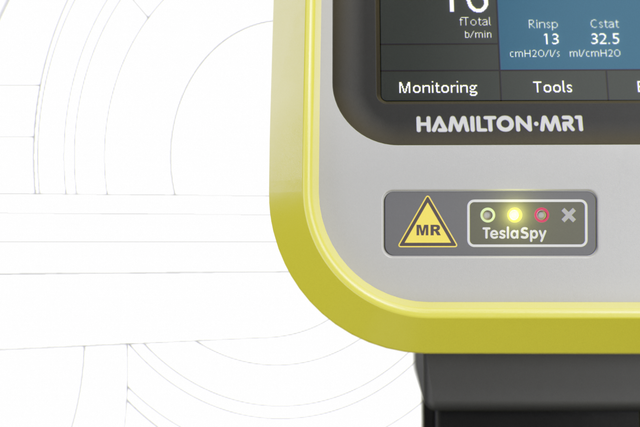

- Your lookout is on board. To navigate the magnetic field
The onboard magnetic field navigator, TeslaSpy, continuously monitors the magnetic field and gives you an audible and visual signal if you are getting too close. Positioning a medical device too close to the MRI scanner can have fatal consequences.
The TeslaSpy alarms are mirrored on the device's GUI and on the alarm lamp. For maximum safety, TeslaSpy continues monitoring even when the ventilator is switched off.
* Technical data :-
- Patient groups : Adult/Ped, Neonatal
- Monitor size and resolution : 8.4 in (214 mm) diagonal 640 x 480 pixels
- Battery operating time : 8 h with two batteries
- Air supply : Integrated turbine
