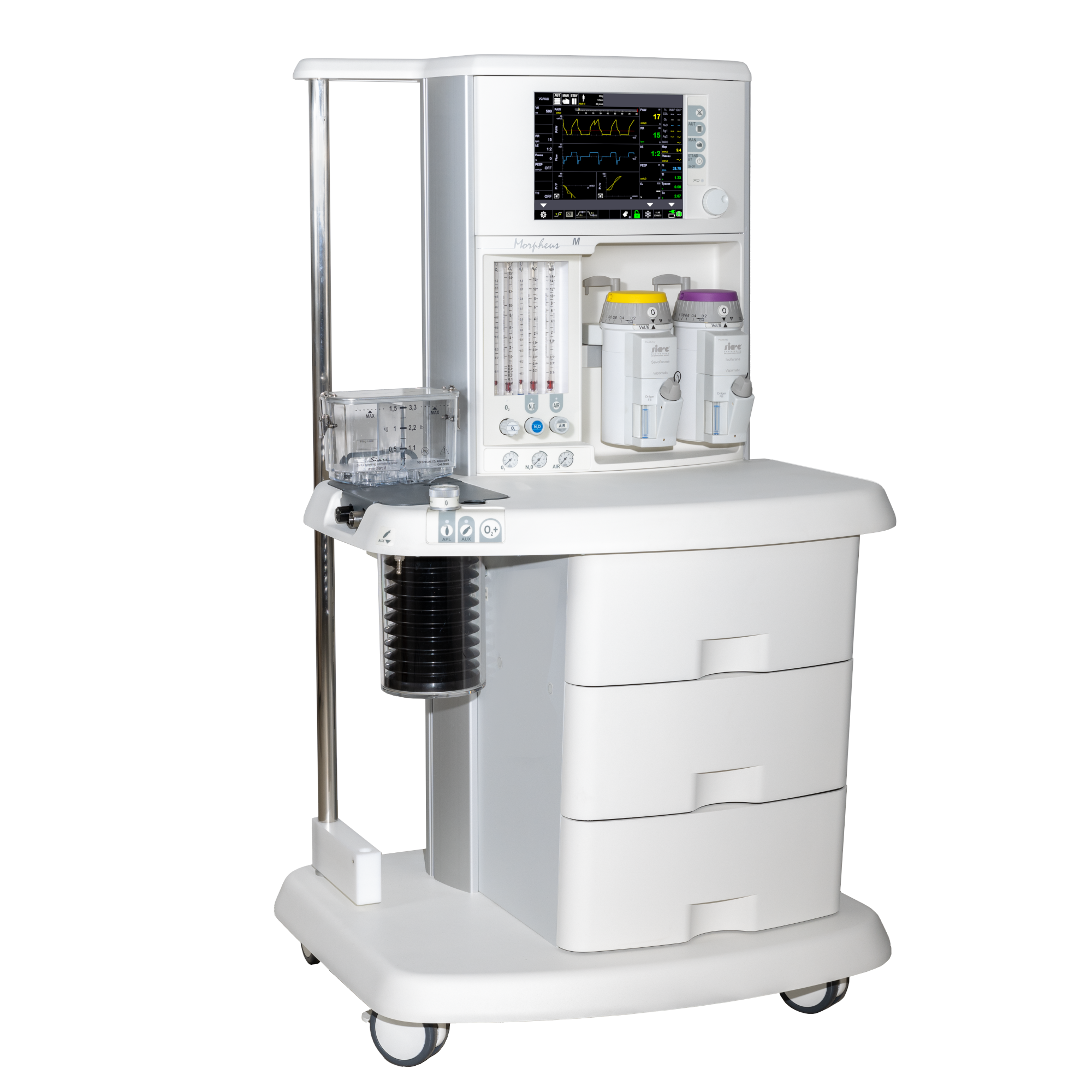

The Morpheus M is a versatile anesthesia machine, suitable for the treatment of adult, pediatric and neonatal patients. With an advanced manual ventilation system and an innovative Breathing System, it guarantees high performance and safety.
Categories:Anaesthesia, Anaesthesia workstations More info Information document
Information document
Description
The Morpheus M is an anaesthesia workstation suitable for treatment of adults, children and newborns. lt is supplied with 5 rotameters. The unit frame is made for 30% of light alloy and for 70% of fully recyclable plastic material. Thanks to the material used, the Morpheus M has a total weight of less than 80 kgs.
Manual ventilation system
The Morpheus is equipped with an advanced manual ventilation system that can be switched on and off automatically by the ventilator; the operator can select the APL system or the AUX system with traditional To-and-Fro valve and O2 by pass safety system.
Electronic ventilator with 12″tft touchscreen colour display
The ventilator works with a microprocessor electronic control system with a simple and intuitive interface, which allows the anesthetist to operate in a clear and safe way. Control by encoder or touchscreen for the adjustment and management of all respiratory parameters.
This system incorporates the automatic compensation of dead space, the leakages calculation and the automatic calibration of FiO2 transducer.
Breathing system
The Morpheus M breathing system is an absolute novelty. lts design phylosopy is the result of more than 40 years experience in anaesthesia field. The system is compact, lightweight for manual removal and fully autoclavable. The patient group is supplied with an automatic heating system avoiding humidity with possibility to use reusable CO2 adsorbers canister.
CO2 adsorbers canister is with quick-release enabling replacement also during anaesthesia
Distinctive Elements
• Practical and simple, with standardized user interface and nomenclature.
• Exclusive Micro Flow sensor at magnetic perturbance, reusable, able to measure low volumes from 2ml.
• Double input touchscreen and encoder control with keys.
• Equipped with a wide 12” touchscreen colour display.
• Possibility of installing up to two vaporizers.
• Large drawers to store all the necessary tools.
• Gas management through the appropriate three flow regulators: O2, Air and N2O.
• Up to 90 minutes of autonomy with fully charged battery¹.
Version
OM3.S5-TS: Morpheus M
¹The duration is to be considered indicative as it is defined in APCV mode with the following parameters set: Pinsp: 10 cm
