-Electronically measured fresh gas flowmeters with on-screen display
-Plug-and-play monitoring modules compatible with Mindray modular patient monitor
-Integrated compact breathing circuit with classic panel design
-12.1-inch capacitive touchscreen, configurable screen layouts
-Compact main unit, Modular and flexible design
Highly adaptable for diverse scenarios

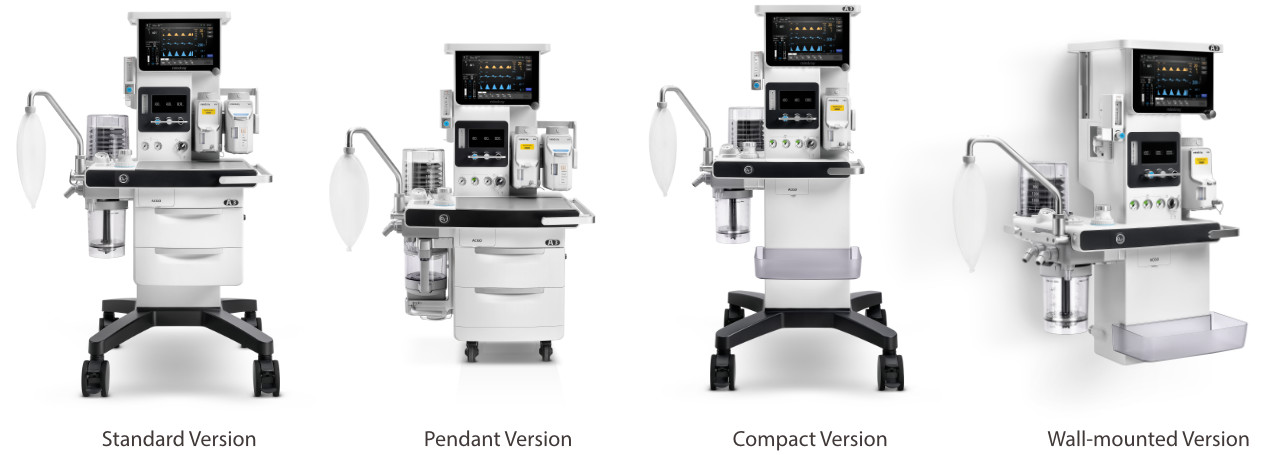

Multi forms adaptive to different scenarios
Extend application scenarios from central operating room to Non-Operating Room Anesthesia (NORA) with multi-forms adaption.
-Standard Version
-Pendant Version
-Compact Version
-Wall-mounted Version
Full-featured for professional care

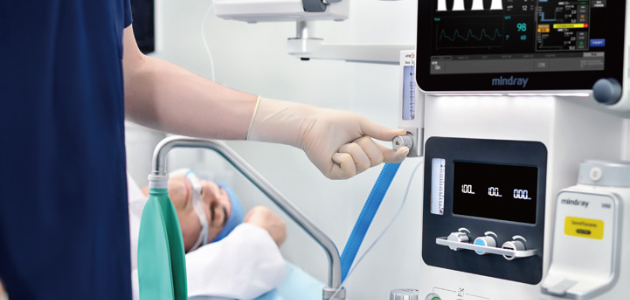

Electronic flow measurement as essential
Electronic flow measurement with the virtual flowmeter on main screen has been introduced by A3 as an essential to ensure precise anesthesia management, which can realize accurate and fast setting of O2 concentration and flow of fresh gas.
High Flow Nasal Cannula
High flow nasal cannula (HFNC) is proven to improve oxygenation and wash out dead space to better prepare for intubation and support extubation.
-Precise and individualized ventilation
The A3 supports a full range of controlled and support modes of ventilation and with dynamic tidal volume compensation, support TVe as low as 10ml(5ml for PCV-VG), is suitable for all patient categories from neonates to adult.

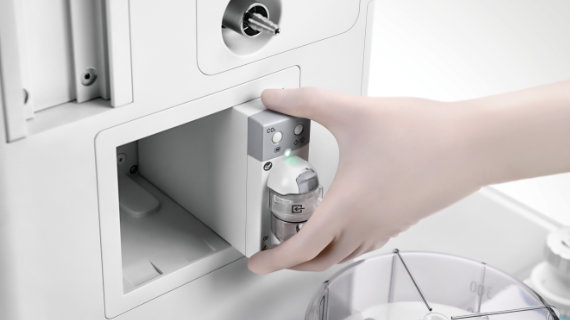

-PnP Multi-Gas Module
With improved single slot CO2 module or double slot anesthetic agent capability, the Mindray Plug-and-Play Multi-Gas modules provide comprehensive breath-by-breath analysis of Fi/EtO2, Et/FiCO2, Et/FiN2O, auto-detection of five anesthetic agents.

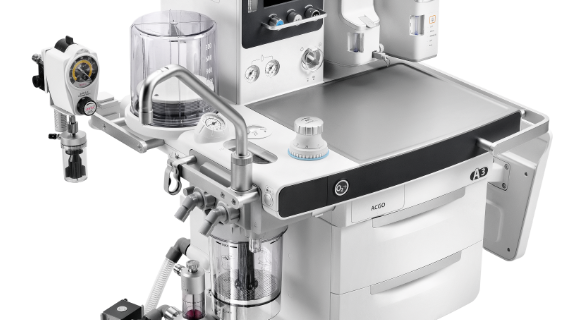

-Easy for maintenance
Integrated compact breathing system with heating module to reduce water condensation, and support tool-free to disassemble with few parts
• Compatible with both reusable and disposable soda lime canisters, ease to replace the absorbent
• All parts are autoclavable, preventing cross-infection
• FlowSecure™ ensures accuracy of flow sensors with a long service life
-Intuitive and customizable user interface
• 12.1 inch capacitive touchscreen
• 1280X800 HD
• 10 customized profiles
• Graphical instruction
More options for gas supply
Beyond its flexible form, the A3 anesthesia system can also adapt to different gas source conditions. The ventilator can be operated normally even under limited gas supply conditions.
Optional Driven Gas Auto-switch
When the primary gas supply fails, Auto-switch function can switch the driven gas supply to the back-up gas resource automatically, to ensure safe mechanical ventilation at all times
Optional built-in turbine module
Flexible and alternative to configure built-in turbine as driven gas supply when high-pressure gas supply is not available
Optional internal air supply module
Optional internal air supply module serves as backup air for fresh gas to ensure safe ventilation when high-pressure air supply fails.
Stay together for better efficiency
Overview of patient status in each operating room
Through IT solutions, enabling remote monitoring of patient status in real-time across all operating rooms and detail information of one OR.
Overview of the operational status of devices
-Overview of anesthesia machine distribution and utilization
-Summary of anesthesia machine self-test results
