Rapid turnaround time thanks to direct track connection

Manually prepared slides, e.g. for STAT analysis, can be fed easily into the workflow without interrupting it

Consistently high-quality analysis leads to improved standardisation

The DI Remote Review Software licence allows you to review cells from any computer within the network

Standard applications include peripheral blood and slide scanning for body fluids and bone marrow samples

Automatic feathered edge scan to look for platelet clumps and parasites

With the DI-60V incorporated in your XN-1500V system, you can run your cell morphology analyses fully automatically, directly after cell counting and blood film preparation – without any manual steps. The digital imaging module DI-60V can be added as an optional component or stand-alone.

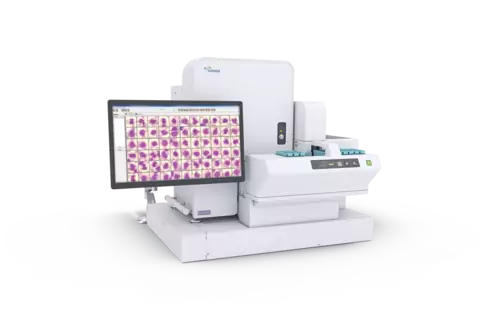

The Sysmex DI-60V is an automated, cell-locating image analysis system. It is connected directly to the analyser track and therefore eliminates the need for manual intervention in the haematology workflow in the imaging cycle.

The device itself consists of an automated microscope, an extremely high-quality digital camera and a computer system that collects and pre-classifies cells from stained blood smears. It automatically locates cells on the slide and takes an image of each cell found, after which it analyses and pre-classifies them using advanced image processing. The number of white blood cells that are analysed is user-definable.

To perform a differential count with morphology assessment, a thin film of blood is wedged on a glass slide from a peripheral blood sample and stained according to the RAL MCDh, May-Grünwald, Giemsa or Wright protocol. With the XN-1500V, this is done fully automatically by the SP-50 slide maker and stainer module. The DI-60V analyser acquires and pre-classifies the cells, after which the operator verifies and modifies the suggested classification of each cell if necessary. The operator may also introduce additional observations and comments when needed.

The DI-60V can pre-classify seven WBC categories. These include segmented and band neutrophils, eosinophils, basophils, lymphocytes, monocytes and other. In addition to white blood cells, the system also pre-classifies the following five non-WBC categories: smudge, artefacts, giant platelets, platelet clumps and nucleated red cells. These are reported as the number of NRBC/100 WBC. Cells that are pre-classified with a low confidence level are placed in a category called ‘Unidentified’.

The device also presents an overview that can be used to characterise red blood cell morphology. Thirty-five images are collected in the optimal RBC examination area for pre-characterising the following characteristics: polychromasia, hypochromasia, anisocytosis, macrocytosis, microcytosis and poikilocytosis. The system also provides tools that let the user improve the efficiency and consistency of estimating the PLT concentration. All images and results are stored in the database.

Too little workload for total automation? And unwilling to compromise on quality?

The CellaVision® DC-1 VET digital imaging analyser is our answer. We merely compromise on speed, and everything else is on a level playing field with our high-end digital morphology systems.
