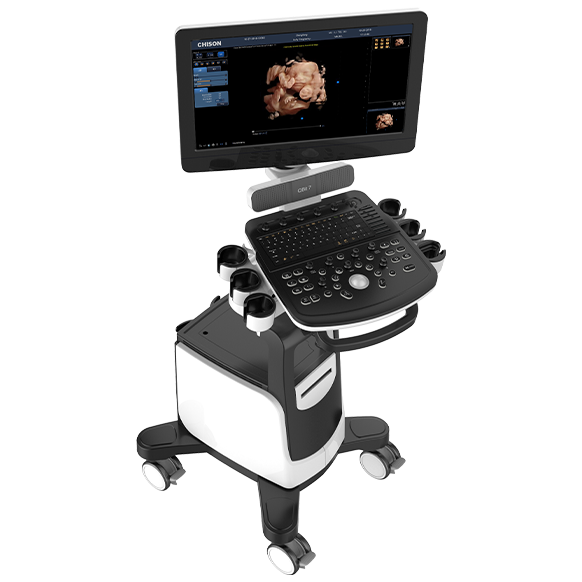

Versatile diagnostic solutions, intelligent workflow and advanced 4D technologies make it a powerful cartbased ultrasound for daily dignosis.
Specifications:
Advanced Technologies:
- Q-beam
โCompared to the traditional dual-beam former on most
ultrasound machines, the QBit uses quad-beam technology for ultrasound signal receiving.
โDoubles the volume of signals received over traditional
methods, increasing image resolution and generating more accurate images.
โProduces higher frame rates, ensuring better diagnostic
conidence and fficiency, especially for moving organs.
- FHI
โFHI is an innovative harmonic imaging technology that uses multiple transmission and receiving methods based on the patients' size and weight. This allows the QBit to maintain image resolution when imaging larger patients.
โTraditional Tissue Harmonics and Phased Harmonics
compromise image quality and resolution when penetration is increased.
โChison's FHI technology greatly improves diagnostic abilties and clinical confdence in larger, dificult-to-image patients.
- X-contrast
โThe QBit allows one-touch user-adjusted contrast resolution based upon dffrences in tissue density.
โEnhance, Normal, and Suppress settings increase or decrease contrast resolution, based on the tissue type and user preference.
- Q-flow
โThis adaptive color detection technology can automatically adjust the assessment of color signal and noise according to different tissues.
โ Asa result, color sensitivity of lowvelocity flow is signifcantly enhanced.
Features:
Professional Clinical Applications:
โ ABD
โ OB / GYN
โ Vascular
โ MSK
โ Small Parts
โ Urology
โ Pediatrics
โ Cardiac
Image Processing Technologies:
โ Speckle Reduction Algorithm (SRA)
โ Multiple Compound Imaging (MCI)
โ Q-image
โ Q-flow
โ X-contrast
โ Q-beam
โ FHI
โ Super Needle
Imaging Modes:
โ B, 2B, 4B, B/M, M
โ CFM, B/BC
โ PW/CW
โ PD, Directional PD
โ Duplex, Instant Triplex, Quadplex
โ Trapezoidal Imaging
โ Curved Panoramic Imaging (optional)
โ 2D Steer (optional)
โ Chroma B/M/PW/CW
โ 4D (optional)
โ Virtual HD/Depth View (optional)
โ Steer M, Color M, TDI (optional)
โ StressEcho (optional)
โ Elastography available on 8 kinds of probes(optional)
โ ECG (optional)
