Lubrina 2
Seamless Auto-Maintenance
Lubrina 2
Dental Handpiece Maintenance Equipment

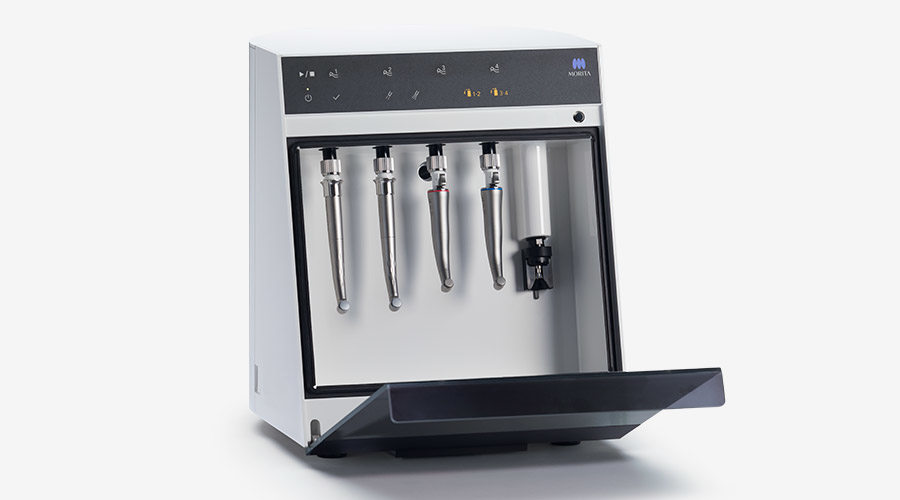

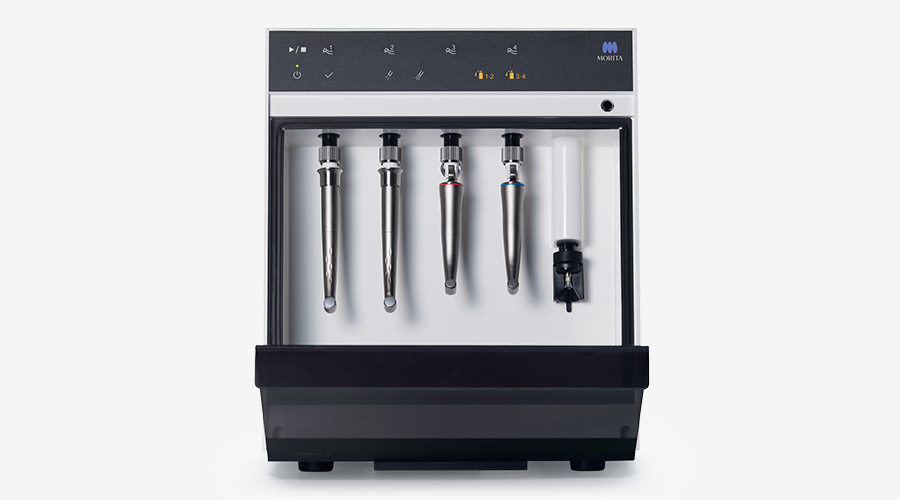

Lubrina 2 automatically performs maintenance (lubrication and cleaning) of handpieces which are essential for daily practice. Because the lubrication amount and service time suitable for each handpiece are programmed into Lubrina 2, it can automatically perform maintenance of up to four handpieces in a short time. The clean air-blow system implements lubrication and cleaning of the inside of the handpiece thoroughly, and provides stable maintenance without variations by staff which can occur during manual lubrication. Lubrina 2 accepts multiple brands of spray lubricant.
*Seamless Auto-Maintenance
*Clean Air-Blow System
"Technical Details"
-Brand name : Lubrina 2
-Model : HIM-2
-Power voltage:
AC 100V-240V 50-60Hz
-Power consumption:
10-25 VA
-Maximum input air pressure:
0.7 MPa max.
-Air pressure used:
0.3-0.5 MPa (recommended 0.4 MPa)
-Consumed air flow rate:
60-100 NL / min (0.3-0.5 MPa)
-Weight:
Approx. 8 kg

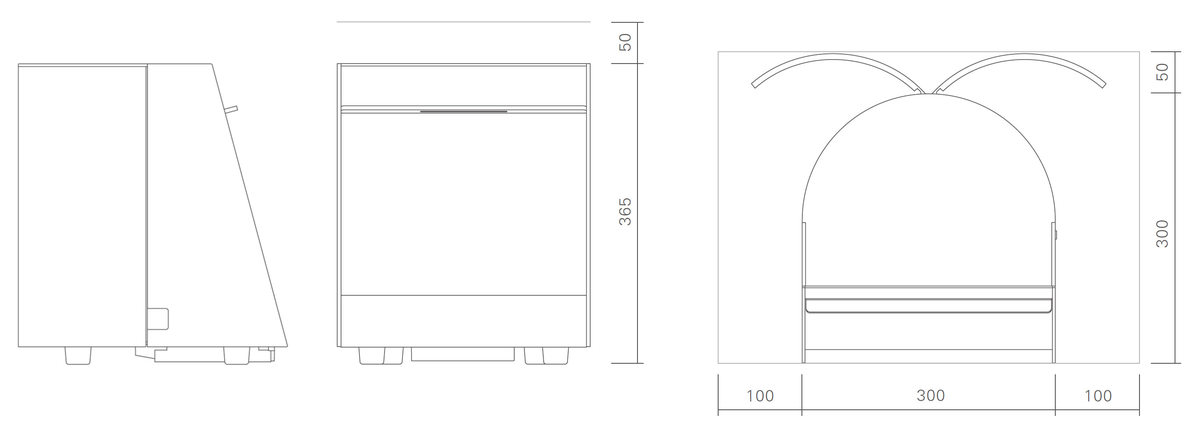

-External dimensions:
W300×D300×H365mm
Manufactured and sold by:
J. MORITA MFG. CORP.
*Functions:
-Clean Air-blow System (Dual solenoid valves)
-Mode 1 (for turbine)
-Mode 2 (for contra-angle handpiece)
-Flushing mode
-Air-blow mode
-Chuck maintenance mechanism

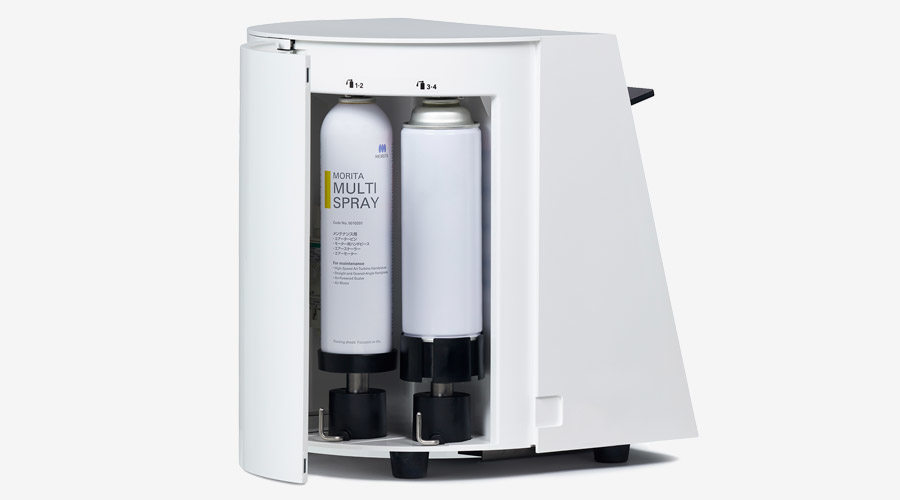

-Spray can system
-Dual spray system
-Residual water removal mechanism
-Oil mist suction mechanism
-Compatible with handpieces manufactured by various companies
*Accessories:
-Oil absorption pad
-Oil absorption sheet
-Oil absorption sheet for front door
-Sheet stopper for door
-Power supply cord
-Air tube
-Spray Holders (standard) x 2
-(for Morita Multi Spray)
* Lubrina 2 is not provided with couplings.
