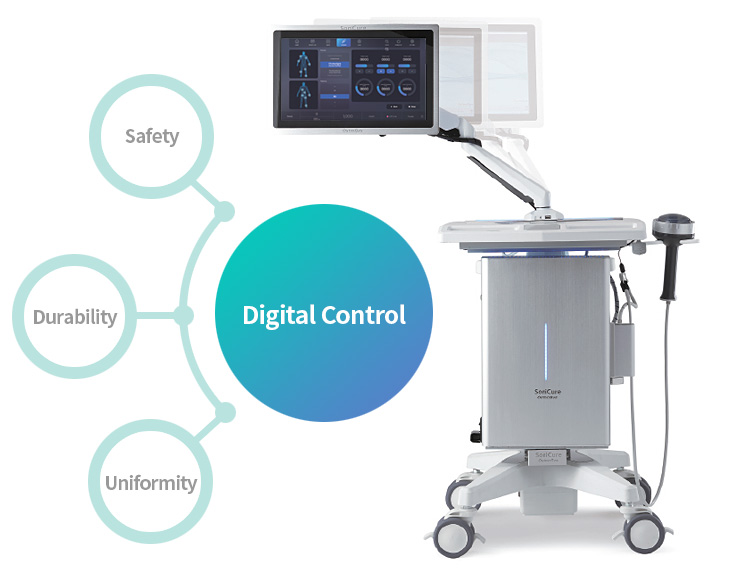

NPT-Sonicure is the next generation ESWT based on digital array control technology. It’s digital concept goes beyond the traditional analog method.
Next Generation ESWT:NPT-Sonicure

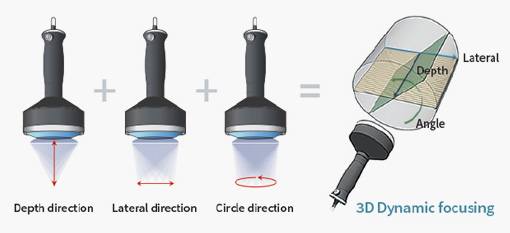

World First 3D Dynamic Focusing
NPT-Sonicure is the next generation ESWT based in digital array control technology.
NPT-Sonicure opens up the future of ESWT that was unimaginable in the analog based traditional ESWT technology
Software based Depth Adjustment:No need to Replace Gel Pad Anymore
NPT-Sonicure’s focusing depth is adjusted by software without replacing the gel pad. You can easily change focusing depth in 3D from the user-specified range.
3D Focusing Technology with Less Pain
Due to its 3D focusing technology, NPT-Sonicure offers you with a pain-free treatment on the skin surface.

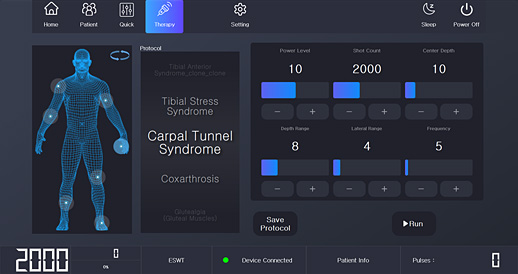

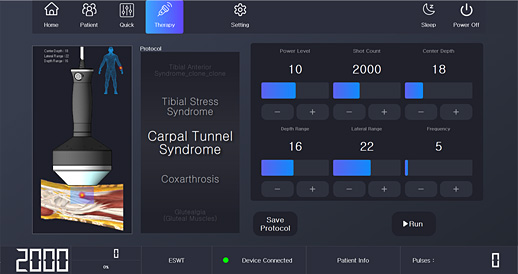

User Friendly GUI:Normal Mode and Expert Mode
NPT-Sonicure will support you with a user friendly GUI presenting various treatment environments such as normal mode and expert mode.
Light-weighted, Reflectionless Transducer & Symptom-specific Treatment Protocols
Also, its built-in symptom-specific treatment protocol and light weight, reflectionless transducer greatly helps the operator with the easier and comfortable treatment process.
Basic Principles of Extracorporeal Shock Wave Therapy(ESWT) System
– Vacuum bubbles in the calcified area is generated by sound waves and the calcified area is softened and absorbed into the body.
– By shock waves being applied to the pain area, blood flow in the affected area is increased and inflammation is ameliorated, as a result, tendons, surrounding tissues and bones heal quickly.
– Reducing pain by transmitting shock energy waves to pain triggering tissues which result in a decreased level of neurotransmitters.
– Promoting capillary reformation and improving metabolism & blood circulation.
Legs
Achillodynia
Plantar Fasciitis
Tibial Anterior syndrome
Gonarthrosis
Osgood Schlatter disease
Patellar tendonitis
Arms
Carpal Tunnel Syndrome
Golfer/Tennis Elbow
Ulnar humeral Epicondylitis
Shoulder
Calcific Tendonitis
Periarticular Shoulder pain
Shoulder impingement syndrome
Hip Joint
Femoral Muscles Pain
Trochanteric Tendonitis
* Specification :-
- Max. acoustic pressure :
80Mpa
- Energy density :
0.96mJ/mm2
- Penetration depth :
60mm
- Depth :
0~60mm
- Energy level :
20steps (levels)
- PRF :
Max. 30Hz
- External interface :
HDMI, USB, Ethernet
