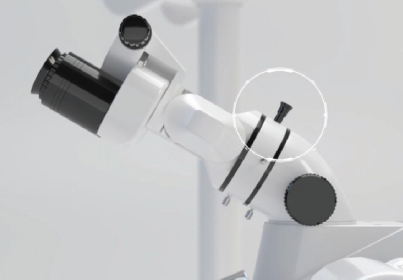

MagPlus 1.5 0°-180° inclinable binocular tube with PD knob (optional)

This MagPlus 1.5 increase 50% magnification in the binocular

The focal point separation of the pair lines can be adjusted in the range of 200mm to 450mm, allowing for easy focusing during operation

30% auto-increased intensity at maximum magnification to get more light for high magnification. When the magnification at the highest, the light spot is the smallest and when the magnification is at the lowest, the light spot is the largest

Backup light source for accidentally shutting down of the main LED Illumination

Excluding for the USA, FDA is under the process of registration

The illuminance is higher than 200,000 Lux at 250mm working distance

Integrated Yellow & Green Filters, Illumination Filter

In addition to the two color filters of yellow and green, it is equipped with four pattern light range reduce the burden to the eyes of the user

Recording system as option that has the ability to take still images or videos and save all data into an external flash disk Review photos & videos by mouse instantly

Integrated 4K Camera with external flash disk (optional)

Zumax introduces outstanding UHD resolution and superior color performance, fidelity and economical. With outstanding performance, the camera outputs a whopping 3840/2160 resolution from HDMI interface with increased resolution up to 1800 TV lines, and has auto focus function

iMovCloud™ Image Management (optional)

iMovCloud system has Single version, Intranet version and *Cloud version

iMovCloud Single version is an advanced and fully integrated surgical image management system which based on Windows platform. It is an ideal choice for worldwide dental clinics. Together with Zumax microscope to collect videos and images, integrate four major management functions of clinics, doctors, patients and medical records to realize the sorting, analysis and documentation

"Intranet version" service, which realize local network viewing, maintenance, management easily, is coming soon

"Cloud version" service, which realize cloud viewing, cloud maintenance, cloud management, remote joint inspection and other functions

4K-3D System (optional)

Teaching or presenting in 3D mode which helps teachers teach and students learn through real time depth perception

Help patients to understand procedures clearly and better with 3D videos

Recorded 3D video in a flash disk, can be viewed on 3D TV, 3D projectors and VR/AR viewers

Outputting real 3D streaming while the dentists are operating on microscope live

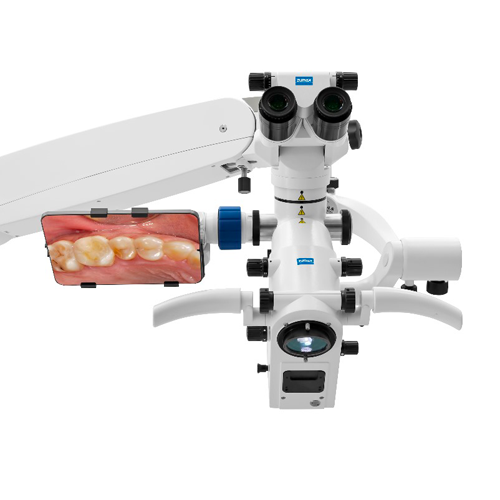

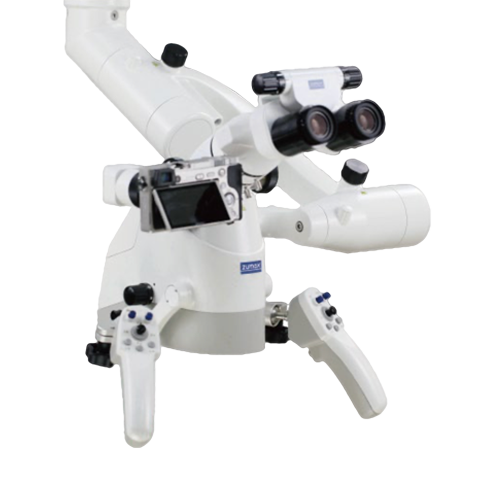

Optional digital visualization accessories provide lossless live images or play-back to perform the steps of a procedure to patient's understanding and store the records for reviewing

(Adaptable to major camera brands, Iphone and some brands android phones)

Ergonomic handles can control zoom magnification, fine focus, brightness as well as photo shooting & video recording electronically by touching the buttons

Convenient zoom adjustment continuously motorized in pushing-and-pulling the joystick

6 Magnetic Brakes

The magnetic brakes provide an easy and precise positioning of the microscope. Just press the buttons to release handbrakes and bring the microscope in the location required

IPX8 waterproof Mini-footswitch has compact structure, which realized the doctor's blind operation of zoom magnification, fine focusing and taking still photos and videos without removing the visual field. Free hands when hands on

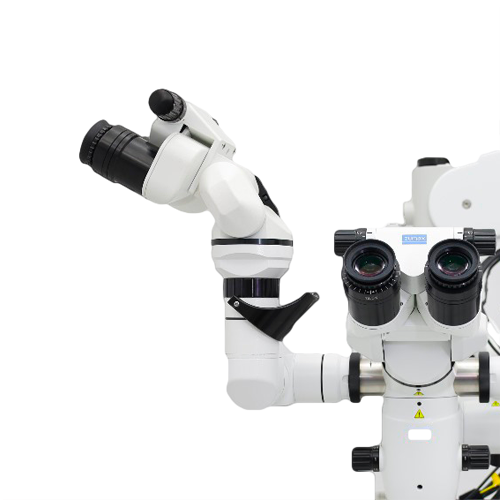

This function allows the users to remain in an upright viewing position, by changing the direction of the optic pod without changing the direction of the binocular head thereby enhancing user comfort and ergonomics

Motorized Zoom System, with apochromatic 1:6 ratio 1.8x-20x with 12.5x eyepieces Magnification factor y=0.4X-2.4X

Variable Working Distance 200 mm ~450 mm

0°-180°Inclinable Binocular Tube with PD adjusting knob, f=170mm

55 mm 75 mm
