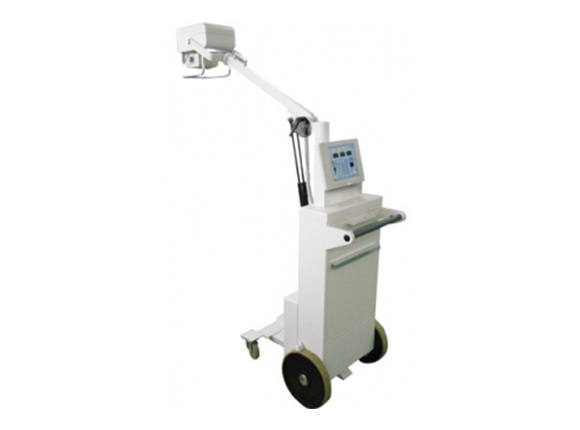

POXBILE-100BT:
- 100 mA, 5.0 kW battery-powered mobile X-ray system
- Our 5.0 kW mobile X-ray system, POXBILE-100, features a powerful 100 mA output and a slim design ideal for mobile applications.
- Experience high image resolution, user-friendly operation, and smooth maneuverability.
- Indoor use recommended
- Arm supports both vertical (up-down) and horizontal (left-right) movement
Technical Specifications:
Model:Generator Type
POXBILE-100BT:5.0kw, 60kHz Battery Type
Model:Kv Range
POXBILE-100BT:40~110kv, 1.0kv increment
Model:mA Range
POXBILE-100BT:20~100mA, variable
Model:mAs Range
POXBILE-100BT:0.1~100mAs, 38 selections
Model:Console & Display
POXBILE-100BT :
- kV & mA & mAs/sec digital display
- Density (for human) digital display
- Perm. & Exposure LED
- Collimator lamp switch
- APR Store switch
Model:Software
POXBILE-100BT:PROM Memory: 30APR
Model:X-ray Tube
POXBILE-100BT :
- Type: Fixed anode
- Focal spot size: 1.8mm
- Heat Storage: 30000J
- Cooling rate: 250W
- Inherent Filtration: 0.5mm Al
- Target angel: 15°
Model:Laser Pointer
POXBILE-100BT:Single & Dual laser (Optional)
Model:Collimator
POXBILE-100BT :
-Manual: PCM100
-Lamp: 24V 150watt, halogen lamp, shut-off: 30sec.
-Timer (DC: 30sec)
-X-ray Field Size: 35cm * 35cm @ 65cm SID
Model:Auto Compensation
POXBILE-100BT:Line voltage comp. ±10%
Model:Charge input
POXBILE-100BT:100V-240 VAC, 50/60Hz
Model:Net Weight
POXBILE-100BT:140kg
