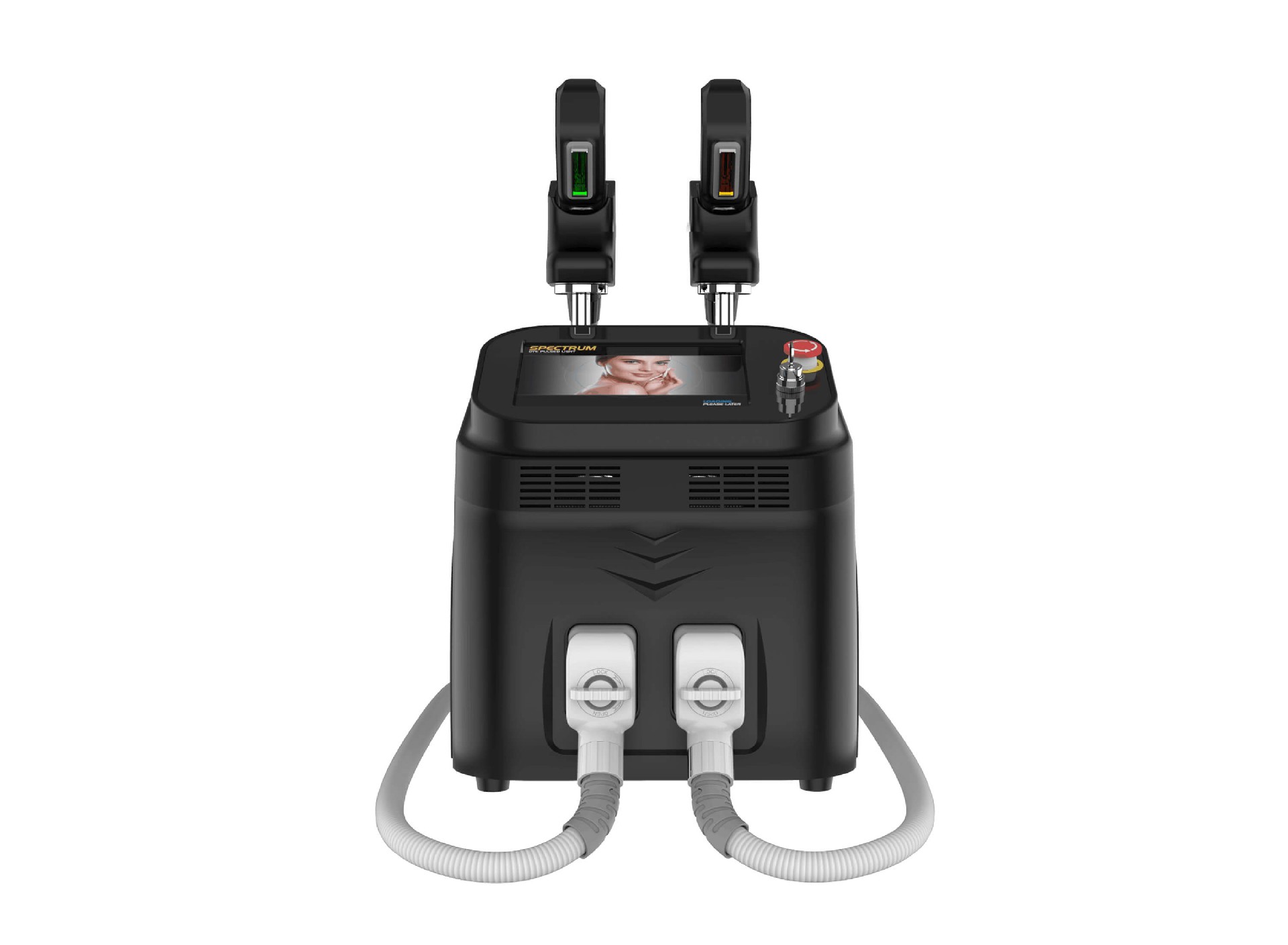

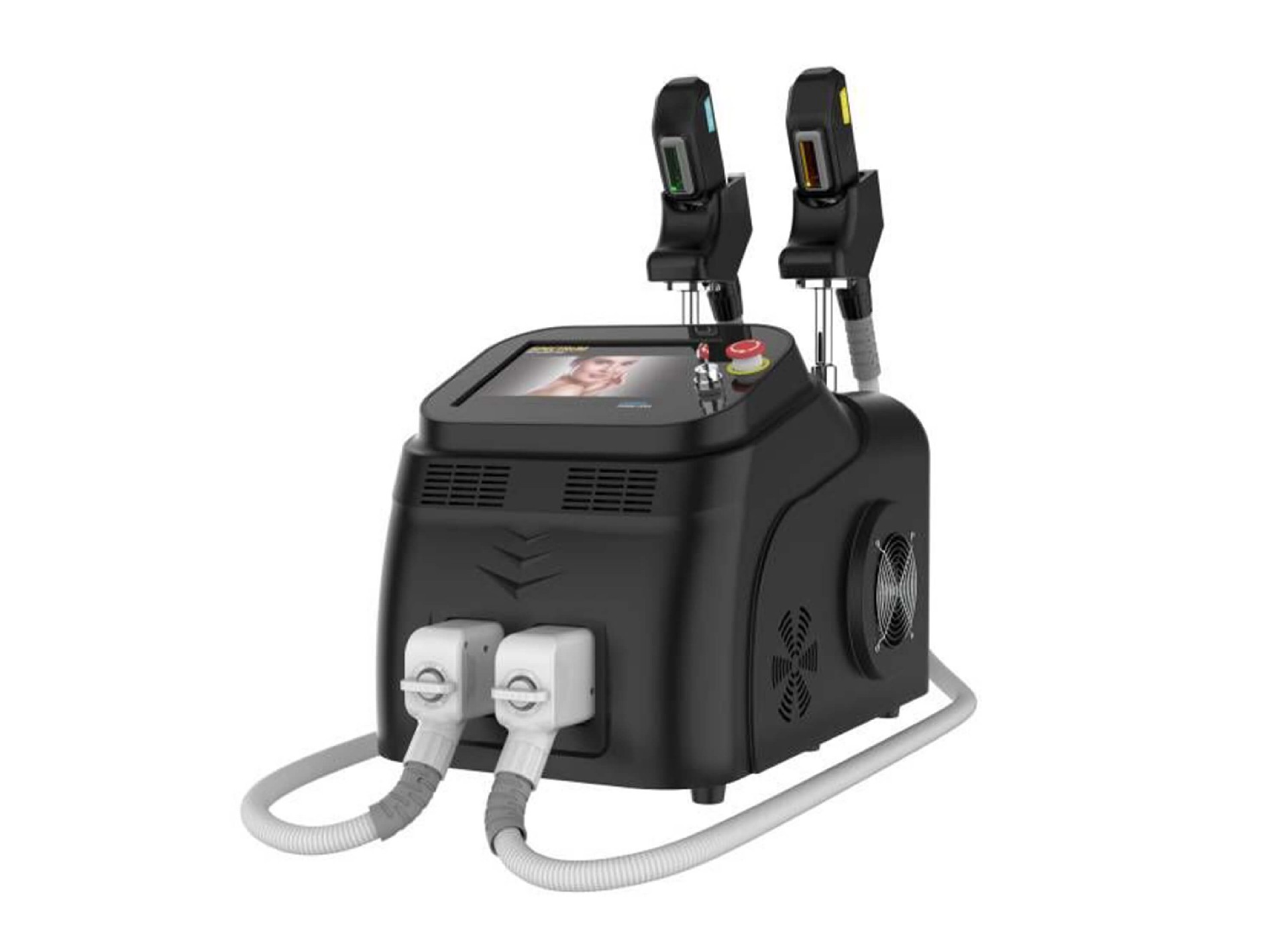

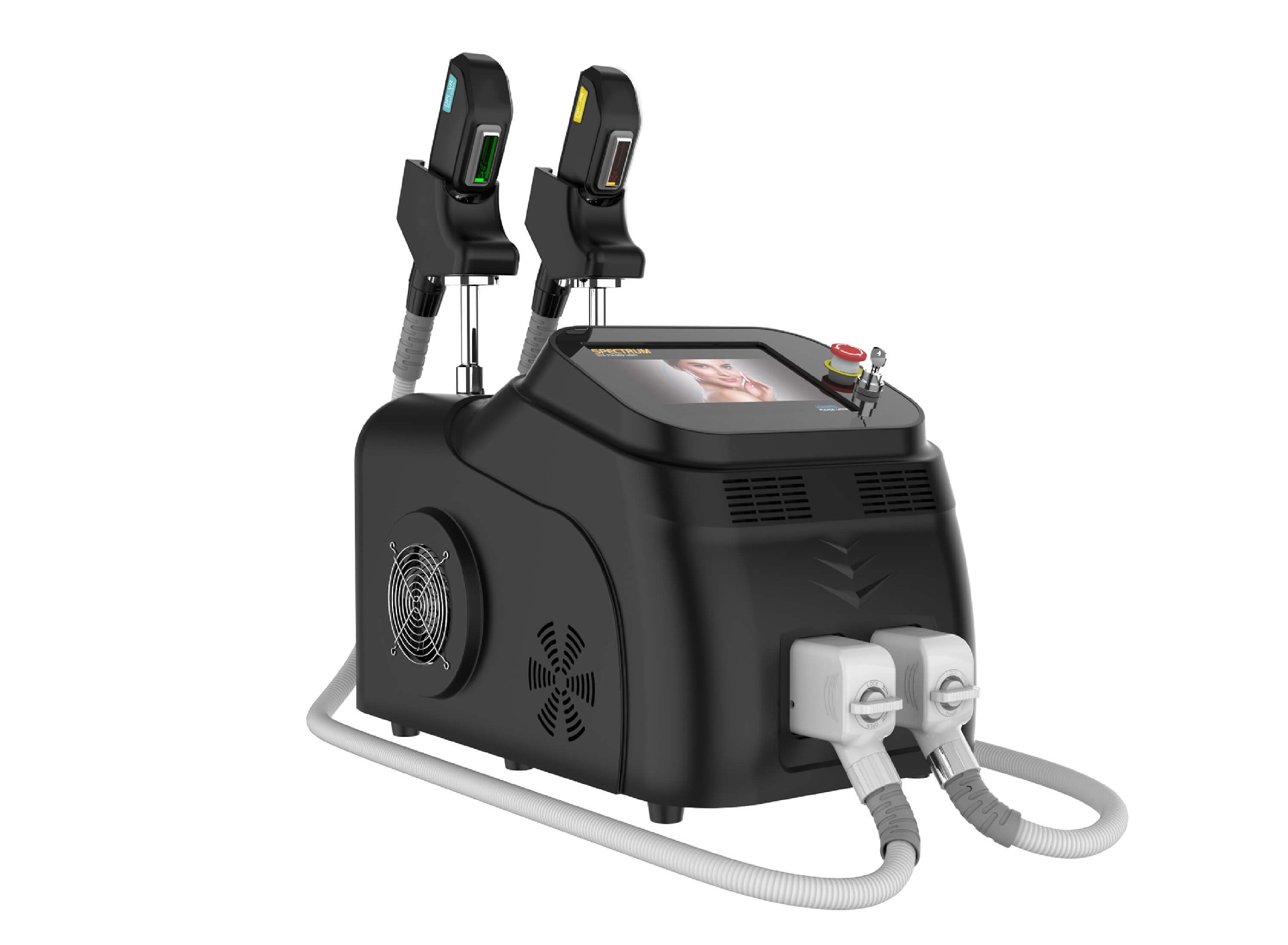

DPL Portable
Technology：

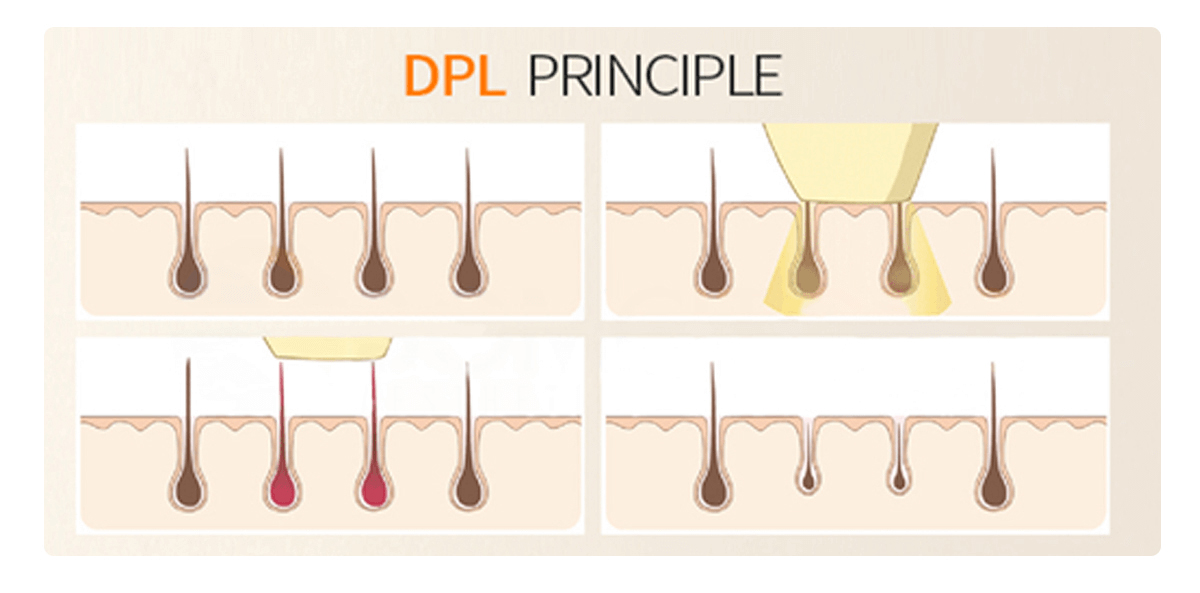

The machine uses DPL(Dye Pulsed Light) precision skin rejuvenation technology that is narrow-spectrum photo skin rejuvenation (DPL), it refers to a new optical skin rejuvenation technology, different from traditional technology (such as IPL), The new technology can stimulate 100nm narrow-spectrum pulsed light which also contains the absorption peaks of melanin and oxygen and hemoglobin, allowing accurate concentration of effective therapeutic energy, thus quickly and efficiently solve the facial freckles and telangiectasia (red face) problems.
DPL (Dye Pulse Light), a new narrow-spectrum(550-650nm) technology, quickly and efficiently solve facial pigmentation and telangiectasia (red face) problems.
Indication:
-Hair Removal
-Skin Rejuvenation
-Skin Tightening
-Acne Removal
-Pigment Removal
-Vascular Removal

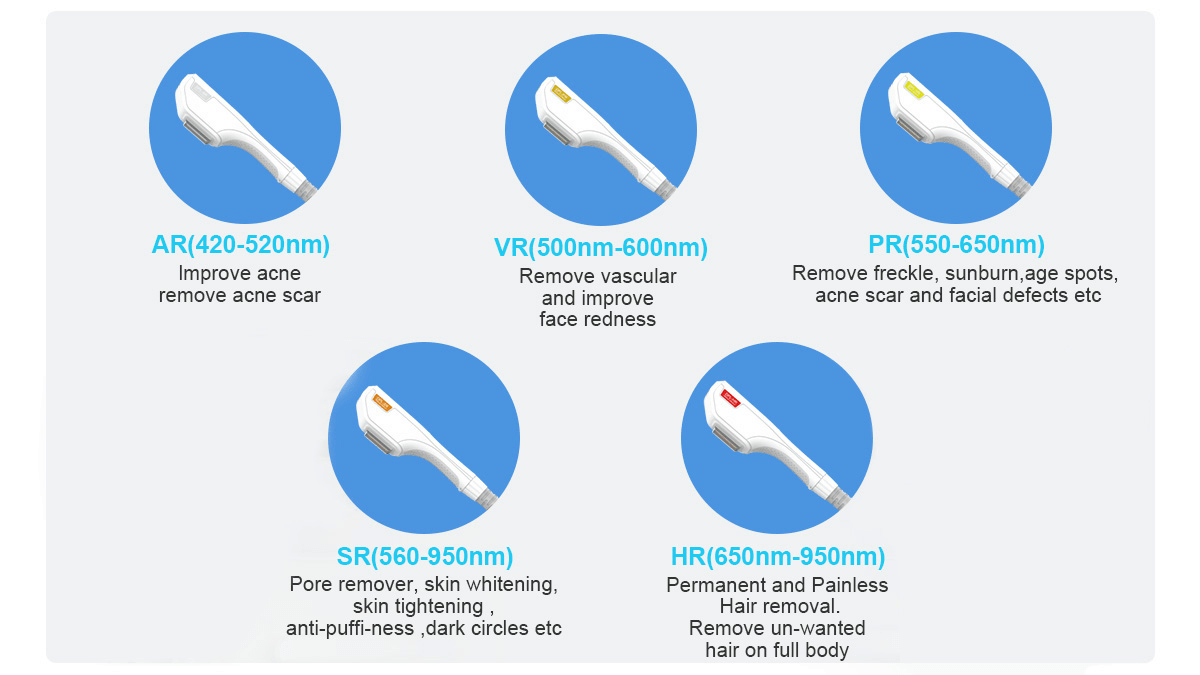

Applicators
-AR ( 420nm – 520nm) Improve acne
-VR ( 500nm- 600nm ) Vascular removal
-PR ( 550nm – 650nm) Freckle Removal
-SR ( 560nm- 950nm ) Skin Rejuvenation
-HR ( 650nm – 950nm ) Hair Removal

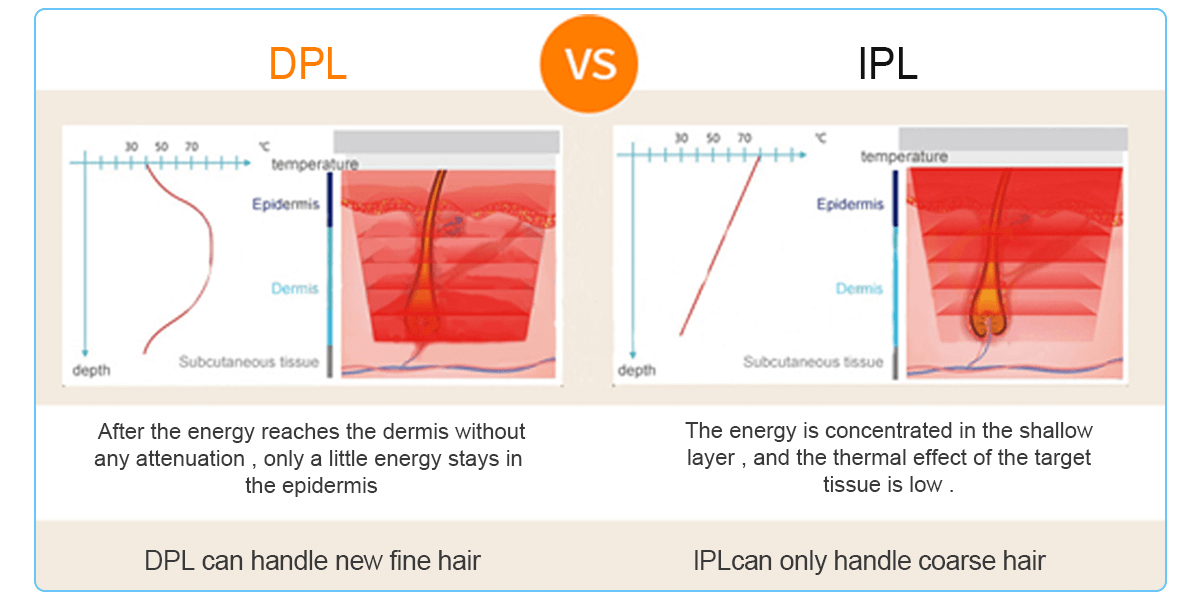

DPL VS IPL
Type:DPL
Pulse Duration:Narrow Spectrum 100nm(550-650nm)
Melanin absorption:more than 2-5 times of IPL
Vascular absorption:3 times higher than IPL
treatment times:2-3 times
Effect:The clearance rate is more than 90%, which will further dilute the cases that have been treated with IPL and have no subsequent changes.
Comfort:Low total energy, Comfort is significantly higher than IPL
Type:IPL
Pulse Duration:wide spectrum(560-950nm)
Melanin absorption:Low
Vascular absorption:Low
treatment times:4-6 times
Effect:The clearance rate is about 70%, leaving a light mark
Comfort:High total energy, Pain, low comfort
Specification:
Specification of DPL
-Wave Length:
- HR:650-950nm PR: 550-650nm
Optional:( SR: 560-950nm VR: 500-600nm, AR:420-520nm )
-Fluence : HR 5-30J/cm2 SR: 5-25J/cm2 (PR, VR, AR)
-Frequency : HR1-8Hz SR1-3Hz(PR, VR, AR)
-RF power : 1-30W
-Input Power :4000W
-Power Source : Pure Sapphire
-Lamp :German Imported lamp
-Spot Size : 10*40mm for(SR,VR,AR,PR) 15*50mm for HR
- Contact cooling temperature: Max -10℃
- Cooling System: Built in water cooling +semi conductor cooling +air cooling
- LCD Screen: 10.4 inch true color touch screen control
-package size : 89*59*62cm
-Weight : 57kg
