In 2022 the technological change of the C-arms for the operating room begins: the era of intensifier tubes ends to make room for the new technology of digital detectors. TCA 7 meets all the requirements required to cover the widest range of applications

Its main features are the maneuverability and the dimensions reduced to the maximum to satisfy the requests of the operating room. TCA 7 is an arm with a large diameter, light and maneuverable to facilitate access to the operating field. The device is also characterized by surface finishes such as to facilitate disinfection procedures.

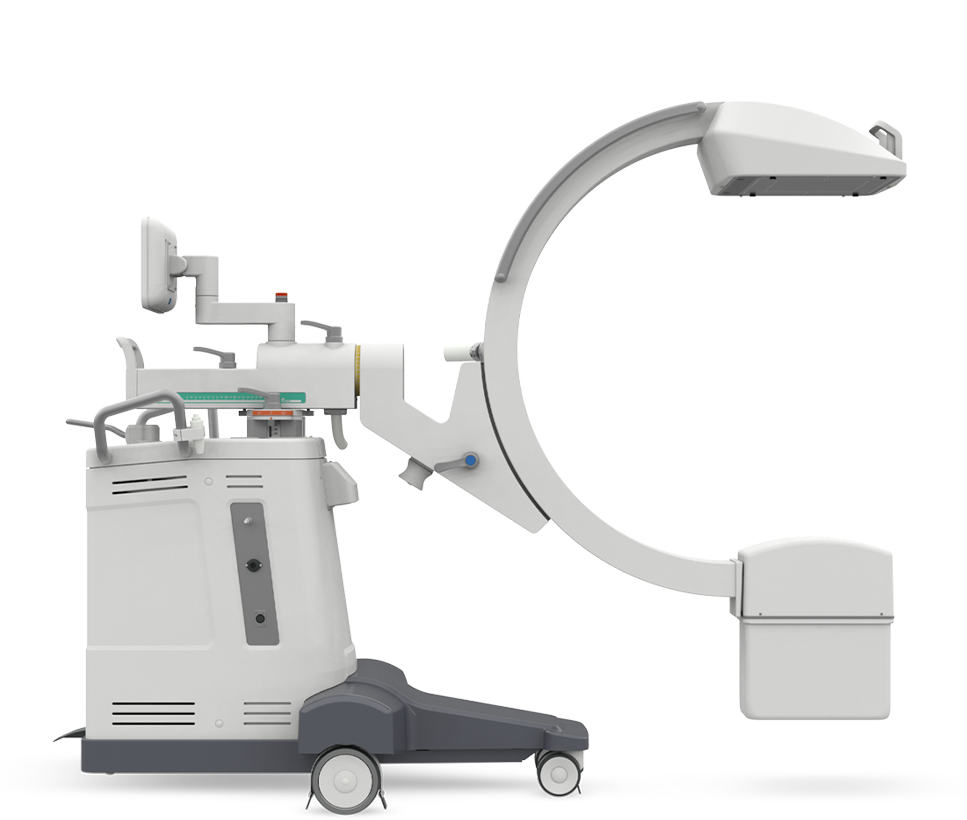

The anti-scatter grid used to reduce the effects of scattered radiation can be removed for pediatric applications. The preliminary positioning of the

C-arm is possible with a laser targeting device for the center beam identification without x-ray emissions.

B rake handle is in central position, in front of the user. The motorized vertical movemer ment is is managed by control keys on both sides

T win-wheel casters with high diameters guarantee easy The short basement allows to get closer to the maneuverability and sliding movements. operating table.

T CA7 can be equipped with 21 x 21 cm or 30 x 30 cm Flat Panell Detector and with 5 kW or 20 kW monobloc. The 20 kW power can be achieved through the Energy Storage Unit (ESU), without using batteries.

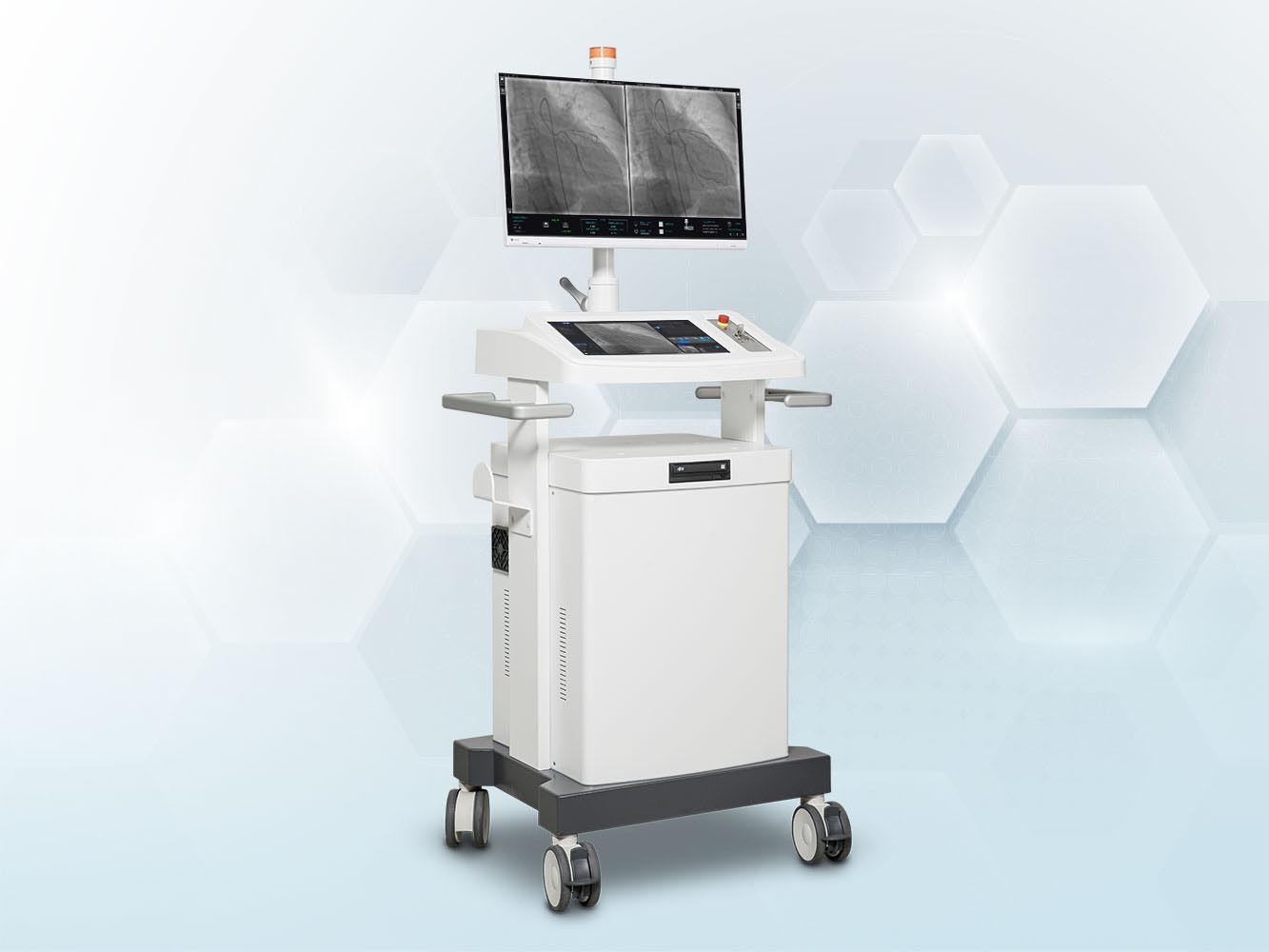

Motorized fitters for pediatric applications are integrated in the collimator. The monitor trolley is ergonomic, lightweight and compact. In TCA7 compact version the 27" touchscreen orientable monitor is installed directly on the C-arm and doesn't require external trolley within sterile area.

The small footprint and width allow easy access through hospital doors while the large C-Arm and the wide orbital rotation simplify patient tation simplify p implify patient positioning. Manual movements vements are identified by a color code for a better recognition.

The smooth surface guarantees easy cleaning.

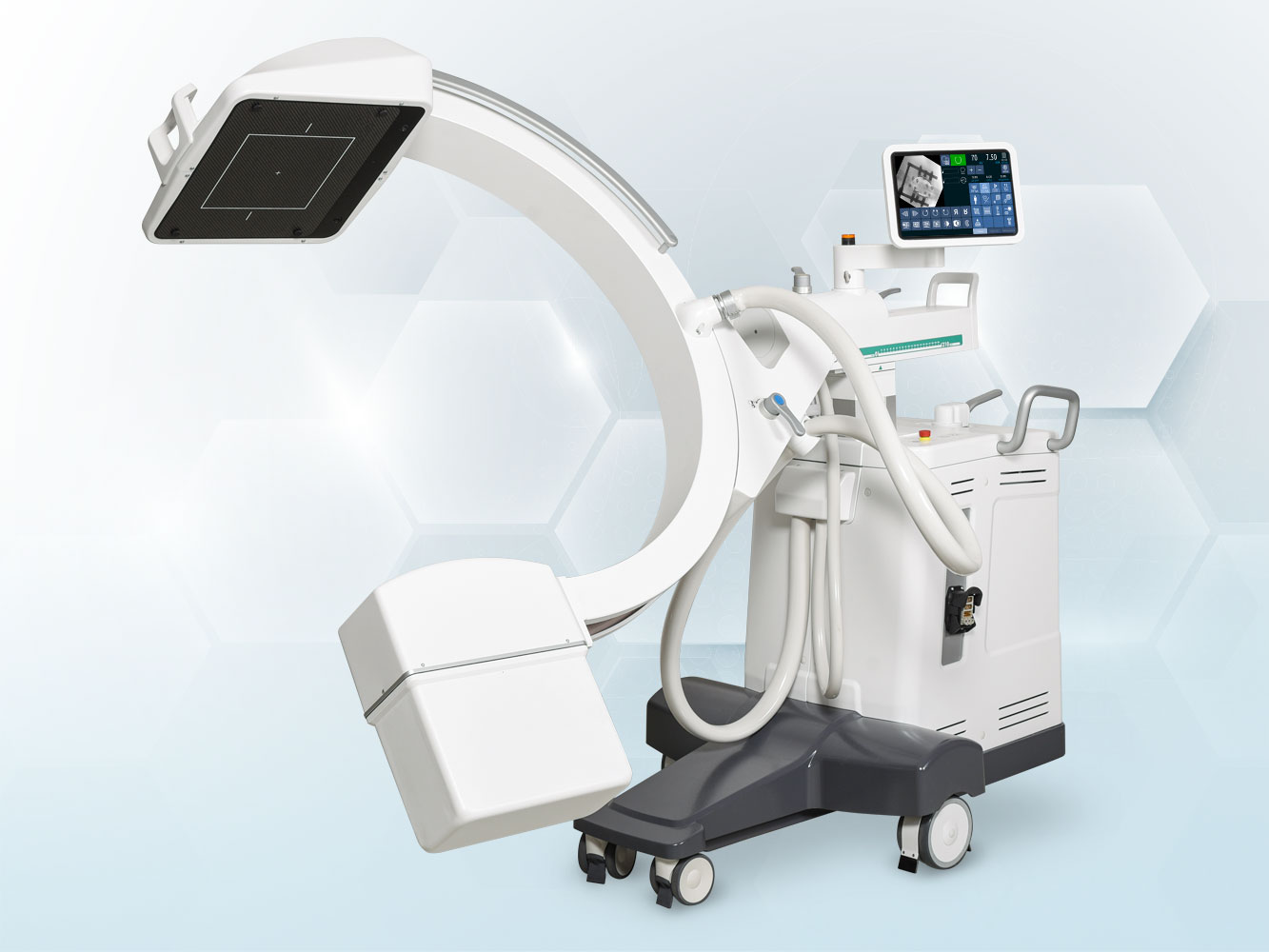

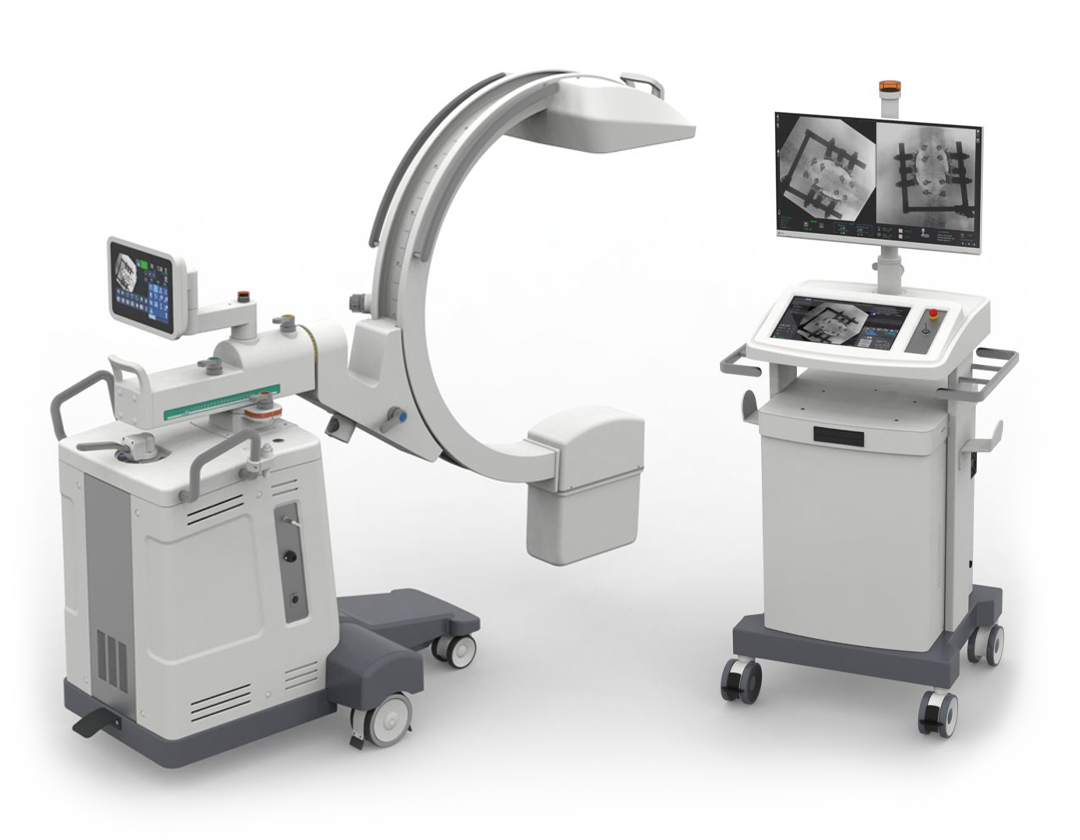

Highly optimized mobile C-arm system with FPD for surgical fluoroscopy

Control panel touch-screen monitor on C-arm for managing operating parameters. Easy positioning is guaranteed by 90° rotation and 20° inclination.

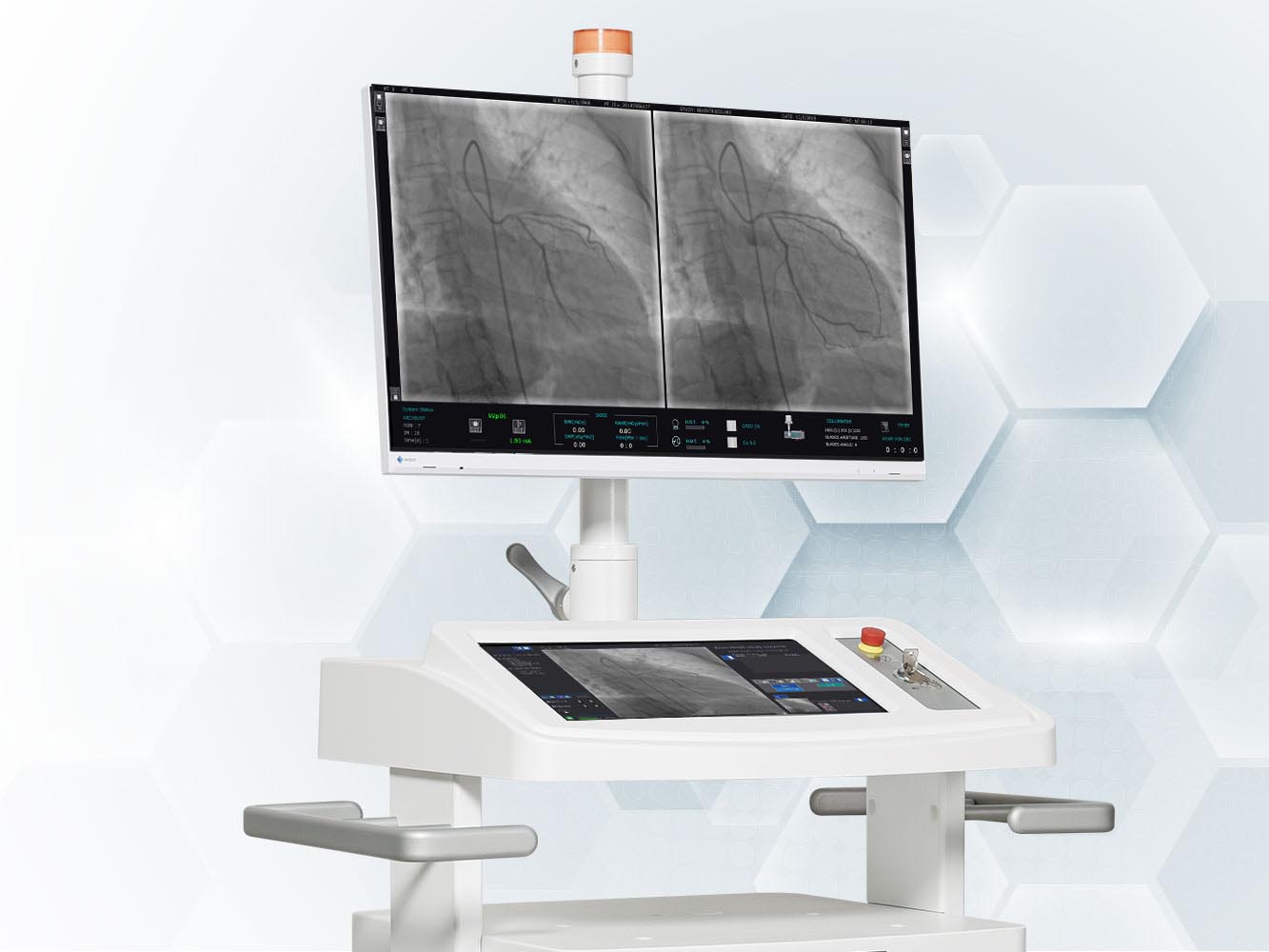

The 27" monitor is digitally split in live and reference view and can be rotated of 180° without hindering the selection of commands on the operator panel.

A 15.6" touch-screen panel allows the operator to set all the required parameters, to manage the images and to adjust the software functions in real-time.

Full DICOM 3.0 connectivity with CD/DVD and USB for image exporting and up to 250,000 image storage capacity on local archive.
