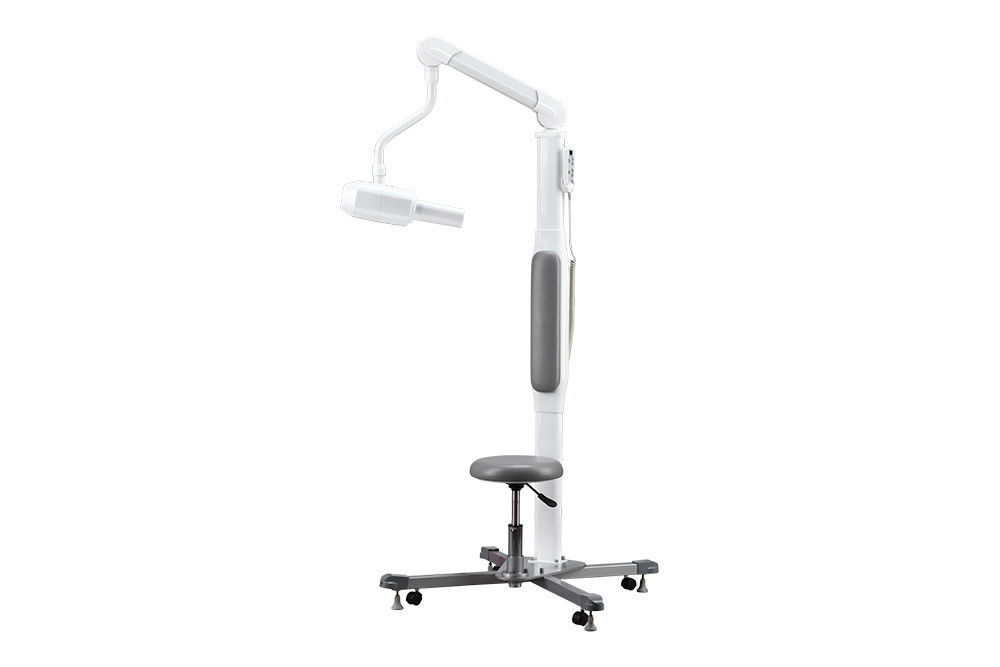

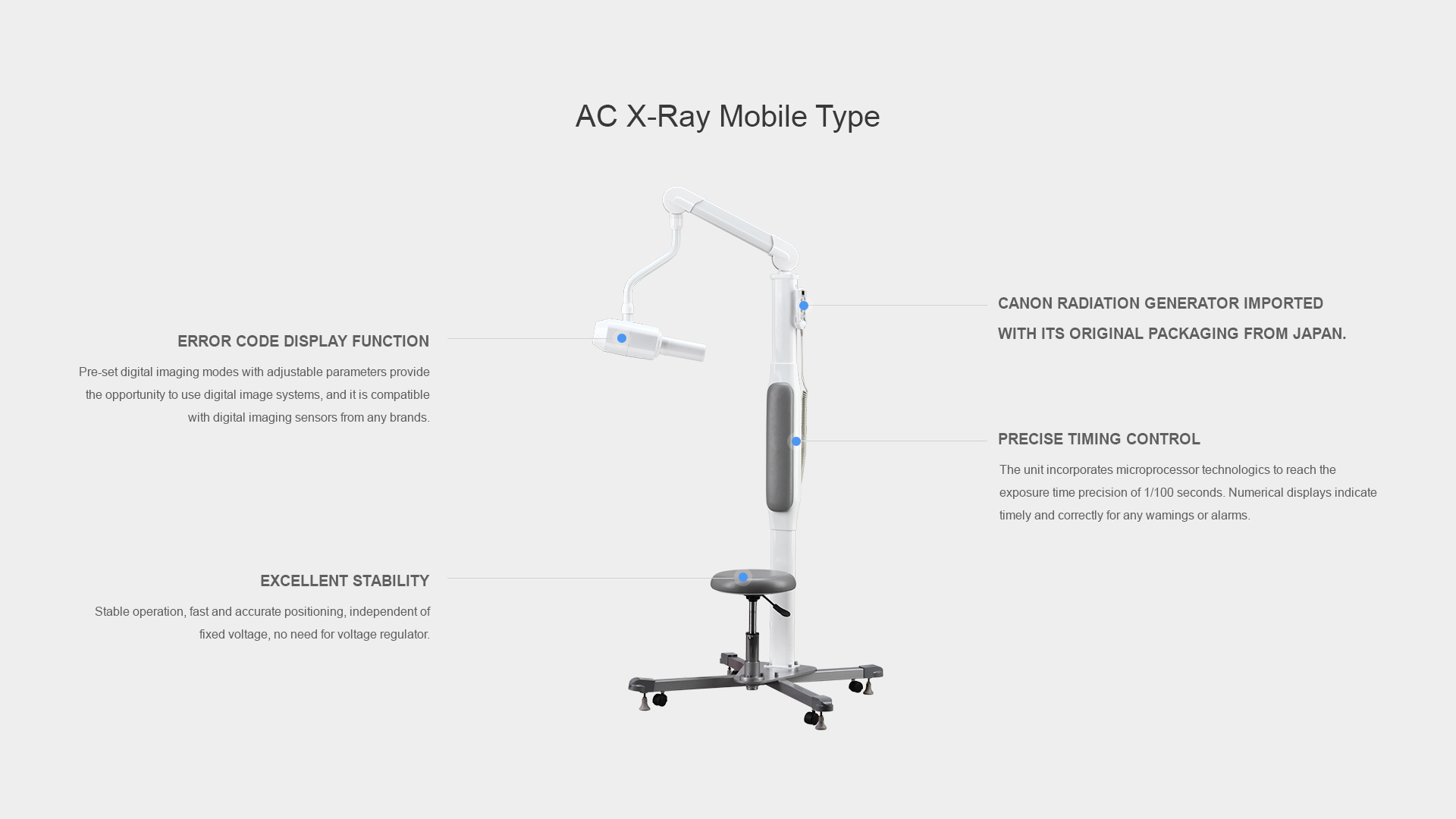

RAY68(M)
AC X-Ray Mobile Type
ERROR CODE DISPLAY FUNCTION
Pre-set digital imaging modes with adjustable parameters provide the opportunity to use digital image systems, and it is compatible with digital imaging sensors from any brands.
EXCELLENT STABILITY
Stable operation, fast and accurate positioning, independent of fixed voltage, no need for voltage regulator.
Finish update:
CANON RADIATION GENERATOR IMPORTED WITH ITS ORIGINAL PACKAGING FROM JAPAN.
PRECISE TIMING CONTROL
The unit incorporates microprocessor technologics to reach the exposure time precision of 1/100 seconds. Numerical displays indicate timely and correctly for any wamings or alarms.
Product Parameters
-Parameters Instruction
-Power Voltage:AC 230V
-Bulb Tube: Canon (Toshiba)
-Duty Cycle:1/30
-Frequency:50/60Hz
-Ray Focal Spot:0.7mm
-Half Value Layer:70Kv 1 .6mm Al
-Maximum Power:900VA
-Bulb Tube Voltage:70Kv±10%
-Inherent Filtration:≥2.1mm Al
-Electricity:4A
-Anode Current:7mA±20%
-Leakage Radiation:1meter≤ 0.14mGy/h
-Fuse:6 .3A
-Anode Angle:16°
-Time Of Exposure:0.06—2.0s
