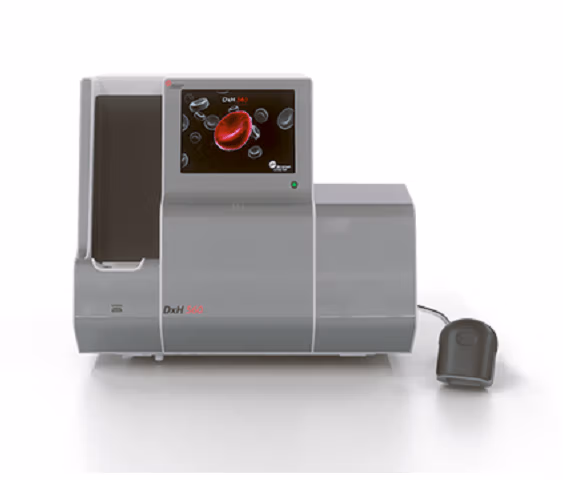

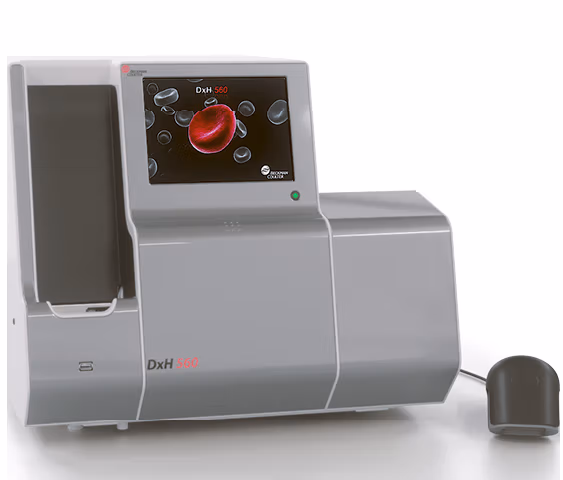

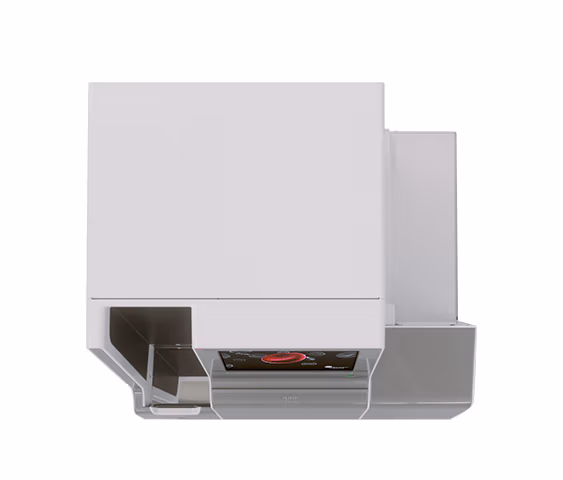

Clinical DxH 560 AL Hematology Analyzer
Small and mighty from a family with proven reliability and comprehensive data management all in a compact size.
Save time and resources, eliminate manual intervention and deliver high-quality results, even for difficult-draw patient groups, with the DxH 560 AL Hematology Analyzer.
*Specifications:
-Mode of Operation : Autoloader, 50 tube continuous feed capacity, open-tube mode
-Sample Volume : 17 μL of venous or micro-collected whole blood
Throughput:55 closed-tube samples per hour, 60 open-tube samples per hour
Menu/Test Parameters:WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, LY%, LY#, MO%, MO#, NE%, NE#, EO%, EO#, BA%, BA#
-RUO Parameters : IMM%, IMM#, LHD, MAF, PCT,PDW
-Data Storage : 30,000 patient results, including graphics, flags, codes and messages
-QC Package : 12 control files, each with a maximum of 150 runs, LJ plots, XB, XM and eIQAP with QC auto rerun
-User Interface : Integrated 8.4 inch high resolution color touch screen; Handheld barcode
-Power Requirements : 100–240 VAC 50–60 Hz / Single phase with ground Less than 120W
-Carryover : <1.00% for WBC, RBC, HGB, PLT and 5-part differential
-Ambient Temp/Altitude :18–32°C (64.4–89.6°F) / Up to 3,000 meters (9,842 feet)
-Humidity : 80% relative humidity (non-condensing) at 32°C (89.6°F)
-Altitude : Up to 3,000 meters (9,843 feet)
-External Storage : Supports USB 2.0 (five ports)
-LIS : Bidirectional interface supports Ethernet communication via RJ45 and Serial RS-232 communication
-Printer : Optional USB printer; laser or ink jet
-Languages : Czech, English, French, German, Iberian Portuguese, Italian, Japanese, Romanian, Spanish, Russian
-Weight and Dimensions : WIDTH 500 mm (19.7 in.) / HEIGHT 440 mm (17.3 in.) / DEPTH 460 mm (18.1 in.) / WEIGHT 22.0 kg (48.5 lbs.)
