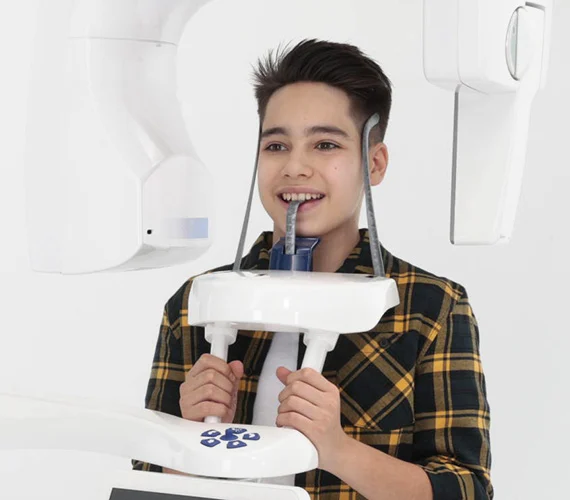

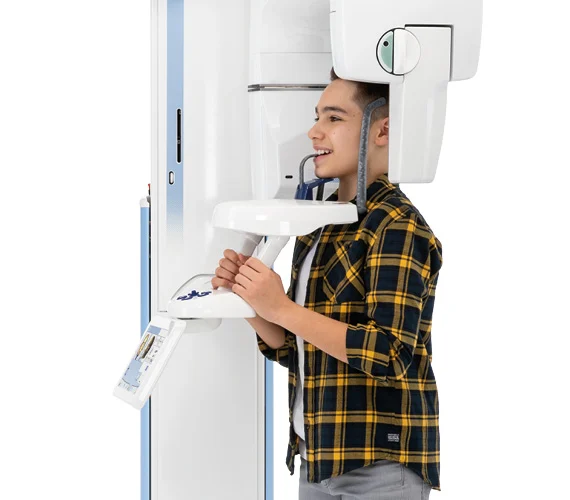

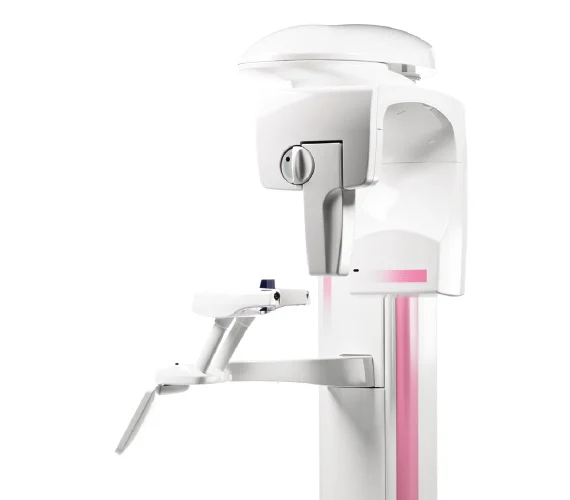

The two-joint (SCARA2) Planmeca ProMax 2D S2 panoramic dental imaging unit includes basic programs for panoramic, extraoral bitewing, TMJ and sinus imaging.
✔ Panoramic imaging
✔ Cephalometric imaging, scanning

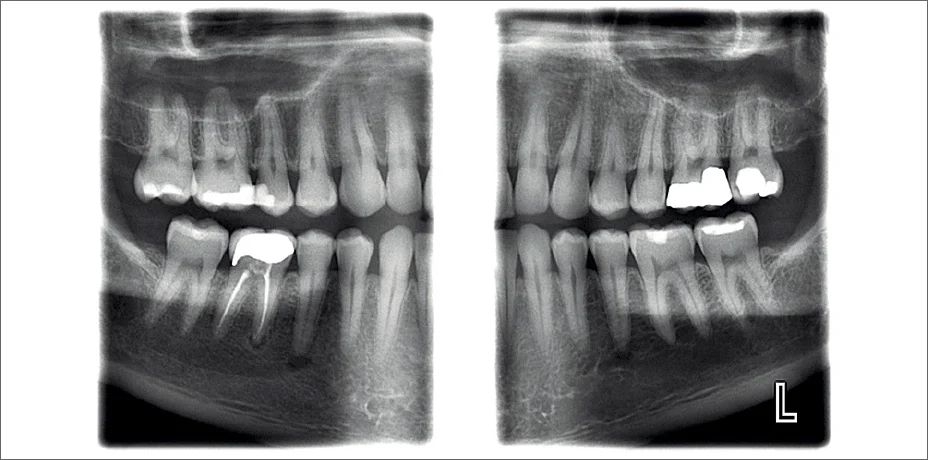

✔ Extraoral bitewing

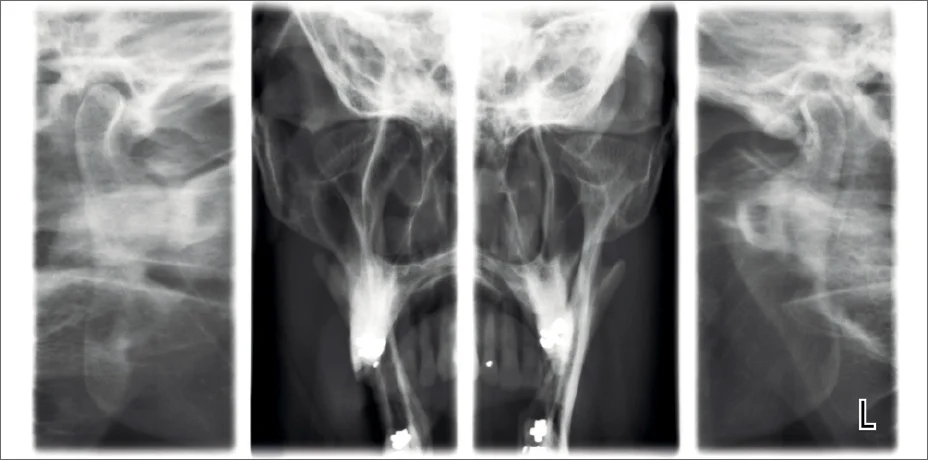

✔ TMJ imaging
✔ Sinus imaging
✔ Child mode
✔ Robotic technology, two-joint model (SCARA2)
Technical data
Generator Constant potential, resonance mode high frequency 60–80 kHz
X-ray tube D-058SBR
Focal spot size 0.5 x 0.5 mm (IEC 336)
SID 480 mm (19 in.)
Total filtration min. 2.5 mm Al eq.
Anode voltage 60–70 kV
Anode current 2–7 mA DC
Exposure time 2–10 s
Line voltage 100–132 V~ 50/60 Hz, 180–240 V~ 50 Hz
Regulation ±10 % (automatic)
Line current 8–16 A
Power uptake max:850 W
Chin rest level 95–178 cm (37.4–70 in.)
Colour White (RAL 9016)
Weight 67 kg (148 lbs)
