Product:i-Smart 300
-Features :
- Blood Gas Analyzer
-An all-in-one cartridge system including electrodes, reagents, and all other consumables
-Rapid testing time (50 seconds) and small blood volume (100 μL)
-Comes equipped with a built-in battery and is easy to move due to its lightweight
-Product Information :
-Size / Weight : 257 X 394 X 252 mm / 7.1 kg
-Operating Temperature : 15-35 °C
-Display : 8 inch color LCD (touchscreen)
-Printer : Two-inch (built-in) thermal printer
-Interface : Serial (RS-232), LAN (RJ45 Ethernet)
-Power : 100–240 VAC, 50/60 Hz
-Built-in battery : Up to 2 hours of use (lithium-ion cell)
* Cartridge :

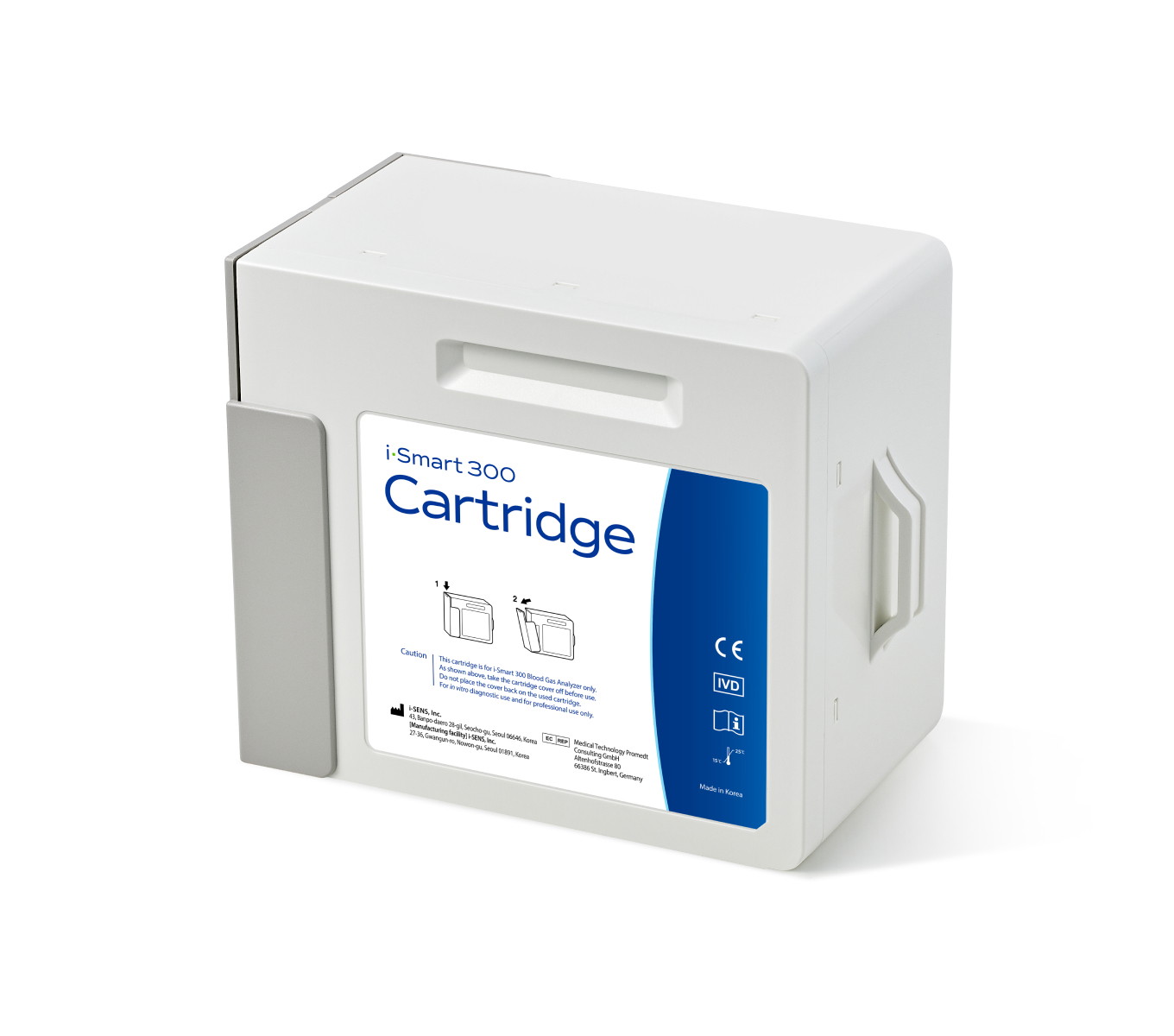

- i-Smart 300 Catridge :
-Measurement items : pH, pCO2, pO2, Na+, K+, Cl–, Ca2+, Hct
-Calculation items : pH(T), pCO2(T), pO2(T), ctCO2, cHCO3-, cHCO3-(std), BE(ecf), BE(B), ctHb, Ca2+(7.4), pO2(A-a), sO2
-Sample type and volume : Heparinized whole blood/100 μL
- Testing time : 50 seconds
-Calibration : Automatic or manual
-Cartridge specifications :
50 tests for 2 to 3 weeks
100 tests for 2 to 3 weeks
200 tests for 2 to 3 weeks
300 tests for 2 to 3 weeks
-Expiration date : 6 months from the manufacturing date
*Quality Control :

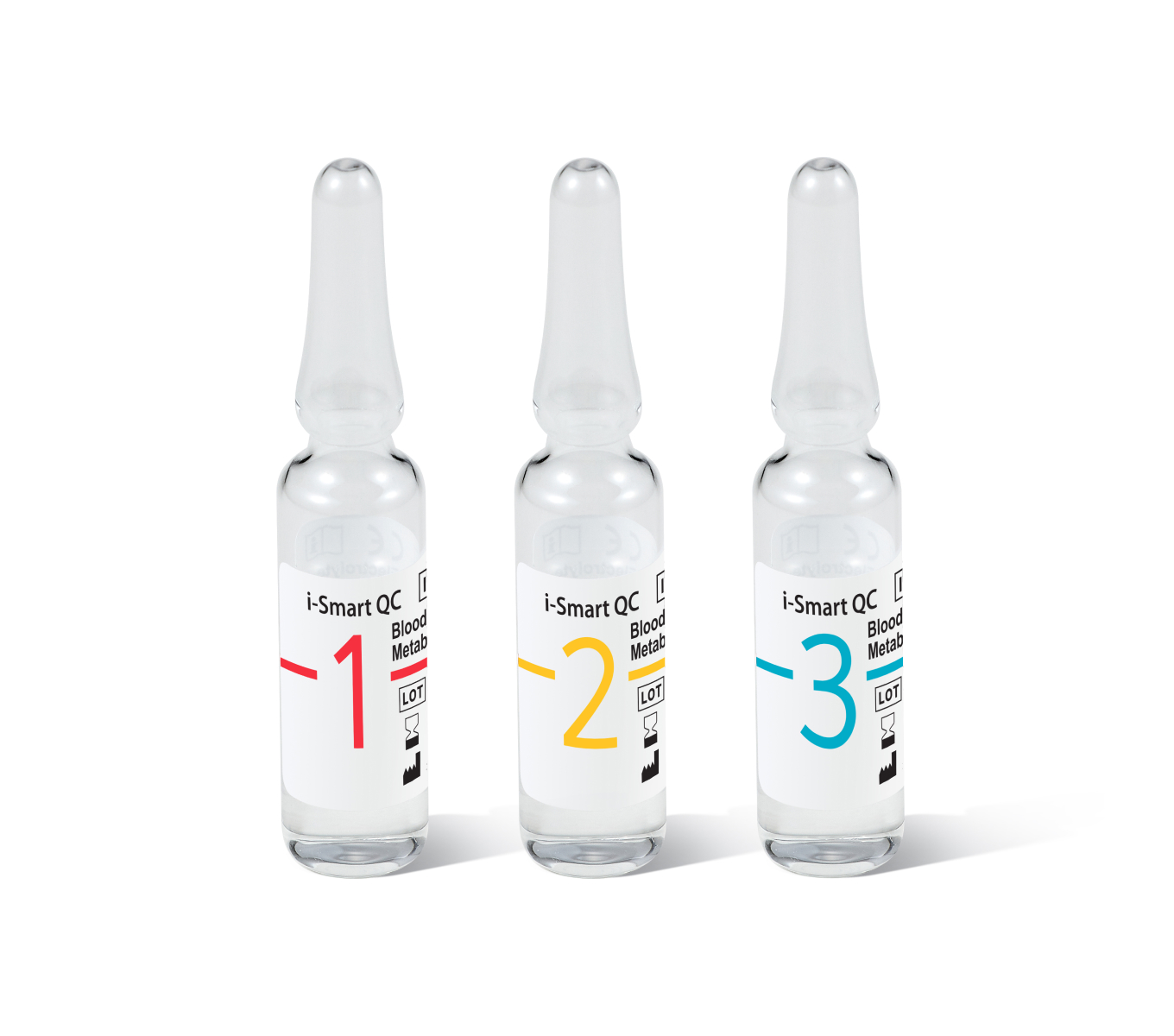

-i-Smart QC :
-Features : Blood gas Quality control material
-Use with : i-SmartCare 10, i-Smart 300, and i-Smart 300 VET Analyzers
-Level : 1, 2, 3
-Volume : 2.5 mL * 10 vials per level
