Powerful & Stable output with unique features for user conveniences. ECORAY’s high frequency inverter technology is heading to more valuable, durable and powerful to produce the high quality of images with every imaging solution.

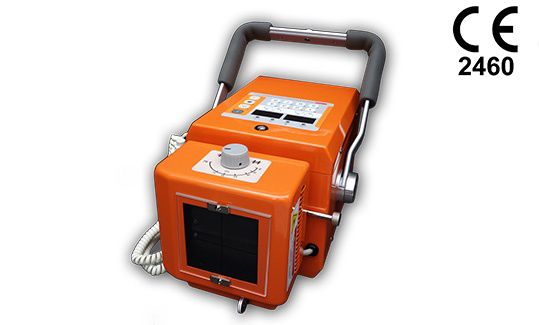

1060HF
Upgraded power with innovative concept.
· Powerful capability (3.2kW, 100kV/60mA output)
· Outstanding high quality imaging
· Ergonomic and soft OP panel layout
· Right choice for small animal and equine stifle joint radiography
· Certified MDD CE for medical use
Specification:
-Model :1060HF
-Generator :High Frequency Inverter
-HF Generator Max. Output Power :3.2kW (80Kv@40mA)
-HF Generator Max. kV / mA :100kV / 60mA
-X-ray Tube Focal Spot:2.0mm x 2.0mm
-Collimator X-ray Field Size :Max. 35cm x 35cm@66cm SID
-Collimator Lamp : 12V / 50W, Halogen Lamp
-Collimator Dual Laser : 66cm SID, Class II
-Display : kV, mAs, X-Ray, Wait, and Error LED display
-Operation Switch :
1. kV & mAs Up/Down
2. Built in dual laser & Collimator lamp ON/OFF
3. Reversible Display
4. APR memory storage
-APR :8 Memory Standard and extendable 16 Memory
-Weight :13.5kgs
-Dimension (mm) :344 x 210 x 191
-Advantage :Popular
