15.6-inch high-definition monitor for better visualization

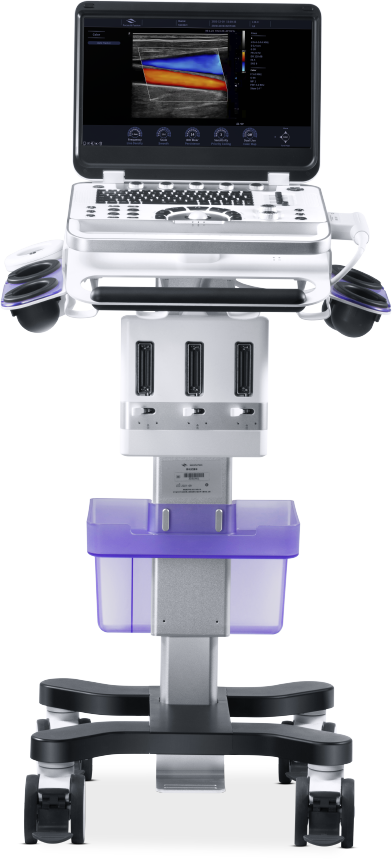

Equipped with tilting holders with angle to avoid damaging when moving the trolley

0.25m² small footprint of trolley to better fit in narrow space

For adjusting the trolley’s height with one foot stepping

Equipped with magnesium alloy shell for better protection

Compact connectors for three active transducers on trolley

Storage shelves for users to place their daily-used objects

The extended field of view displays more image information without sacrificing image quality. A convenient approach for big-size organs, especially for MSK structures. It has scanning direction and speed indications.

Pulse inversion contrast-enhanced ultrasound imaging technology can accurately extract the second harmonic of contrast microbubbles, realize contrast-enhanced imaging with high contrast-to-tissue ratio, and provide more detailed diagnosis for clinic.

Real time elastography is a new noninvasive and painless technique that can help determine the hardness of organs and other structures such as breast, thyroid. Elastic imaging provides users with dynamic visual information and displays the rigidity of organs, which is helpful for direct and quantitative diagnosis and treatment.

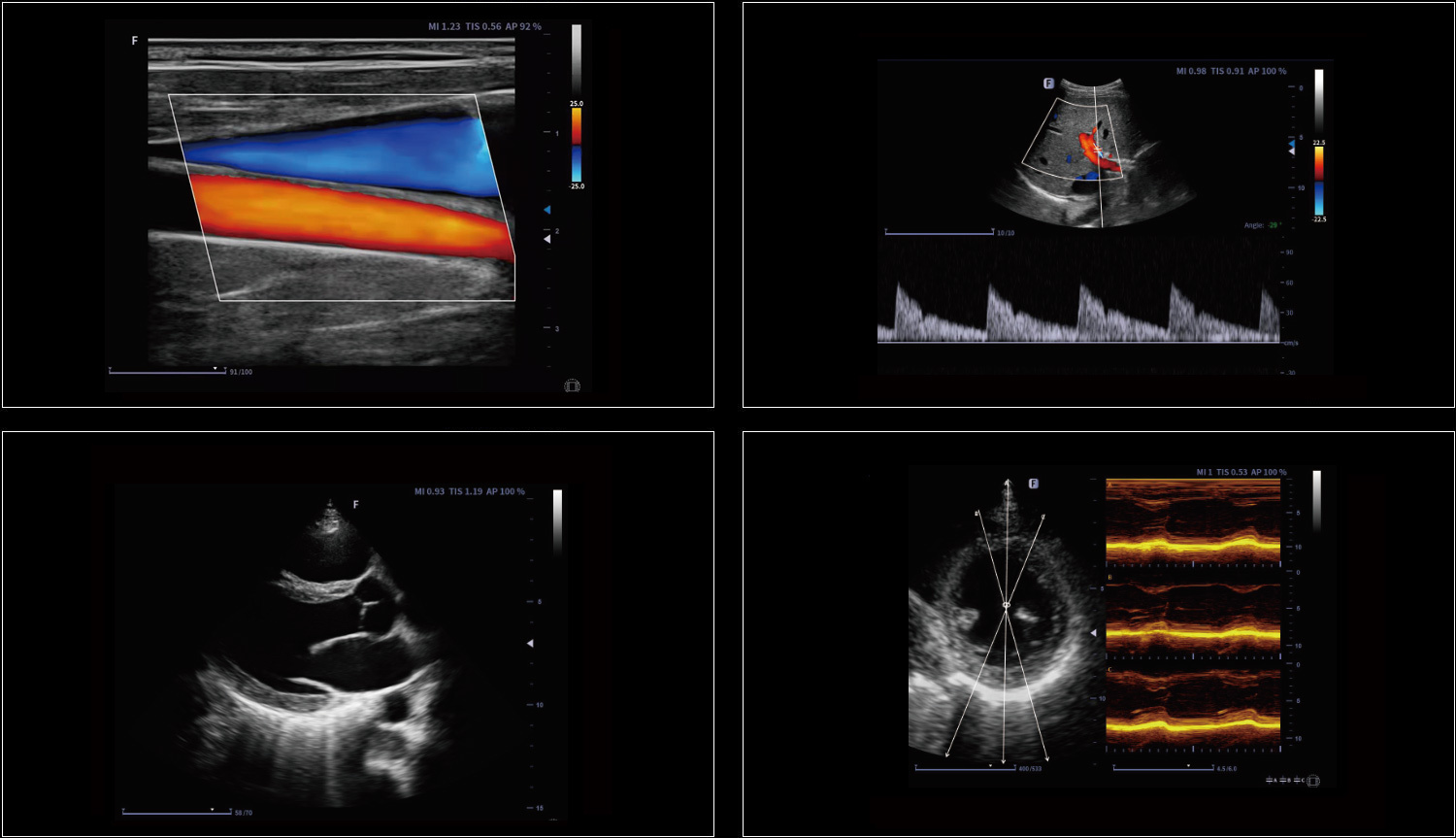

It permits the M-mode cursor to be angled in any direction on digital two-dimensional images. The three sample lines make the doctor measure three positions at the same time and each sample line can be rotated up to 360°

Curved Anatomical M-Mode (CAM) technology can show all the spatial and temporal relationship of myocardial segment movements during the cardiac cycle in the scanning sector, which provides a new measurement method to quantitatively analyze the abnormalities of segmental myocardial motion during systolic or diastolic period.

Tissue Doppler Imaging (TDI) is a robust and reproducible echocardiographic tool that employs the Doppler effect to assess muscle wall characteristics throughout the cardiac cycle including velocity, displacement, deformation, and event timings. It has permitted a quantitative assessment of both global and regional function and timing of myocardial events.

Three guiding lines to ensure accuracy and safety. Width between two outer lines can be adjusted to fit the lesion areas, and needle depth information is available.

eBiopsy+

The image of the puncture needle is enhanced by the deflection of the acoustic beam，including needle enhancement, needle tip red rendering, virtual needle passage and scale line, supporting auto steering.

Used to measure high-velocity blood flow inside the heart, obvious advantages for quantitative analysis of stenosis and regurgitation.

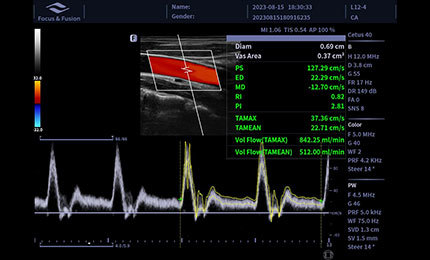

Measure the blood vessel area, the blood flow velocity could be measured by spectrum automatically, then the blood flow volume results will show.

Automatic identification and measurement of intima-media thickness. Both left and right blood vessels, anterior and posterior walls can be measured.

Quickly ROI re-locating on blood vessel by one button. Reduce doctor’s workload of frequently adjusting ROI position & angle due to different vessel location, improve efficiency

fShare

Support sending information via E-mail to computer, mobile phone, pad, etc. No software application is required on personal devices.

fAssist

Providing tutorial information regarding to abdomen, vascular, small parts, GYN, MSK, etc., including standard ultrasound image, anatomical diagram, scanning technique and tips.

Shortcut key function displays in the bottom left corner，help doctors quickly locate required functions.
