-Automated external defibrillator*
-Automated external defibrillators (AEDs):

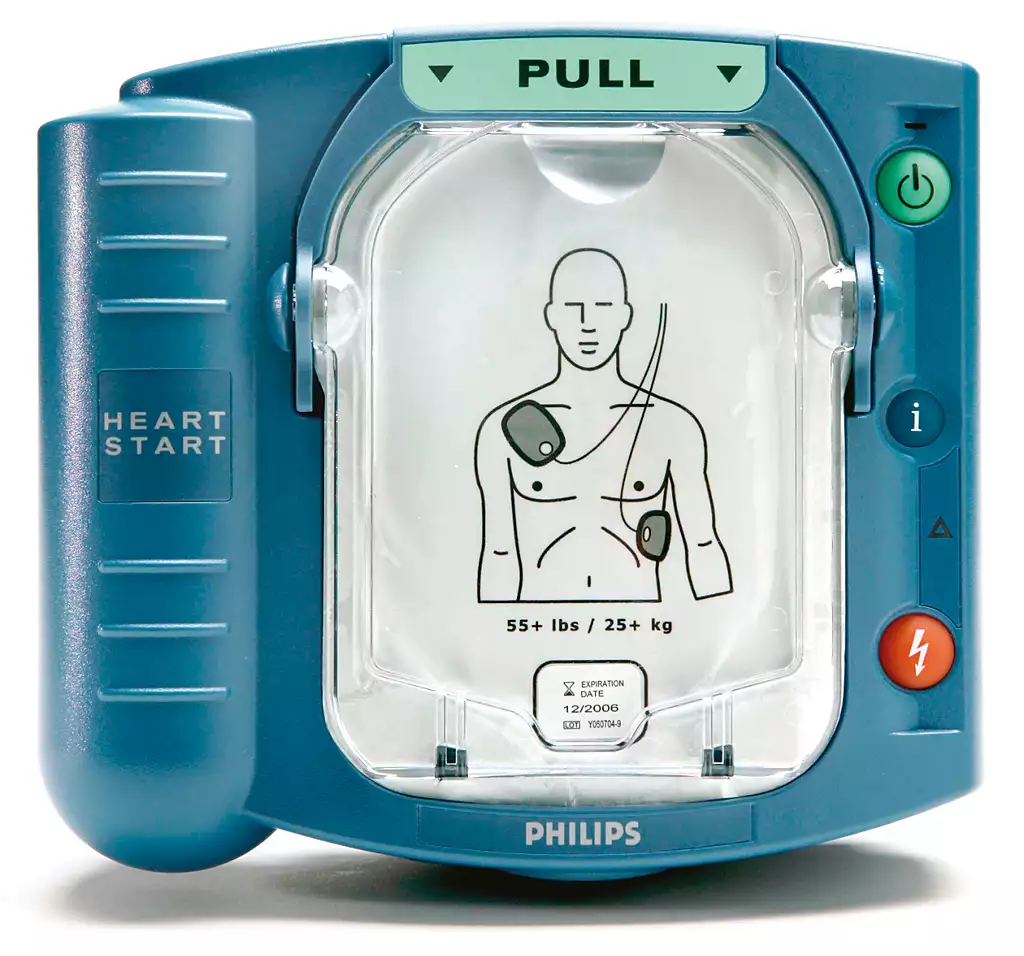

Designed for the ordinary person in the extraordinary moment, Philips HeartStart OnSite AED is ready to act and virtually ready to go. It allows anyone with little or no training to treat the most common cause of suspected sudden cardiac arrest (SCA) by delivering a shock quickly and effectively, wherever SCA happens. The OnSite automated external defibrillator provides practically real-time guidance through step-by-step voice commands from pad placement to performing CPR. When every minute counts, Philips HeartStart OnSite defibrillator is the partner by your side. Side by side. Step by step.
_Features:
_Ready to act. Ready to go: OnSite is virtually ready to go the moment it arrives. With the Ready-Pack configuration, the OnSite AED is positioned inside the carry case, with Adult SMART Pads Cartridge and battery already installed and with a spare Adult SMART pads cartridge in place. Just pull the green tab to launch the initial self-test and press the green On/Off button, which activates voice instructions and
visual icons.
_Start quickly. Treat confidently: OnSite includes features to help guide the treatment of sudden cardiac arrest with easy setup, clear voice commands and a real time metronome for performing CPR. OnSite conducts a series of automatic self-tests daily, weekly and monthly, including testing the pads, internal circuitry, waveform delivery and battery capacity so you can be assured when the moment comes, you will have a partner by your side.
_Easy as 1-2-3:We’ve equipped OnSite with integrated SMART Pads that will provide feedback to the AED so it can adapt its voice instructions to your actions and your pace. The system won’t announce the next step until you are ready. Prompts are repeated and rephrased if needed and include additional instructions to aid understanding. The system senses when the special Infant/Child SMART Pads cartridge is installed and automatically adjusts CPR instructions and shock energy to a level more appropriate for infants and children under 25 kg or 55 lbs. or 0-8 years old.
* Specifications:
Battery:
- Type: 9 volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
- Capacity : Minimum 200 shocks or 4 hours of operating time (EN60601-2-4:2003)
- Install-by Date: Battery is labeled with an install-by date of at least five years from date of manufacture
- Standby Life : Four years typical when battery is installed by the install-by date. (Will power the AED in standby state within the specified Standby Temperature range, assuming one battery insertion test and no defibrillation uses)
* Product Specifications :
- Kit Contents: Defibrillator, battery (one, pre-installed), SMART Pads (one set, pre-installed), set-up/maintenance guide with expiration date tags, owner's manual, quick reference guide
- Waveform : SMART Truncated exponential biphasic. Waveform parameters adjusted as a function of patient impedance
- Defibrillation peak current - Adult: 32 A (150 J nominal) into a 50 ohm load
- Defibrillation peak current - Pediatric : 19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge)
_Shock-to-Shock Cycle Time:Typically less than 20 seconds between shocks in a series
- Quick Shock : Able to deliver a shock after the end of a CPR interval, typically in eight seconds
- Voice Instructions: Detailed voice messages guide responder through use of the defibrillator
- CPR Guidance : Instructions for adult and infant/child CPR available at user selection
- Shock Delivery: Via adhesive pads placed on patient's bare skin as illustrated on pads
- Controls : Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button
- Indicators : Ready light, blue i-button, caution light
-SMART Pads*
- Energy delivered: Adult: nominal 150 joules into a 50 ohm load; Infant/Child: nominal 50 joules into a 50 ohm load
-How Supplied: Disposable cartridge, containing adhesive defibrillation pads, clicks into defibrillator for an integrated pads solution
-Active Surface Area: 85 cm² (13.2 in²) each
-Cable Length: Adult pads: 137 cm (54"); Infant/Child pads: 102 cm (40")
-Use-by Date:Cartridge is labeled with a use-by date of at least two years from date of manufacture

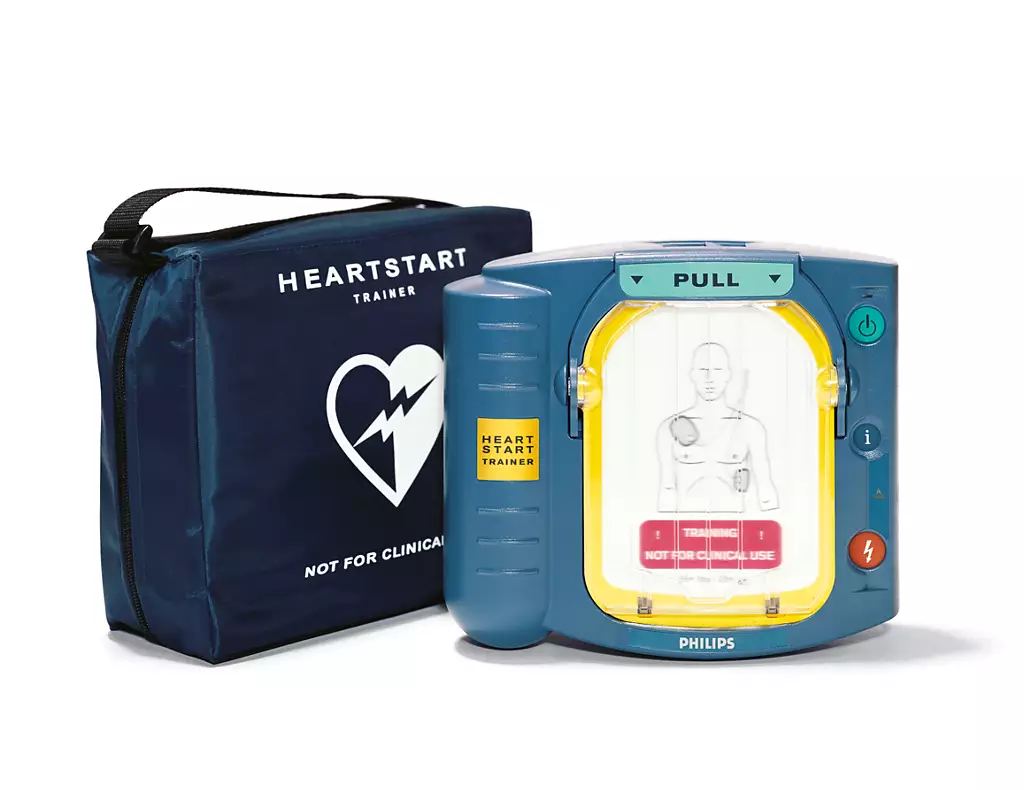

-Training pads (optional);Special pads put HeartStart OnSite into training mode and disable its energy delivery capability. Training pads feature 8 real-world training scripts. Use with training mat (included) or with adapters on manikins
-Automated and User-activated Self-tests*
-Daily Automatic Self-tests:Tests internal circuitry, waveform delivery system, pads cartridge, and battery capacity
-Pads Integrity Test: Specifically tests readiness-for-use of pads (gel moisture)
-Battery Insertion Test: Upon battery insertion, extensive automatic self-tests and user-interactive tests check device readiness
-Status Indicator; Blinking green "Ready" light indicates ready for use. Audible "chirp" indicates need for maintenance
*Data Recording and Transmission;
-Infrared; Wireless transmission of event data to a PC or Palm PDA, using the IrDA protocol
-Data Stored; First 15 minutes of ECG and the entire incident's events and analysis decisions
