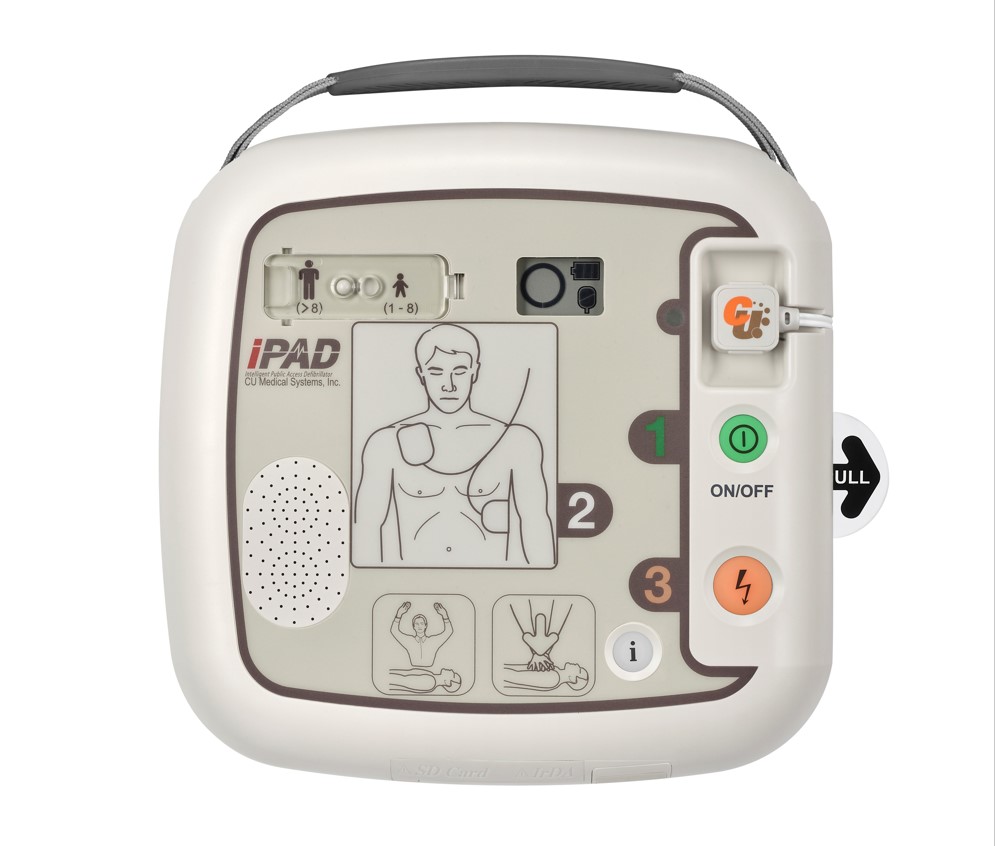

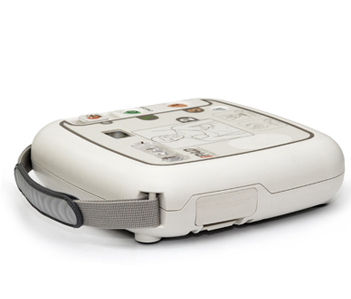

DEFIBRILLATOR
i-PAD CU-SP1
Physical
Dimension:260 x 256 x 70 mm (Width x Length x Height)
Weight:Appr. 2.4kg (Including battery pack and pads)
Defibrillator
Operating Mode:Semi-automated
Waveform:e-cube biphasic (Truncated exponential type)
Output Energy
150 J at 50 A load for adults
50 J at 50 A load for children
Self-Diagnostic Test
Auto
· Power On Self-Test, Run-time Self-Test
· Daily, Weekly, and Monthly Self-Test
Manual
Battery Pack Insertion Test (done when the user inserts the battery pack into
the battery pack compartment of the device
ECG Analysis System
Fucntion:Determines the impedance of the patient and evaluates the ECG of the
patient to determine whether it is shockable or non shockable
Impedance Range:25Ω ~ 175Ω
Control Devices, Indicators, Voice Instructions

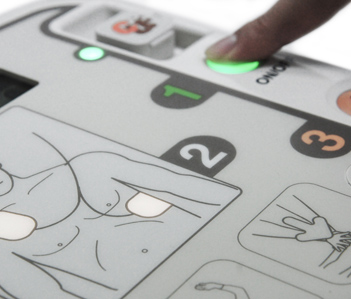

Control Devices Power Button, i-Button, Shock Button, Adult/Pediatric Selection Switch
Status LCD Displays device status, battery level and pads status
CPR Detection Indicator:Lights if CPR is detected; flashes if CPR is not detected.
Disposable Battery Pack
Battery Type:12V DC, 4.2Ah LiMnO2, Disposable
Capacity:At least 200 shocks for a new battery or 8 hours of operating time at room
Temperature
Operating:Temperature: 0℃ ~ 43℃ (32℃ ~ 109℃)
Storage:Temperature: -20℃ ~ 60℃ (-4℃ ~ 140℃)
Electrode
Adult
Electrode Area:110cm2
Cable Length:Total 120cm
Pediatric
Electrode Area:50cm2
Cable Length:Total 120cm
Data Storage and Transfer
Internal Memory Data Capacity:5 individual treatments, up to 3 hours per treatment
IrDA:For PC communications
SD Card External memory:Data may be copied from the internal memory to the SD
Card.
Accessories
• Standard Package
Device(1), Adult Pads(1), Disposable Battery(1), User's Manual(1)
• Optional Accessories
Pediactric Pads(1), SD Card(1), CU-Expert software(1), Carrying Case(1)
