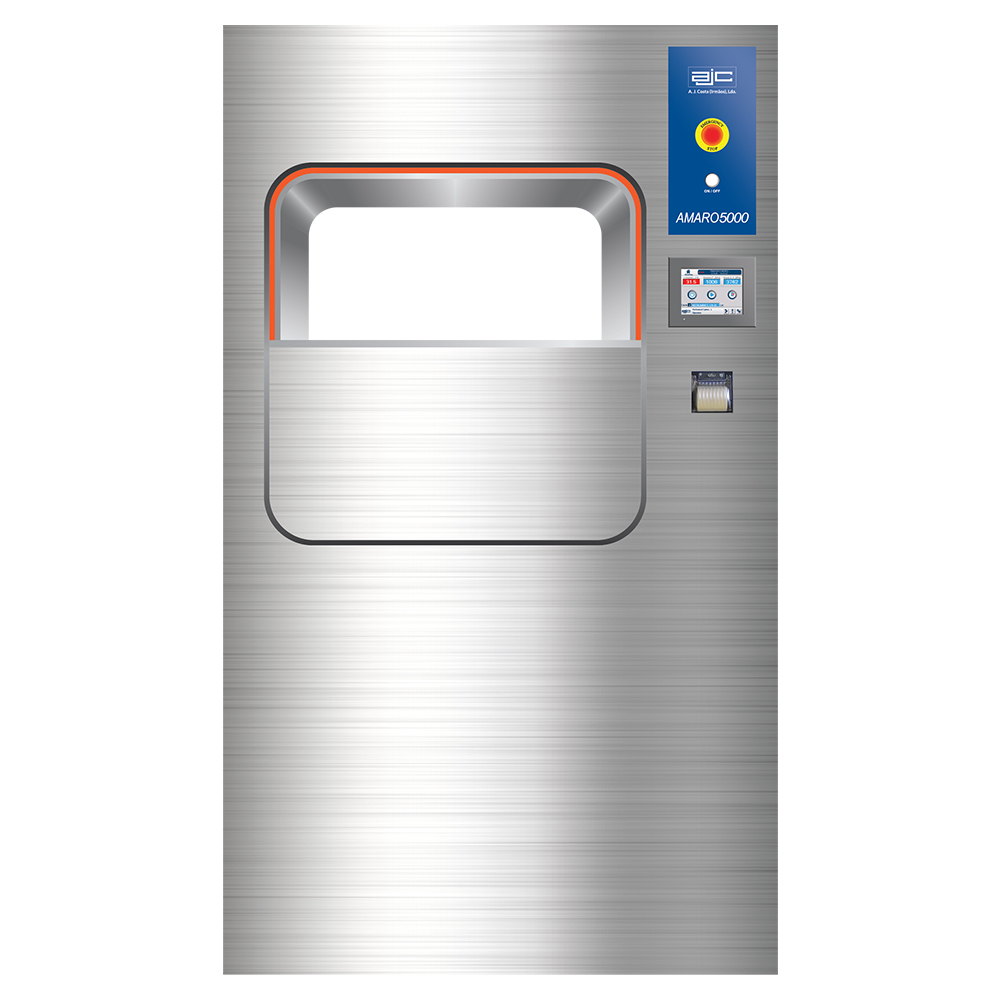

AMARO 5000 VERTICAL
They are steam sterilizers designed for hospitals and laboratories of medium to large size. The chamber and jacket are built in AISI 316L stainless steel. The doors are automatic vertical sliding and built in stainless steel AISI 316L. Maintenance with frontal or lateral access.
Features :
-Integral steam jacket;
-Easy to perceive and handle touch screen (Man-Machine interface);
-Computerized command of cycles;
-Validated cycles for typical hospitalary loads;
-Counting of sterilizations performed;
-Real-time printing of cycle parameters;
-Safety-stop system for door movement in case of obstruction;
-Safety system against door opening in mid-cycle in case of power failure;
-Incorporated energy and water saving systems;
-Extended listing with errors associated to eventual cycle-specific failures;
-Chamber electrolytic polishing;
-Chamber and jacket in AISI 316L stainless steel;
-Equipment fully built in stainless steel, free of ferrous materials
-Optionally supplied with 1 or 2 sliding doors;
-Accurate pressure and temperature sensors.
Accessories:
-Exterior loading car;
-Rolling load platform;
-Load baskets;
-Silent air compressor;
-Water softener.
External network connections:
Network Features
-ELECTRIC 3 ~ + N + G 400 V / 230 V 50 Hz 2,5 kW
-WATER Maximum pressure 6 Bar
Minimum pressure 3 Bar
-Connection 3/4” BSP
-STEAM Maximum pressure 3,5 Bar
Minimum pressure 3 Bar
Connection 3/4” BS
-PNEUMATIC Maximum pressure 7,5 Bar
-Minimum pressure 4 Bar
3/8” male connection
-DRAIN Material resistant to 100 ºC
Connection 2” BSP
- Capacity Volume : from 343 Liter to 931 liter
