Powerful & Stable output with unique features for user conveniences. ECORAY’s high frequency inverter technology is heading to more valuable, durable and powerful to produce the high quality of images with every imaging solution.
ULTRA 100

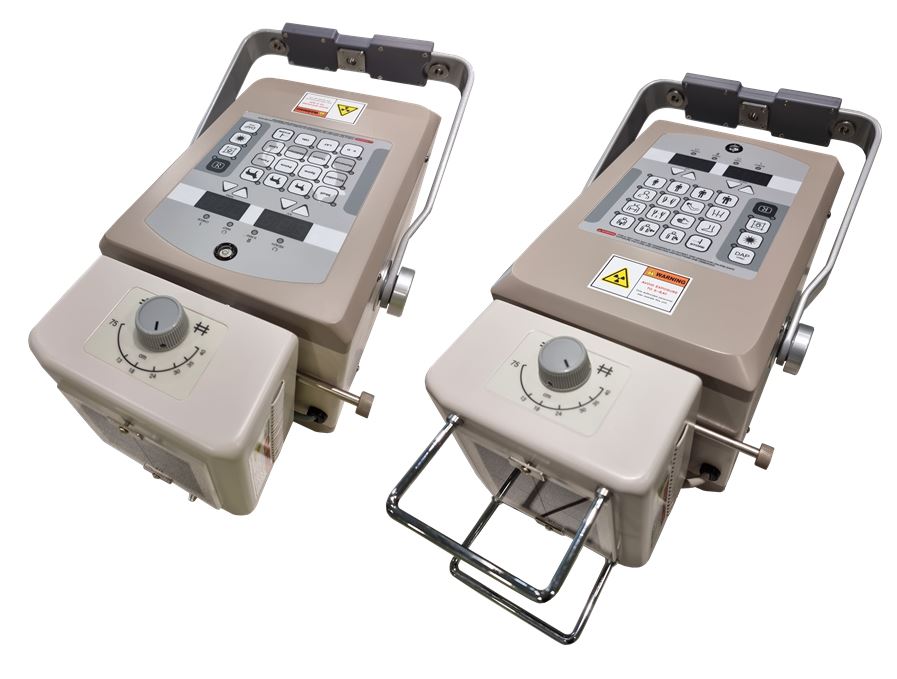

Powerful & Compact Portable X-Ray
· Powerful portable generator (5kW, 110kV/100mA output)
· Light weight
· Easy access to DR solution
· REversible LED Display
· Applicable mobile stand & Table as an optional item
· 110vac ~ 240VAC (Universal Voltage)
Technical Specifications
• -Model :1060HF
• -Generator :High Frequency Inverter
• -HF Generator Max. Output Power : 5kW (100kV@50mA)
• -HF Generator Max. kV / mA :100kV / 100mA
• -X-ray Tube Focal Spot: 1.4mm x 1.4mm
• Input Power 100-120VAC, 60Hz / 220-240VAC, 50Hz
• -Collimator X-ray Field Size :Max. 35cm x 35cm@100cm SID
• -Collimator Lamp : LED Lamp
• -Collimator Dual Laser : 100cm SID, Class I
• -Display : kV, mAs, X-Ray, Wait, and Error LED display
• -Operation Switch :
• 1. kV & mAs Up/Down
• 2. Built in dual laser & Collimator lamp ON/OFF
• 3. Reversible Display
• 4. APR memory storage
• -APR : 96 APR
• -Weight : 14kgs
• -Dimension (mm) : 375 x 247 x 208
• -Advantage : Reversible LED Display
