THERMOCARE Convenience
Table top heating module providing warmth and comfort
New born babies require a warm and cosy environment. Especially preterm babies have an extended and increased need of devotion, warmth and shelter. Therefore the examination and treatment areas should be furnished for these small patients to feel as comfortable as possible.
The baby warmer of our successful product line THERMOCARE helps to achieve that goal. The soft and warm gel pad reminds the baby of the contact with the parents' skin and has a calming and comforting effect.
The heating module's compact design allows placement on any suitable table top and an easy integration into baby changing areas without major installation.
Combined with a CERAMOTHERM radiant warmer, integral workstations will provide ambient conditions equivalent to a mobile resuscitation unit.
The comfortable conductive under-pad heating warms up even hypothermic infants quickly and efficiently. The temperature is selected in increments of 0.1°C, whilst displayed and monitored electronically. Alarms will alert in case of high or low temperature, system faults or power failure. A separate safety circuit will cut off the heating in the case of fault.
THERMOCARE Convenience

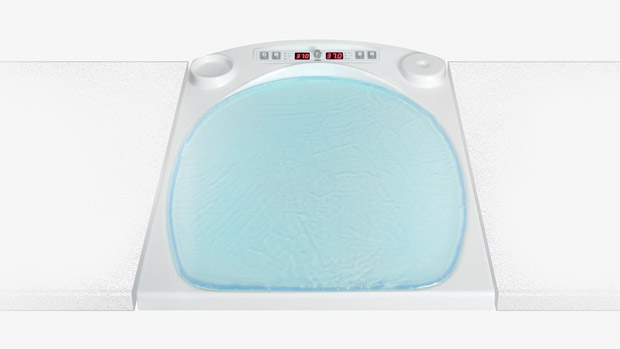

Baby warmer with gel pad, 4 rubber feet and integrated storage
Order No. WY2011
Product details

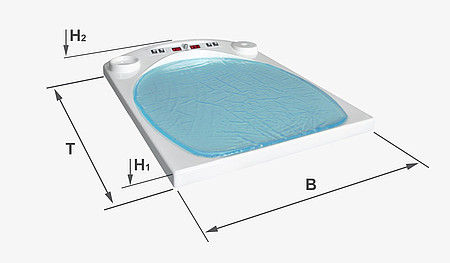

-Dimensions T= 715 mm, B= 600 mm, H1= 40 mm, H2= 100 mm
-Weight 12 kg
-Operating voltage / power supply 230 V~ / 50/60 Hz
-Max. power input 160 W / 0.7 A
-Temperature selection range, standard 35 °C to 37 °C
-Temperature selection range, extemded 30 °C to 38.5 °C
-Increments of temperature selection 0.1 °C
-Resolution of temperature selection 0.1 °C
-Display of temperature selection 30 °C to 38.5 °C
-Digital of actual temperature 0 °C to 50 °C
-Display of residual heat Down to 30 °C, then automatic switch-off
-Safety cut-off At 40.5 °C
-Protection class 1
-Type complete device B
-Type under-pad heating BF
-MDD-class IIa
